Identification
Variant

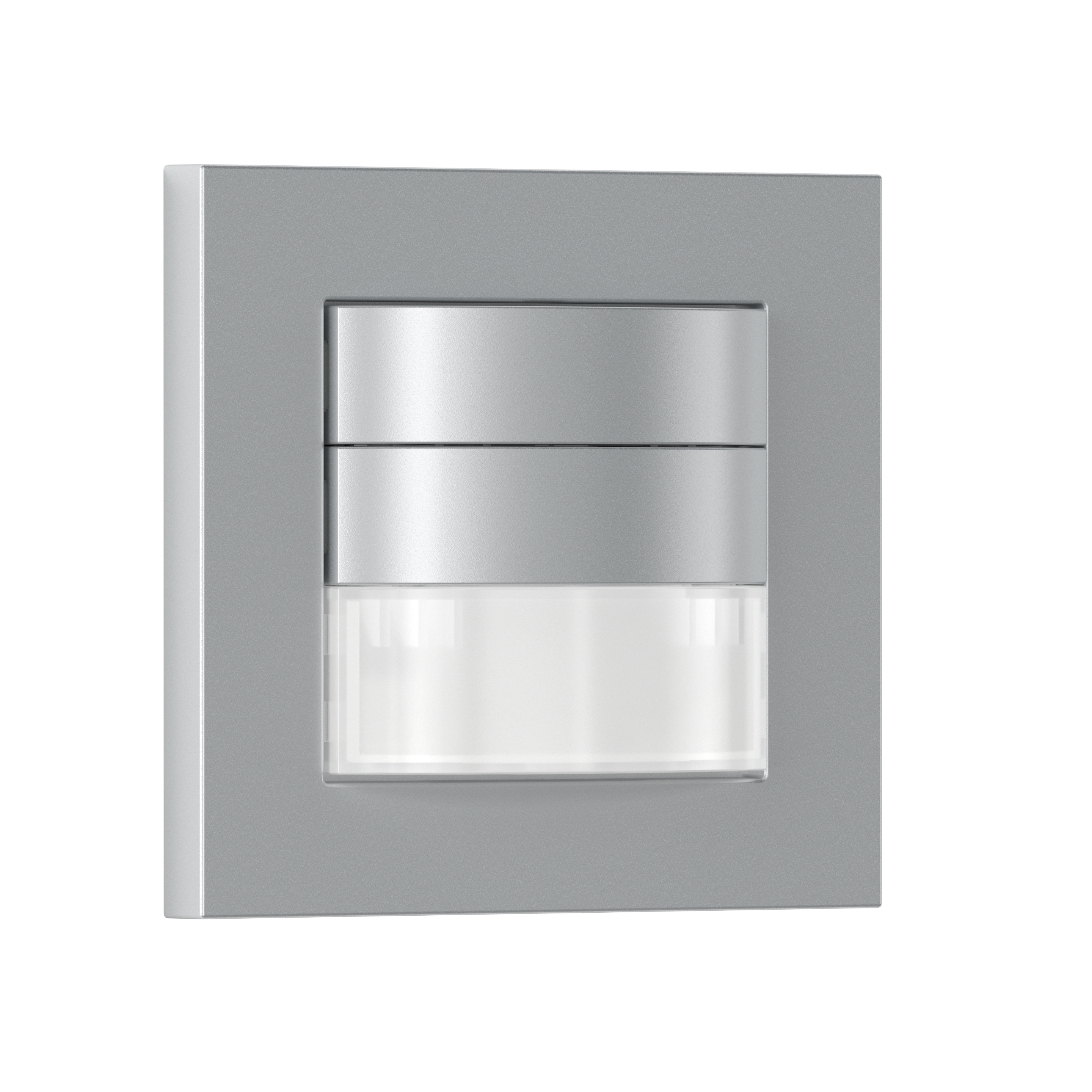

KNX - silver
Version
Presence detector
Model
KNX
Dimensions
Dimensions L × W × H
21 x 80 x 80 mm
Electrical
Supply voltage detail
KNX bus
Sensor technology
Sensor technology
High frequency
HF technology
5,8 GHz
Detection
also through glass, wood and stud walls
Detection angle
180 °
Opening angle
140 °
Sneak-under protection
Yes
Electronic scalability
Yes
Mechanical scalability
No
Radial range
r = 8 m (101 m²)
Tangential range
r = 8 m (101 m²)
Mounting height
1,20 – 2,20 m
Optimal mounting height
1,2 m
Connectivity
KNX functions
Light output 4x, Presence output, Light level, Constant-lighting control, Basic light level function, HVAC output, Integrated button, Temperature output, Humidity output
With bus coupler
No
Settings
Twilight setting
2 – 1000 lx
Time setting
60 sec – 255 min
Base light function time
Permanently ON, 1-255 min, all night
Twilight setting teach
Yes
Base light function in percent
10 – 50 %
Housing & material
Protection class (IP)
IP20
Ambient temperature
0 – 40 °C
Mounting location
wall
Application location
Indoors
Mounting type
Concealed wiring
Material
Plastic
Colour
Silver
RAL colour
9010
Scope of delivery & warranty
Manufacturer warranty
5 years
Other
Application, location, room
One-person office, corridor, aisle, side room, stairwell, wc, washroom, equipment room
