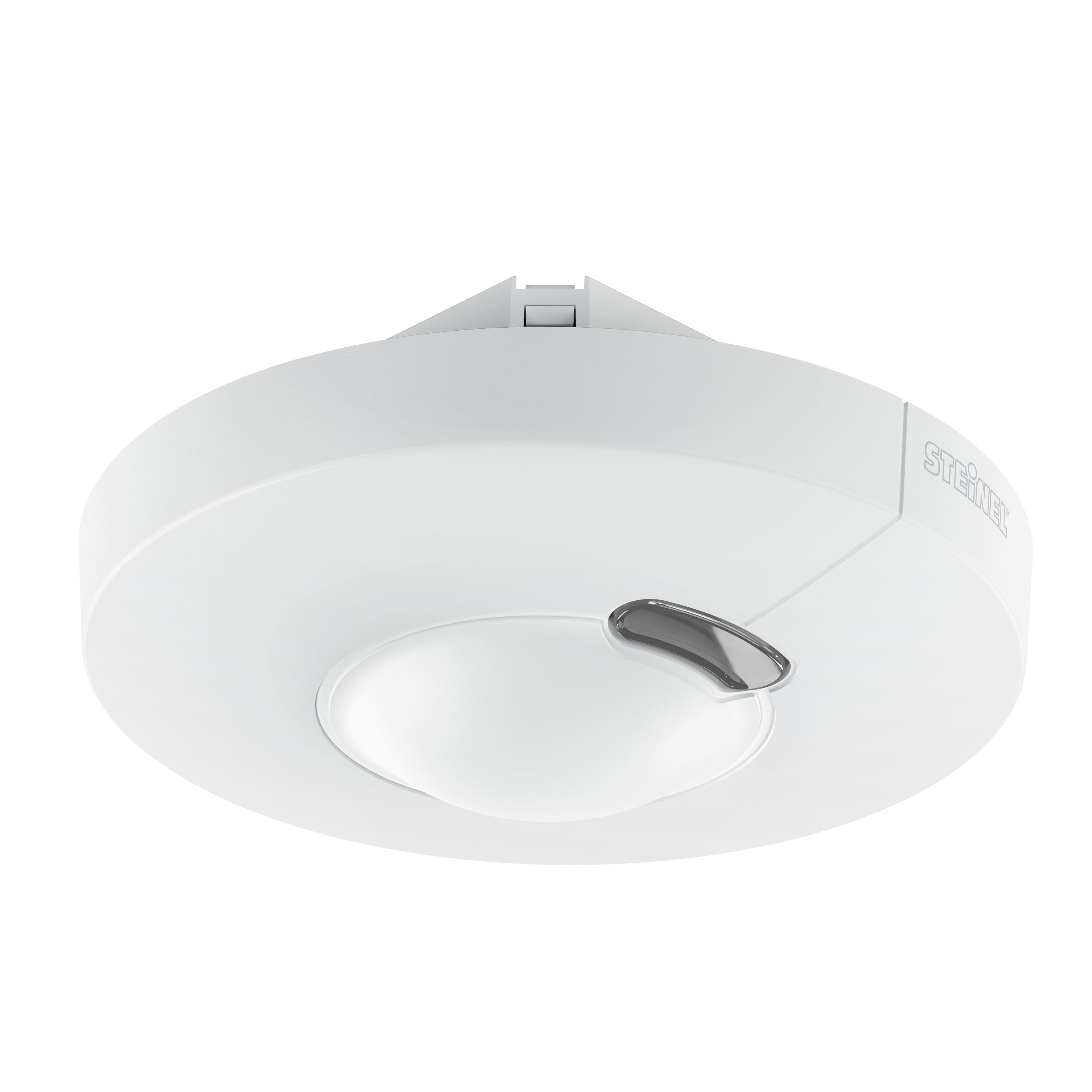

Nevalux HF 3360 COM1 - concealed, rd.

ELDAS® no. 535 940 760

EAN-No. 4007841 033682

This product is being replaced by a successor product.

Go to successor product · HF 360-2 COM1 - Concealed wiring (064433)

Perfection through and through. High-frequency motion detector HF 3360, ideal for basement corridors, stairwells, multi-storey car parks, installation height 2.8 m, 360° angle of coverage, reach 1 – 8 m (radial), detection regardless of temperature, HF-sensor technology also detects movement through glass, wood and stud walls, heavy-duty relay for high switching capacity. Available either in round or square surface-mounted and concealed version.

UV-resistant plastic
Optional remote controls

Identification

Version Motion detectors

Dimensions

Dimensions Ø × H 124 x 64 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 2000 W

Switching output 1 resistive 2000 W

Fluorescent lamps ECG 1500 W

Fluorescent lamps uncompensated 1000 VA

Fluorescent lamps series-compensated 400 VA

Fluorescent lamps parallel-compensated 400 VA

Switching output 1 low-voltage halogen lamps 2000 VA

LED lamps < 2 W 100 W

LED lamps > 2 W < 8 W 300 W

LED lamps > 8 W 600 W

Capacitive load in µF 176 µF

Switching output 1 number of LED/fluorescent lamps 8 pcs.

Sensor technology

Max. mounting height 4,00 m

Sensor technology High frequency

Transmission power < 1 mW

HF technology 5,8 GHz

Detection also through glass, wood and stud walls

Detection angle 360 °

Opening angle 180 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

Radial range Ø 8 m (50 m²)

Tangential range Ø 8 m (50 m²)

Mounting height 2,00 – 4,00 m

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Type of networking Master/master

Networking via Cable

Lighting technology

Soft light start No

Continuous light selectable, 4h

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Time setting 5 s – 15 Min.

Base light function No

Main light adjustable No

Functions Normal / test mode\nManual ON / ON-OFF

Settings via Remote control\nPotentiometers\nSmart Remote

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP20

Ambient temperature from -20 up to 50 °C

Mounting location ceiling corner wall

Application location Indoors

Mounting type Concealed wiring

Material Plastic

Application room Indoors WC / washroom function room / ancillary room multi-storey / underground car park stairwell

Colour white

RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Technical drawing

Sensor detection range

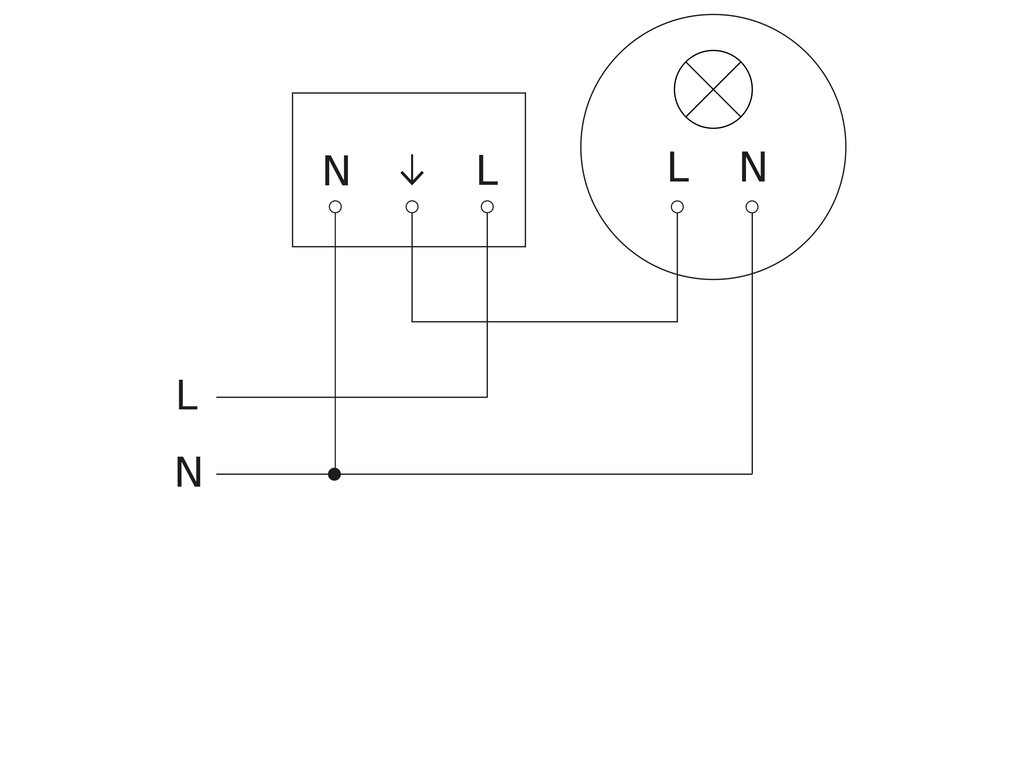

Wiring diagram 1

Master circuit diagram

Wiring diagram 2

Master/slave interconnection circuit diagram
