Nevalux HF 3360 DALI-2 Input Device - surface, rd.

ELDAS® no. 535 940 507

EAN-No. 4007841 057329

This product is being replaced by a successor product.

Go to successor product · HF 360-2 DALI-2 Input Device - surface (064297)

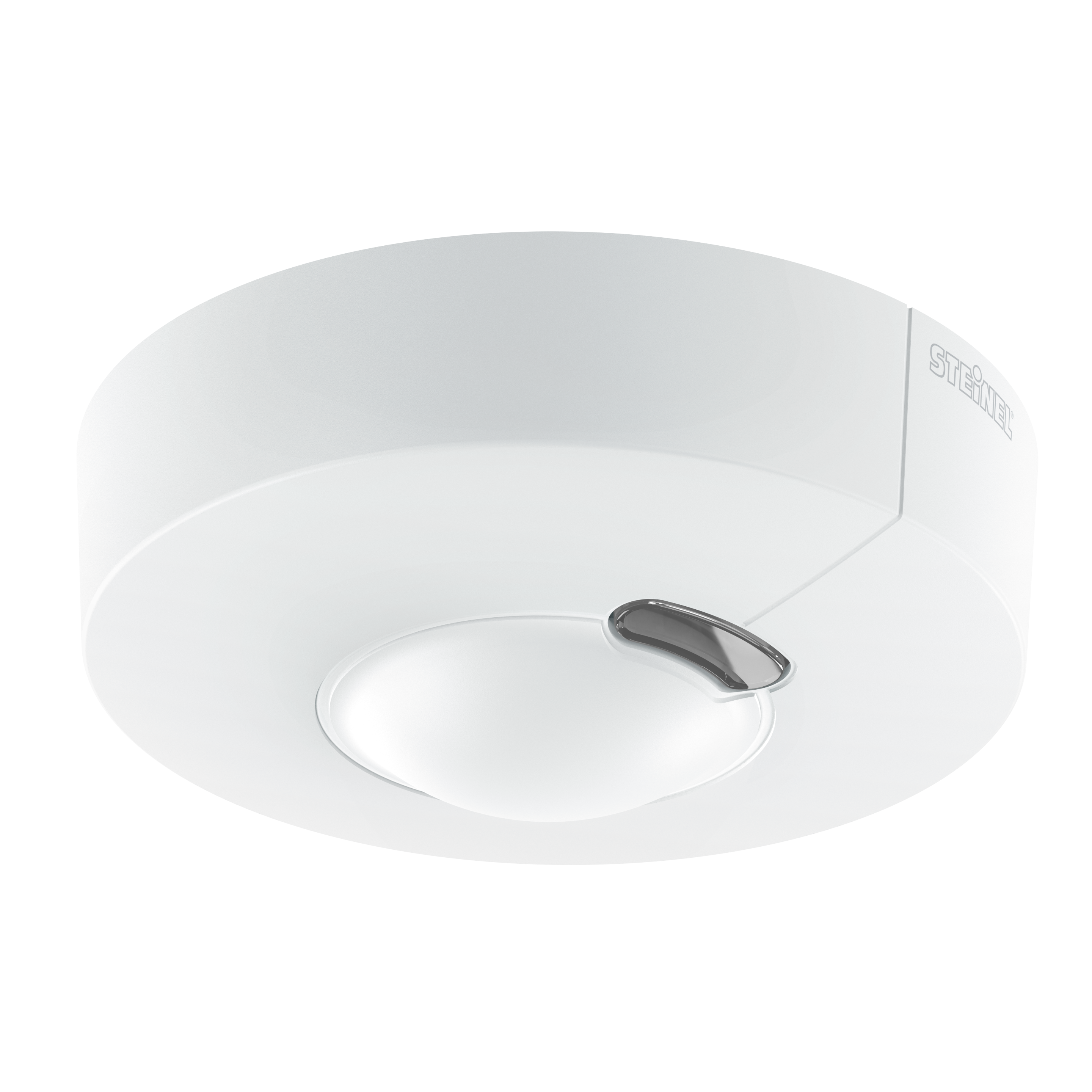

Perfection through and through. High-frequency motion detector HF 3360, ideal for basement corridors, stairwells, multi-storey car parks, installation height 2.8 m, 360° angle of coverage, reach 1 – 8 m (radial), detection regardless of temperature, HF-sensor technology also detects movement through glass, wood and stud walls. Available either in round or square surface-mounted and concealed version. DALI-2 Input Device enables sensors to communicate collected sensor data to higher-level lighting management systems (e.g. LiveLink).

UV-resistant plastic
Large terminal compartment

Identification

Version Motion detectors

Dimensions

Dimensions Ø × H 126 x 52 mm

Electrical

Mains connection 12 – 22,5 V

Own consumption 0,5 W

Supply voltage detail DALI bus

Control output DALI Addressable/slave

Sensor technology

Max. mounting height 4,00 m

Sensor technology High frequency

Transmission power < 1 mW

HF technology 5,8 GHz

With motion detector Yes

Detection also through glass, wood and stud walls

Detection angle 360 °

Opening angle 180 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

Radial range Ø 8 m (50 m²)

Tangential range Ø 8 m (50 m²)

Mounting height 2,00 – 4,00 m

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Type of networking Master/slave

Networking via DALI bus

Number of DALI participants 5

With bus coupler Yes

Lighting technology

Soft light start No

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Base light function No

Main light adjustable No

Settings via Bus

With remote control No

Twilight setting teach No

Housing & material

Protection class (IP) IP54

Ambient temperature from -20 up to 50 °C

Mounting location ceiling corner wall

Application location Indoors

Mounting type Surface wiring

Material Plastic

Application room Indoors WC / washroom function room / ancillary room multi-storey / underground car park stairwell

Colour white

RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Certificates & EPREL

Certificates DALI-2

Technical drawing

Sensor detection range

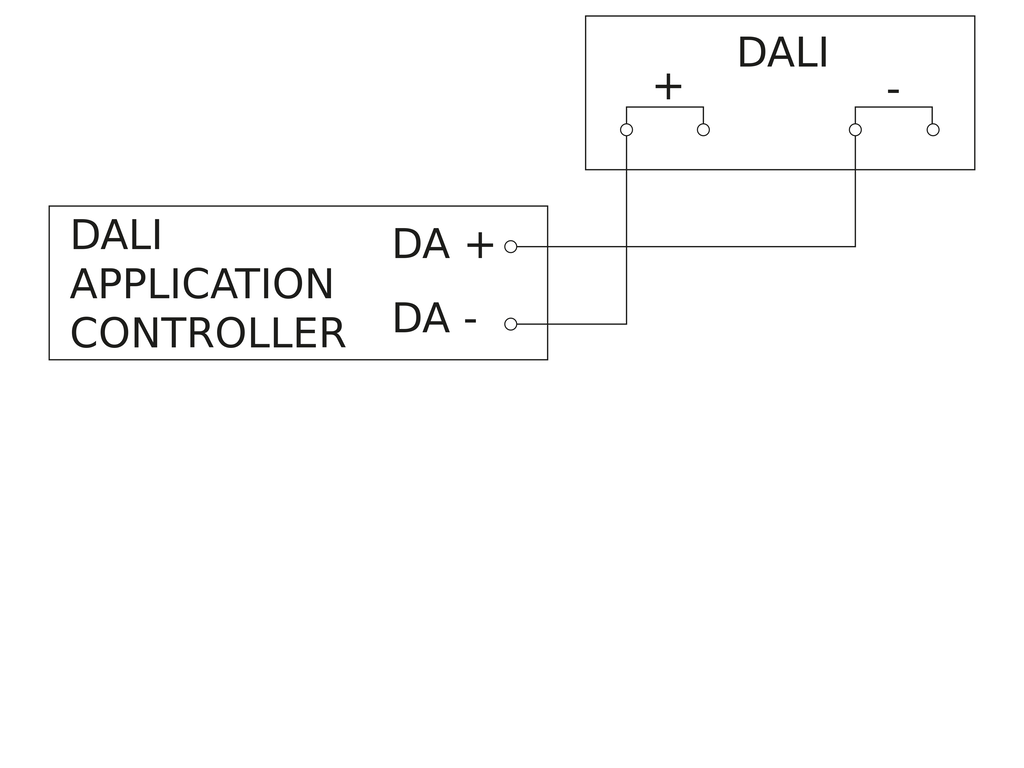

Wiring diagram 1

Circuit diagram

Data sheet User manual Declaration of conformity

Remote control Smart Remote

Item no. 009151

Black cover for HF 3360 surface, rd.

Item no. 4007841056698

Black cover for HF 3360 surface, sq.

Item no. 4007841056674
