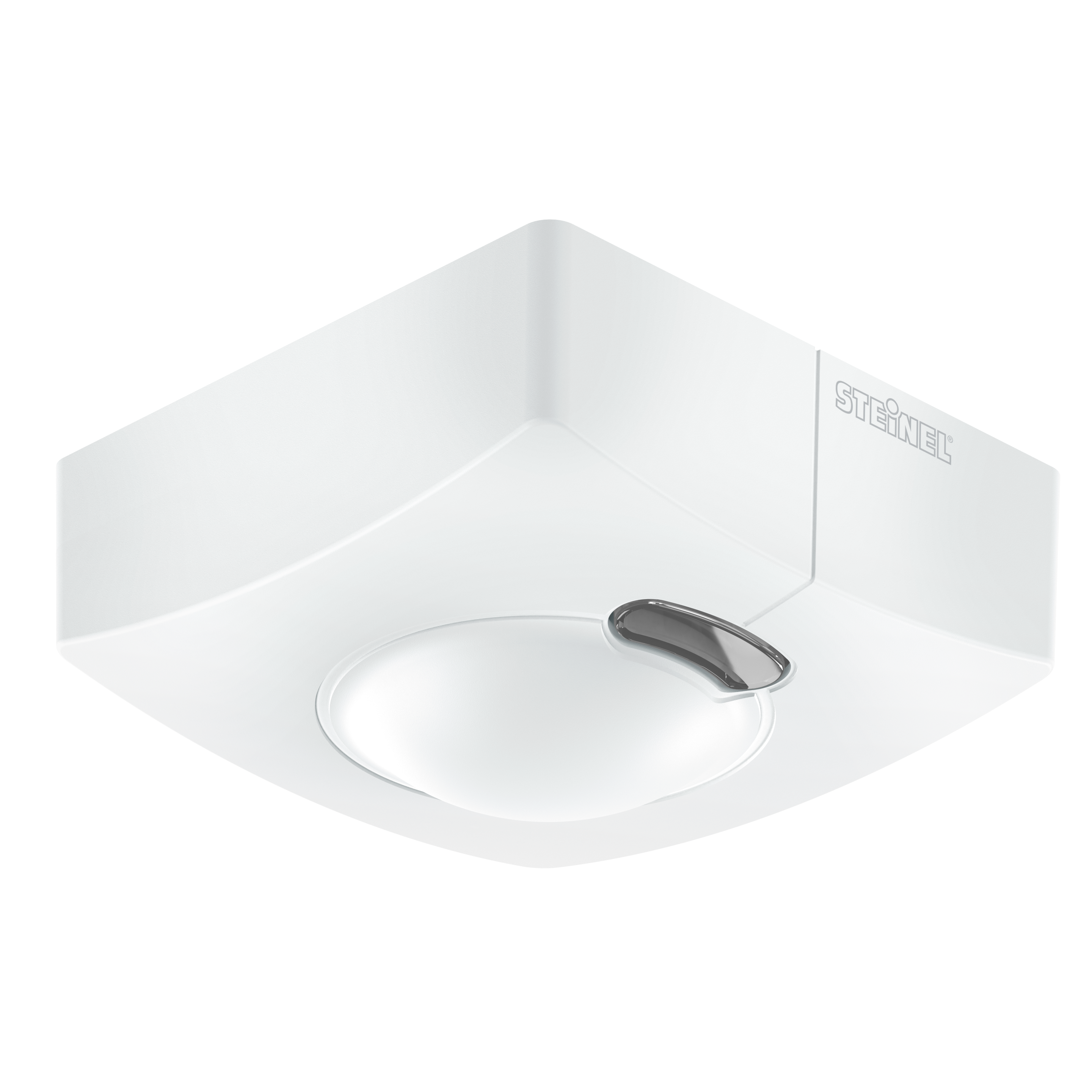

Nevalux HF 3360 KNX - surface, sq.

ELDAS® no. 535 945 077

EAN-No. 4007841 058210

This product is being replaced by a successor product.

Go to successor product · HF 360-2 KNX - Surface wiring (064860)

Perfection through and through. High-frequency motion detector HF 3360, ideal for basement corridors, stairwells, multi-storey car parks, installation height 2.8 m, 360° angle of coverage, reach 1 – 8 m (radial), detection regardless of temperature, HF-sensor technology also detects movement through glass, wood and stud walls. Available either in round or square surface-mounted and concealed version.

UV-resistant plastic
Large terminal compartment
Optional corner wall mount bracket
Optional remote controls
Smart Remote remote control optional

Identification

Version Motion detectors

Dimensions

Dimensions L × W × H 52 x 95 x 95 mm

Electrical

Supply voltage detail KNX bus

Sensor technology

Max. mounting height 4,00 m

Sensor technology High frequency

Transmission power < 1 mW

HF technology 5,8 GHz

Detection also through glass, wood and stud walls

Detection angle 360 °

Opening angle 180 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability Yes

Mechanical scalability No

Radial range Ø 8 m (50 m²)

Tangential range Ø 8 m (50 m²)

Mounting height 2,00 – 4,00 m

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Type of networking Master/slave

Networking via KNX bus

KNX functions Photo-cell controller\nBasic light level function\nLight level\nHVAC output\nConstant-lighting control\nLight output 2x\nPresence output\nDay / night function\nLogic gate

With bus coupler Yes

Lighting technology

Soft light start Yes

Continuous light selectable

Constant light regulation Yes

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Time setting 5 s – 15 Min.

Base light function Yes

Main light adjustable 0 - 100 %

Settings via ETS software\nRemote control\nBus\nSmart Remote

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP54

Ambient temperature from -20 up to 50 °C

Mounting location ceiling corner wall

Application location Indoors

Mounting type Surface wiring

Material Plastic

Application room Indoors WC / washroom function room / ancillary room multi-storey / underground car park stairwell

Colour white

RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Technical drawing

Data sheet User manual Declaration of conformity

Service remote control RC6 KNX

Item no. 4007841593018

Remote control Smart Remote

Item no. 009151

Corner wall mount 3000 white

Item no. 4007841035174

User remote control RC7 KNX

Item no. 592912

Black cover for HF 3360 surface, sq.

Item no. 4007841056674

Black cover for HF 3360 surface, rd.

Item no. 4007841056698
