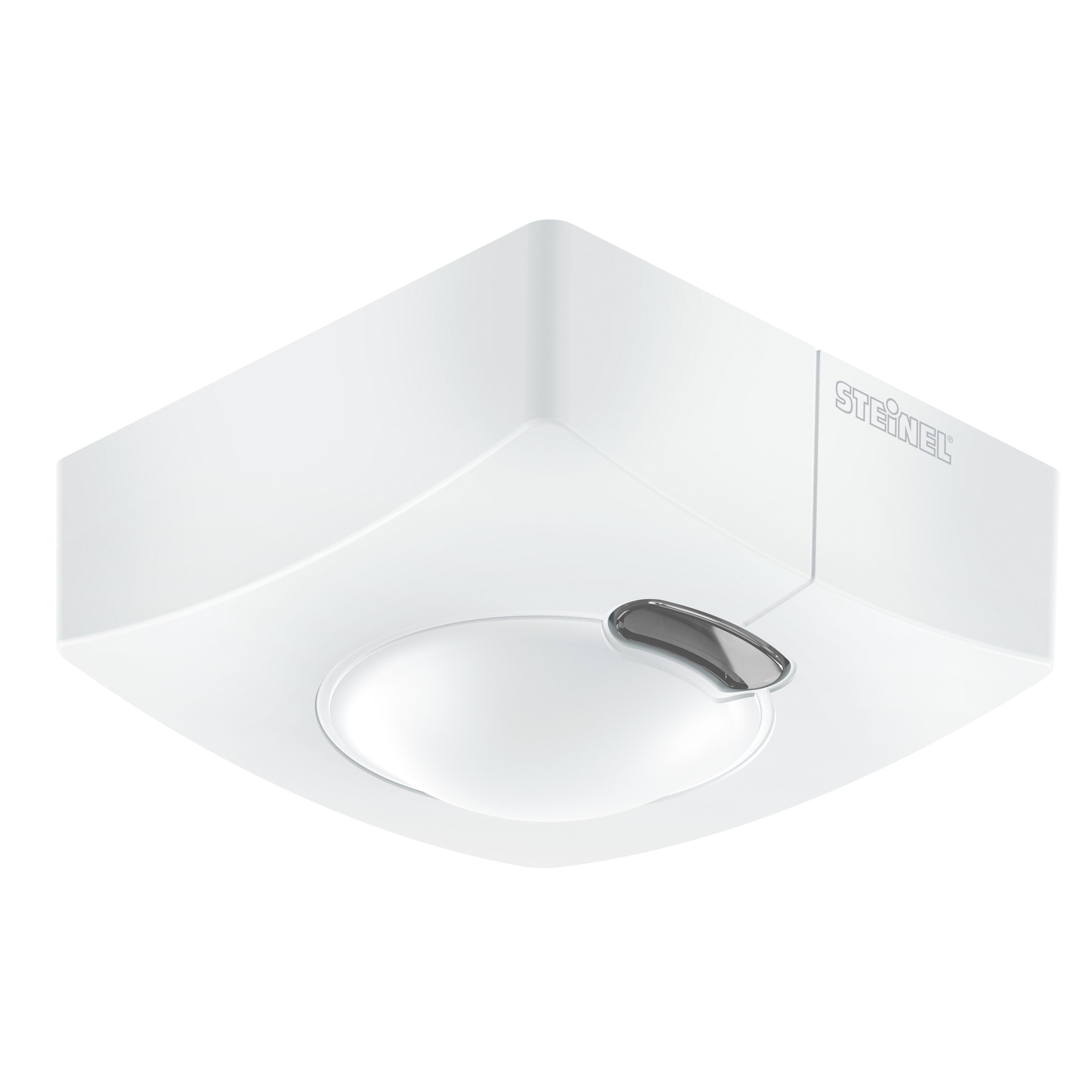

Nevalux HF 3360 LiveLink - surface-mounted, square

ELDAS® no. 535 943 307

EAN-No. 4007841 049454

This product is being replaced by a successor product.

Go to successor product · HF 3360 DALI-2 Input Device - surface, sq. (4007841057312)

Perfection through and through. High-frequency motion detector HF 3360, ideal for basement corridors, stairwells, multi-storey car parks, installation height 2.8 m, 360° angle of coverage, reach 1 – 8 m (radial), detection regardless of temperature, HF-sensor technology also detects movement through glass, wood and stud walls. Available either in round or square surface-mounted and concealed version.

Large terminal compartment

Identification

Variant LiveLink - surface-mounted, square

Version Motion detectors

Model LiveLink

Dimensions

Dimensions L × W × H 95 x 95 x 52 mm

Electrical

Mains connection 230 V, 50 / 60 Hz

Supply voltage detail DALI bus

Livelink values Light level, Motion detection

Sensor technology

Sensor technology High frequency

HF technology 5,8 GHz

Detection also through glass, wood and stud walls

Detection angle 360 °

Opening angle 140 °

Sneak-under protection Yes

Electronic scalability Yes

Mechanical scalability No

Radial range Ø 8 m (50 m²)

Tangential range Ø 8 m (50 m²)

Mounting height 2,00 – 4,00 m

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Number of DALI participants 5

Lighting technology

Constant light regulation No

Settings

Twilight setting 2 – 1000 lx

Time setting 5 sec – 15 min

Base light function No

Settings via LiveLink app

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP54

Ambient temperature -20 – 50 °C

Mounting location ceiling corner wall

Application location Indoors

Mounting type Surface wiring

Material Plastic

Colour white

RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years

Other

Application, location, room side room, stairwell, wc, washroom, multi-storey car park, underground car park, equipment room
