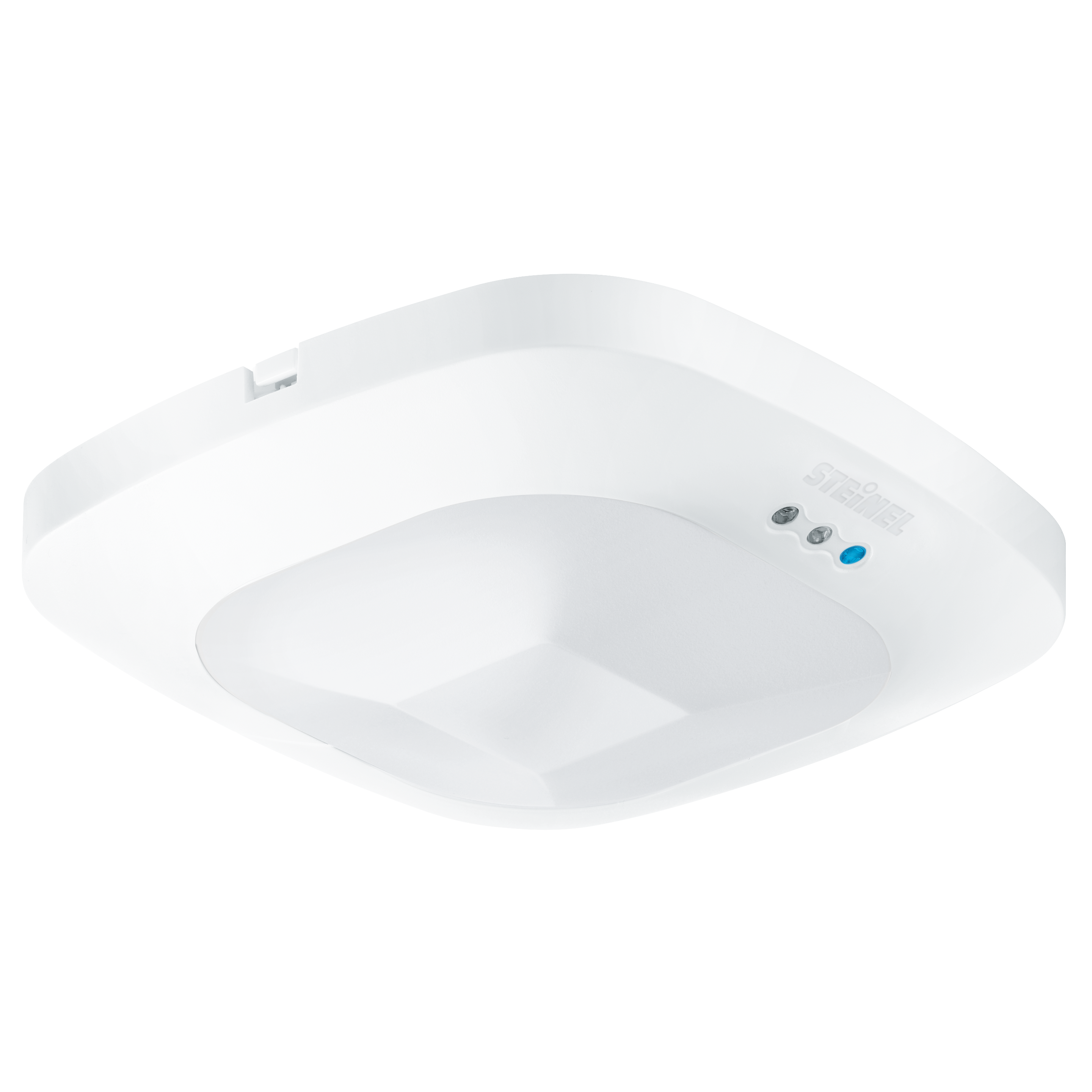

Nevalux HF 360 DIM
EAN-No. 4007841 002831
This product is being replaced by a successor product.
Go to successor product · HF 360 DALI-2 APC - concealed (002817)Doesn't miss a thing. HF-presence detector Presence Control PRO HF 360 DIM for indoors, ideal for WCs with toilet cubicles, changing rooms, stairwells, multi-storey car parks, kitchens, installation height up to 3.5 m, for controlling and switching light 'ON' and 'OFF', 1 – 12 m reach, reach is electronically adjustable and can be limited in two directions, detection regardless of temperature, HF-sensor technology also detects movement through glass, wood and stud walls.
- Optional remote controls
- Optional surface-mounting adapter
- Optional guard cage
- HF ceiling adapter for installation in suspended ceilings
Identification
Variant
DIM
Version
Presence detector
Dimensions
Dimensions L × W × H
120 x 120 x 51 mm
Electrical
Mains connection
230 V, 50 / 60 Hz
Number of ECGs DIM interface
50
Sensor technology
Sensor technology
High frequency
HF technology
5,8 GHz
Detection
also through glass, wood and stud walls
Detection angle
360 °
Opening angle
160 °
Sneak-under protection
Yes
Segment-by-segment masking
Yes
Electronic scalability
Yes
Mechanical scalability
No
Range detail
1 or 2 detection directions can be masked out by stickers for adjustment to the room situation.
Radial range
Ø 12 m (113 m²)
Tangential range
Ø 12 m (113 m²)
Mounting height
2,50 – 3,50 m
Optimal mounting height
2,8 m
Connectivity
Networking
Yes
Type of networking
Master/slave, Master/master
Lighting technology
Constant light regulation
Yes
Settings
Twilight setting
100 – 1000 lx
Time setting
30 sec – 30 min
Base light function
Yes
With remote control
No
Twilight setting teach
Yes
Housing & material
Protection class (IP)
IP20
Ambient temperature
-25 – 55 °C
Mounting location
ceiling
Application location
Indoors
Mounting type
Concealed wiring
Material
Plastic
Colour
white
RAL colour
9010
Scope of delivery & warranty
Manufacturer warranty
5 years
Other
Application, location, room
side room, stairwell, washroom, wc
