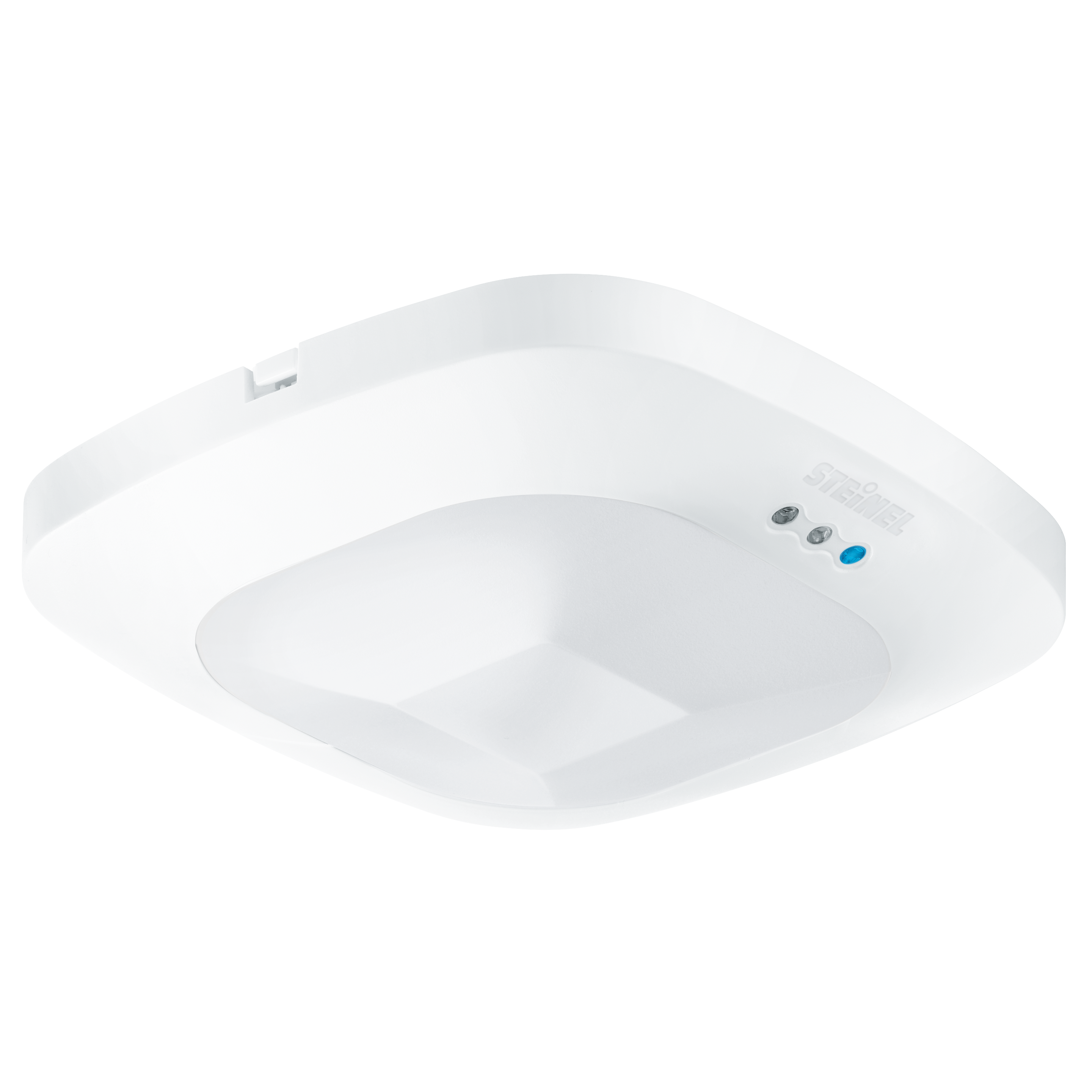

Nevalux HF 360 LiveLink

ELDAS® no. 535 934 507

EAN-No. 4007841 033972

This product is being replaced by a successor product.

Go to successor product · HF 360 DALI-2 Input Device - concealed (057480)

Doesn't miss a thing. HF-presence detector Presence Control PRO HF 360 LiveLink for indoors, ideal for WCs with toilet cubicles, changing rooms, stairwells, multi-storey car parks, kitchens, installation height up to 3.5 m, with digital DALI interface for integration into the LiveLink system, 1 – 12 m reach, reach is electronically adjustable and can be limited in two directions, detection regardless of temperature, HF-sensor technology also detects movement through glass, wood and stud walls.

Optional surface-mounting adapter
Optional guard cage
HF ceiling adapter for installation in suspended ceilings
Settings via LiveLink app
Optional remote controls

Identification

Variant LiveLink

Version Presence detector

Model LiveLink

Dimensions

Dimensions L × W × H 120 x 120 x 36 mm

Electrical

Supply voltage detail DALI bus

Livelink values Light level, Motion detection, Presence detection

Sensor technology

Sensor technology High frequency

HF technology 5,8 GHz

Detection also through glass, wood and stud walls

Detection angle 360 °

Opening angle 160 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability Yes

Mechanical scalability No

Range detail 1 or 2 detection directions can be masked out by stickers for adjustment to the room situation.

Radial range Ø 12 m (113 m²)

Tangential range Ø 12 m (113 m²)

Mounting height 2,50 – 3,50 m

Optimal mounting height 2,8 m

Connectivity

Number of DALI participants 4

With bus coupler Yes

Settings

Twilight setting 10 – 1000 lx

Time setting 60 sec – 60 min

Settings via LiveLink app

Twilight setting teach Yes

Housing & material

Protection class (IP) IP20

Mounting location ceiling

Application location Indoors

Mounting type Concealed wiring

Material Plastic

Colour white

RAL colour 9010

Scope of delivery & warranty

Manufacturer warranty 5 years

Other

Application, location, room side room, stairwell, washroom, wc

Data sheet User manual

Surface-mounted adapter Control Pro IP54 white

Item no. 000363

Control PRO guard cage

Item no. 003036

HF-ceiling adapter

Item no. 006600

Remote control Smart Remote

Item no. 009151
