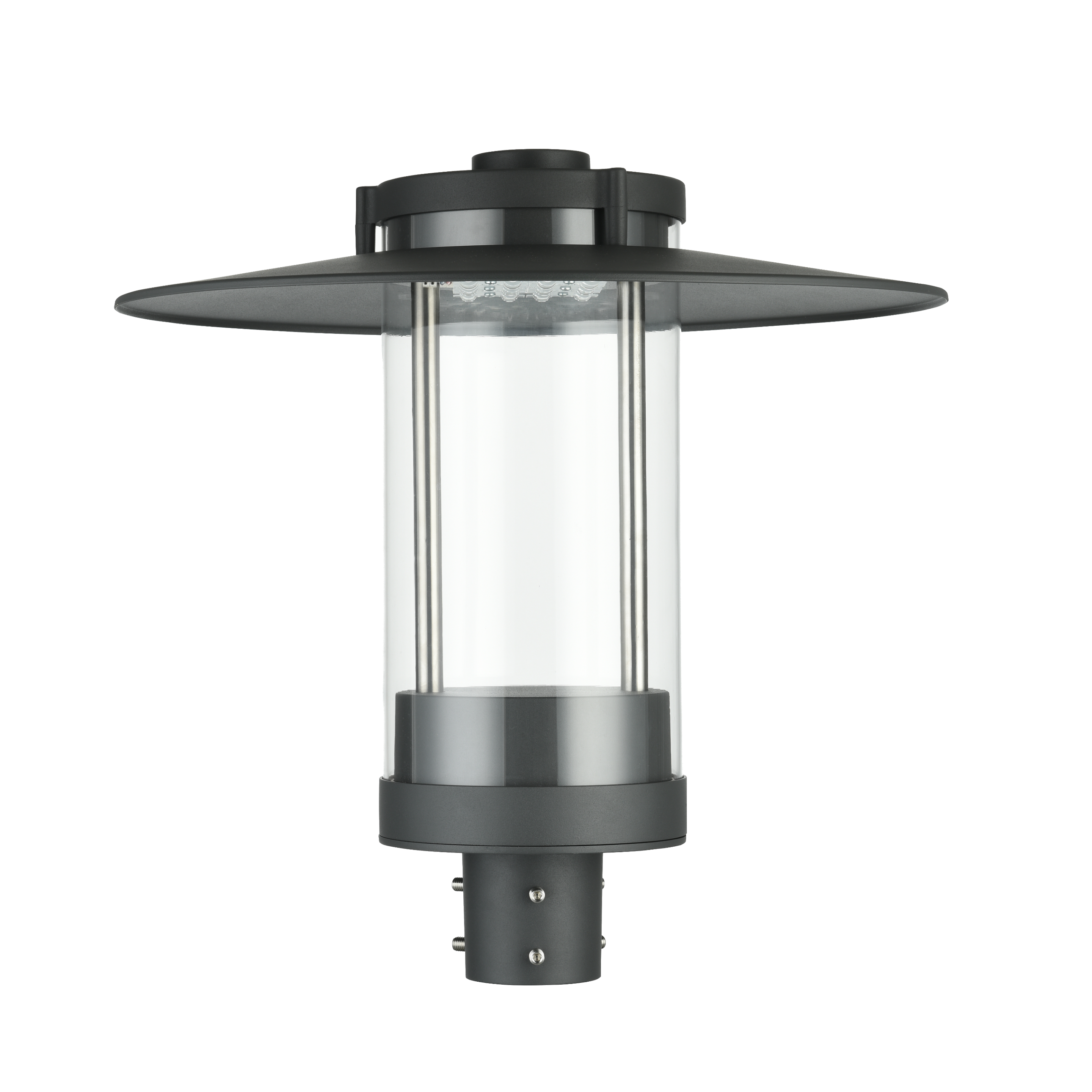

Nevalux iFux City Park Pole Connect 53W 3K Master GPS

Nevalux iFux City Park Pole Connect 53W 3K Master GPS

Product code 221467

Nevalux

Nevalux iFux City Park Pole Connect 53W 3K Master GPS

Product code 221467

Price: Please log in to see prices

Version

Master Master GPS

The iFux City Park Pole luminaire is a timeless street light of the latest generation. It has an adjustable brightness for the main and orientation light as well as a built-in motion detector. Thanks to the integrated radio communication, an intelligent network with several lights can be easily set up. In conjunction with the neighbor function, the light precedes the user. Old luminaires can be replaced without rewiring. Variable candelabra diameters ensure universal use.

  • Intelligent pole-mounted luminaire for inspiring outdoor lighting solutions
  • Built-in lighting control including motion detection, orientation light and neighbor function
  • Wireless networking by radio
  • High-quality, noble processing with glare-free illumination
  • Designed for the lighting of urban, street and pedestrian areas
  • Option cloud maintenance and lighting control platform via gateway or Version GPS

Identification

Variant Wide beam

Variants

Luminous flux 7526 lm

Dimensions

Dimensions L × W × H 550 x 550 mm
Suitable for pole-top diameter 48...76 mm

Electrical

Mains connection 90...264 VAC / 47 – 63 Hz
Power 53 W
Power factor 0.92

Sensor technology

Sensor technology passive infrared
With motion detector Yes
Detection angle 100 °
Tangential range 10 m
With light sensor Yes

Connectivity

With radio network control Yes

Lighting technology

Colour temperature 3000 K
Colour rendering index 70-79
With illuminant Yes, LED-System
Luminous flux 7526 lm
Beam angle Medium
Luminaire luminous efficacy 142 lm/W

Lifetime

LED lifespan (25 °C) 100000 h

Settings

DALI dimming Yes
With program-controlled lighting control Yes, incl. GPS

Housing & material

Impact resistance IK10
Protection class (IP) IP66
Protection class II
Ambient temperature -30...55 °C
Housing material Aluminium
Cover material Clear glass
Mounting type Column side-entry
Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 5 years
With connection cable Yes

Certificates & EPREL

EPREL energy efficiency class A++, A+, A (LED)

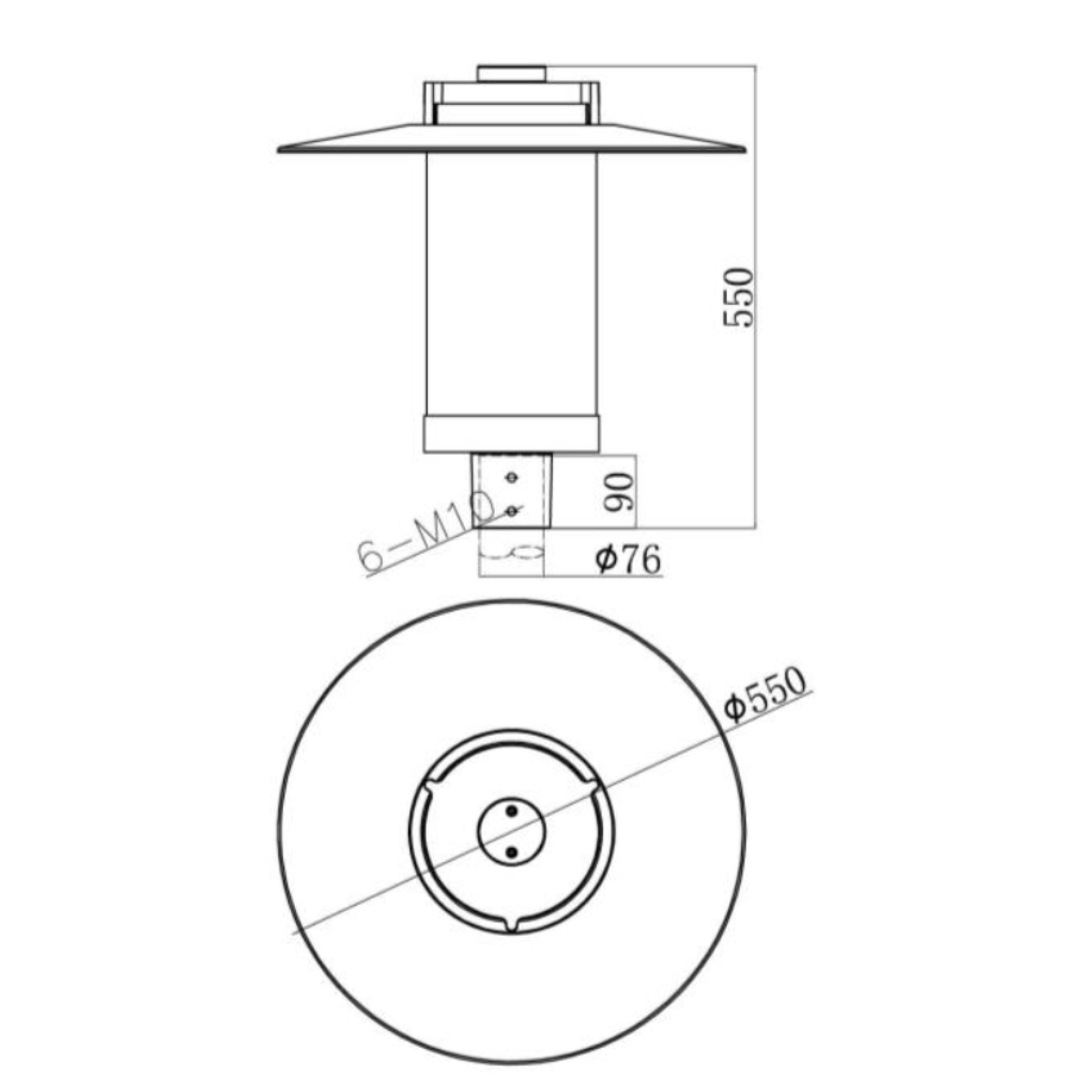

Technical drawing
