nevalux iFux CityStreet4 28W DM10 3K

nevalux iFux CityStreet4 28W DM10 3K

Product code 221191

nevalux

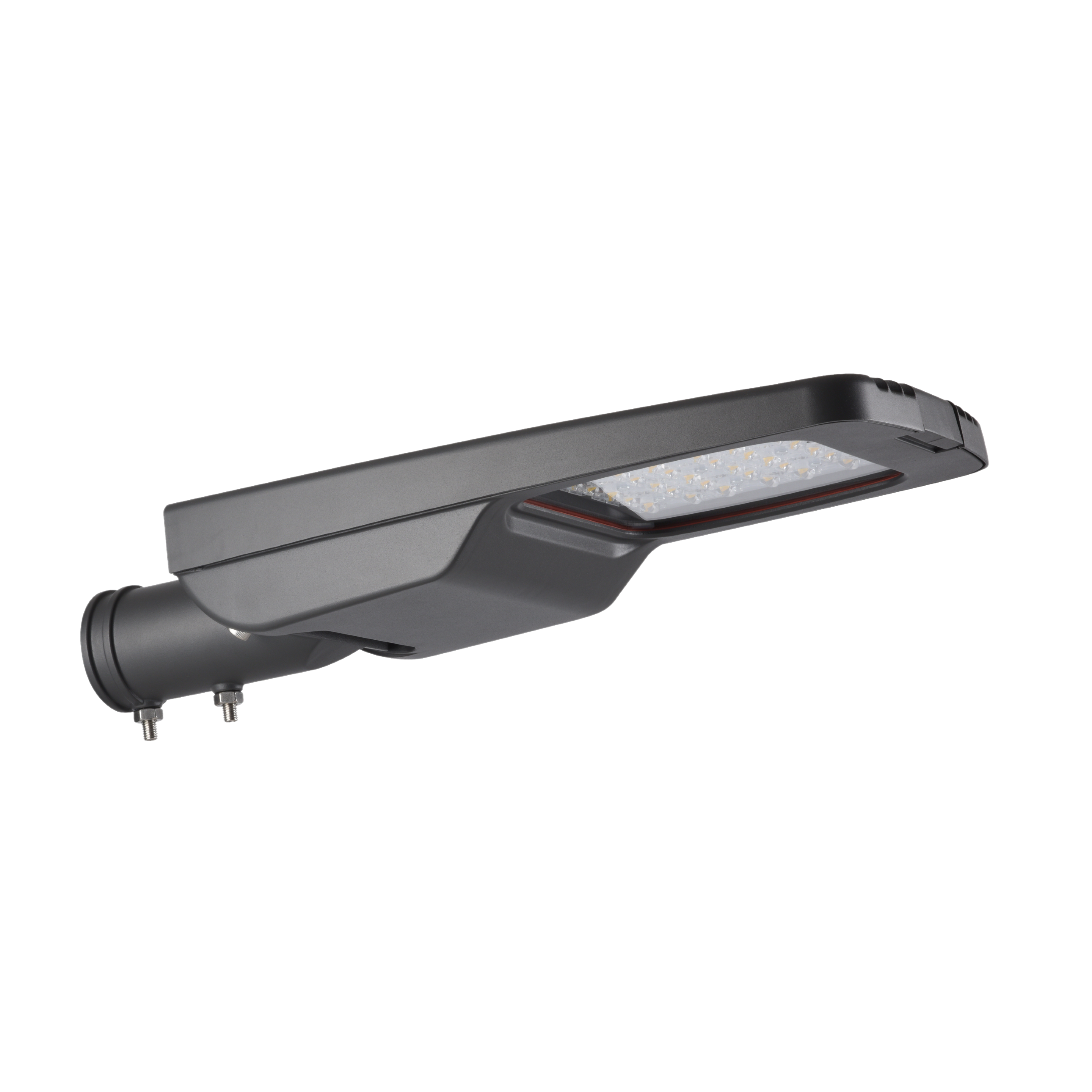

nevalux iFux CityStreet4 28W DM10 3K

LED street light for residential and access roads. Motion sensor, radio networked.

Product code 221191

Price: Please log in to see prices

Version

Master Master GPS Without intelligence

Variant

Narrow beam DN10 Wide beam DM10

Luminous flux

3976 lm 8520 lm

Dimensions L × W × H

458 x 240 x 100 mm

The iFux CityStreet 4 luminaire is an intelligent and functional street light of the latest generation. It convinces by very good corrosion protection and best maintenance characteristics. Variable candelabra diameters ensure universal use.

  • Pole mounted luminaire for universal outdoor use
  • High-quality, noble processing with glare-free illumination
  • Designed for the lighting of urban, street and pedestrian areas
  • Also available as intelligent Connect luminaire with built-in, networkable sensor technology
  • 5 years warranty

Variants

Luminous flux 3976 lm

Dimensions

Suitable for pole-top diameter 48...76 mm

Electrical

Mains connection 90...264 VAC / 47 – 63 Hz
Power 28 W
Power factor 0.92

Sensor technology

With motion detector No
With light sensor No

Connectivity

With radio network control No
Control technology E-Save

Lighting technology

Colour temperature 3000 K
Colour rendering index 70 - 79
With illuminant Yes, LED-System
Beam angle Medium
Luminaire luminous efficacy 142 lm/W

Lifetime

LED lifespan (25 °C) 100000 h

Settings

DALI dimming Yes
With program-controlled lighting control No

Housing & material

Impact resistance IK09
Protection class (IP) IP66
Protection class II
Ambient temperature -30...+55 °C
Housing material Aluminium
Cover material Clear glass
Mounting type Column side-entry
Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 5 years
With connection cable Yes

Certificates & EPREL

EPREL energy efficiency class A++, A+, A (LED)

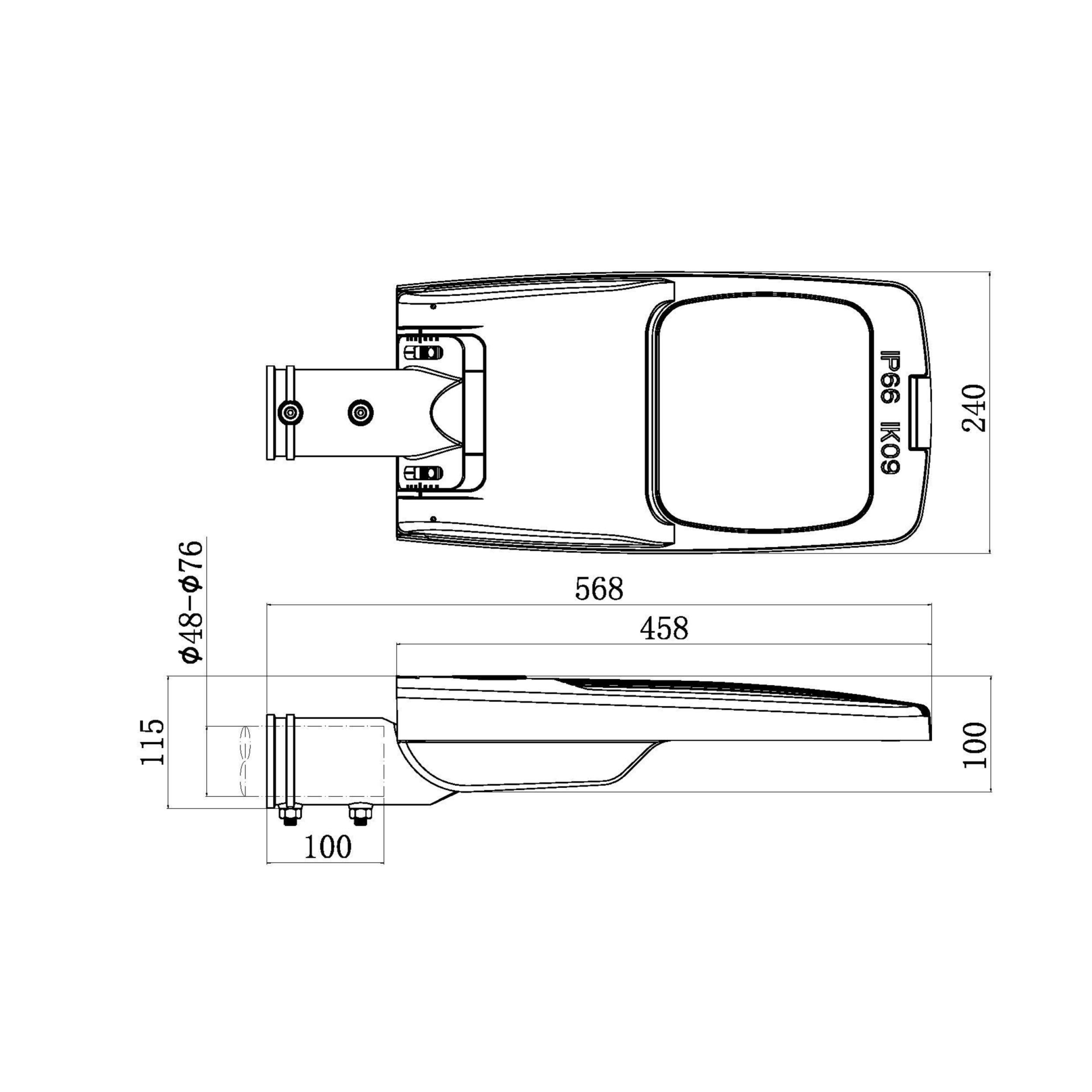

Technical drawing

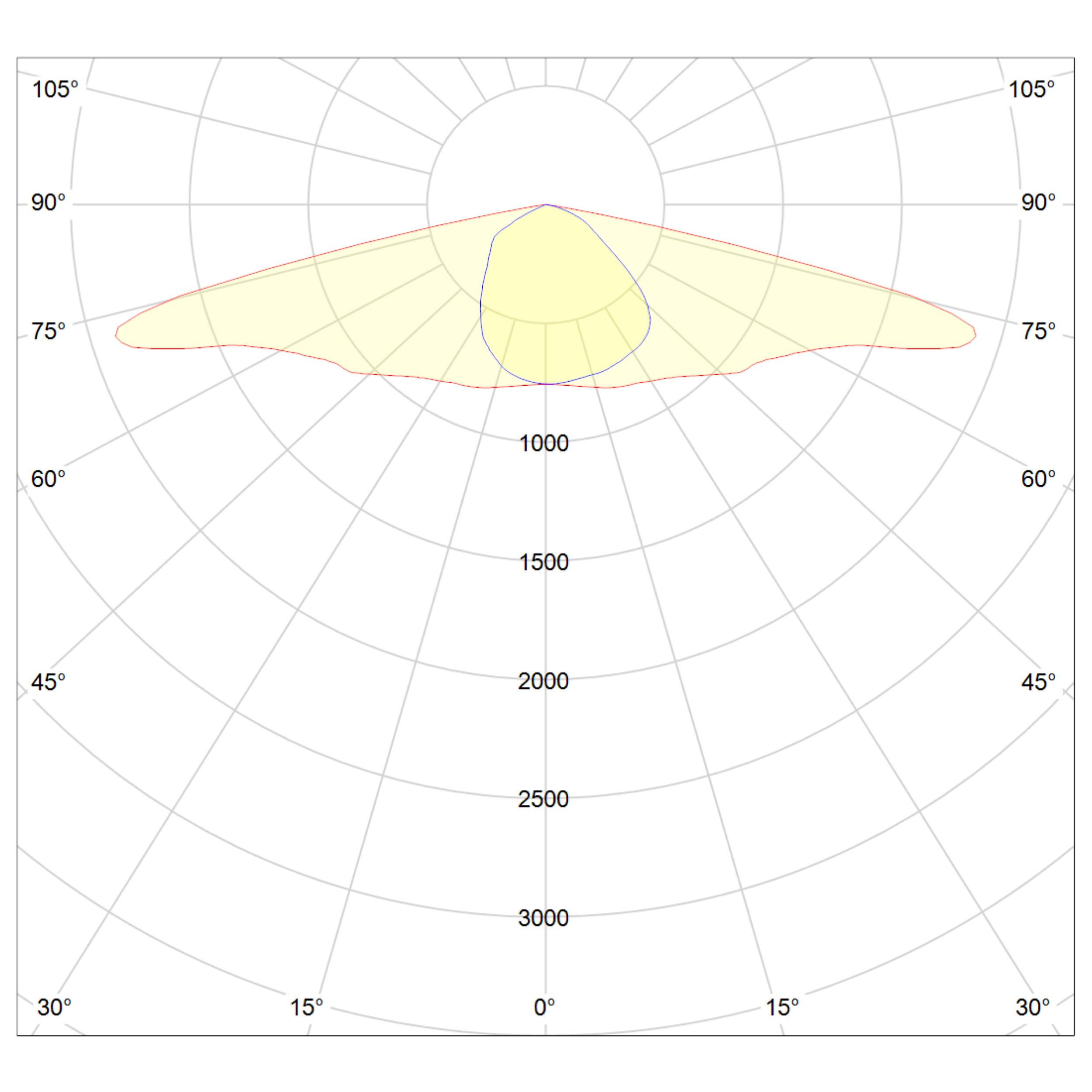

Lichtverteilungskurve

Sensor detection range
