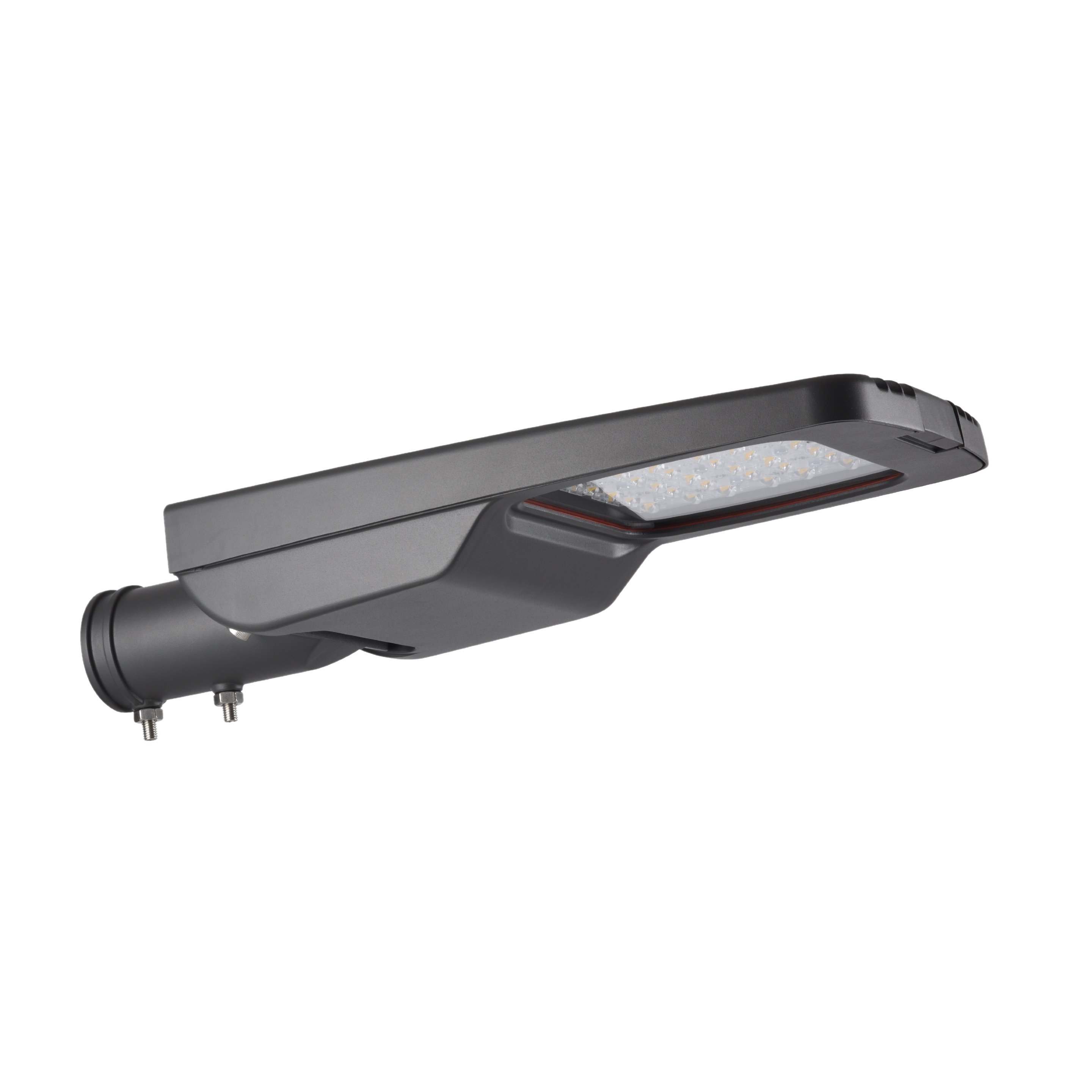

Nevalux iFux CityStreet4 60W DN10 3K
Product code 221188
Price: Please log in to see prices
Optics
DN10 for narrow streets and large spacings
DM10 for wide streets
Luminous flux
8520 lm
3976 lm
The iFux CityStreet 4 luminaire is an intelligent and functional street light of the latest generation. It convinces by very good corrosion protection and best maintenance characteristics. Variable candelabra diameters ensure universal use.
- Pole mounted luminaire for universal outdoor use
- High-quality, noble processing with glare-free illumination
- Designed for the lighting of urban, street and pedestrian areas
- Also available as intelligent Connect luminaire with built-in, networkable sensor technology
- 5 years warranty
Identification
Variant
Narrow beam DN10, 60W

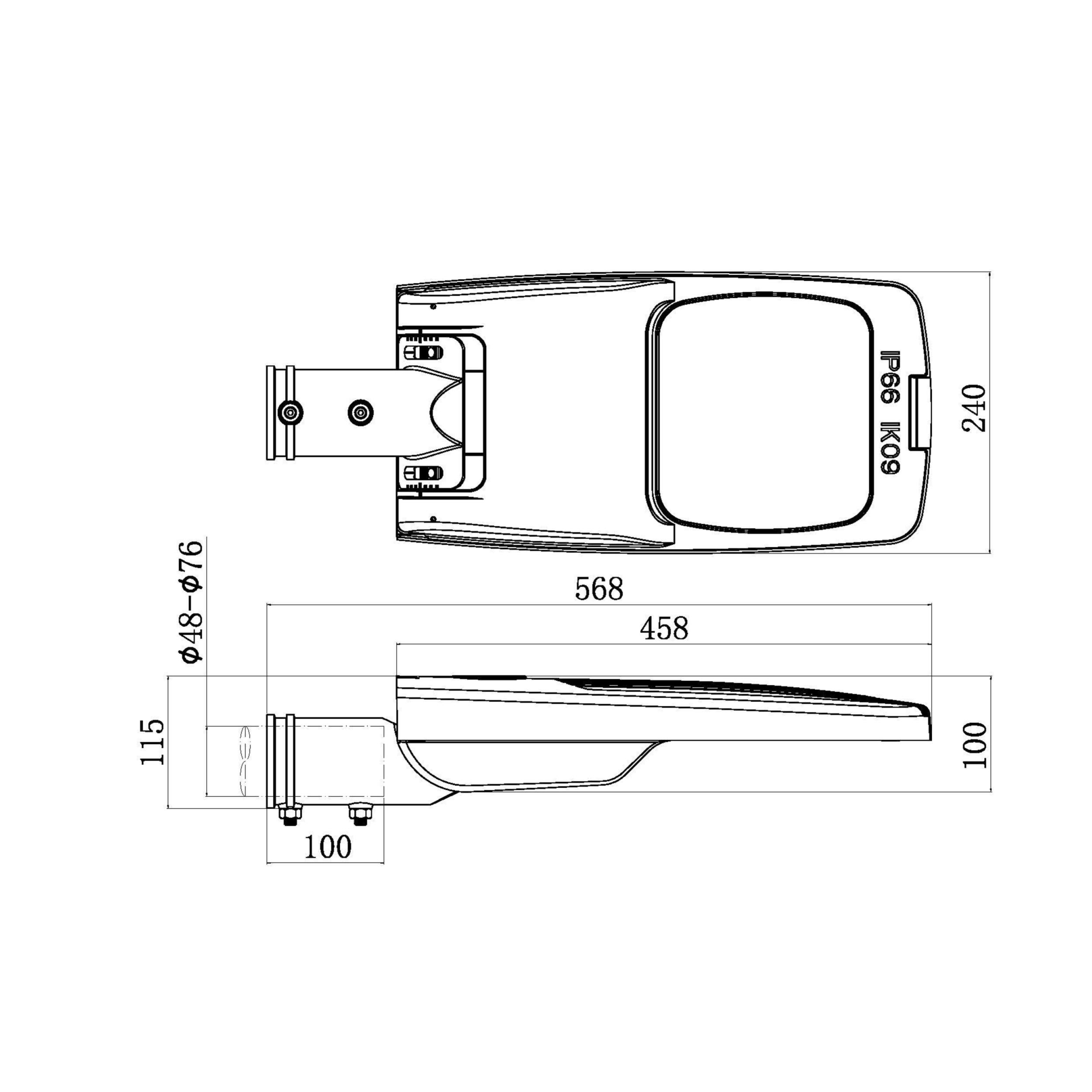

Dimensions
Dimensions L × W × H
458 x 240 x 100 mm
Suitable for pole-top diameter
48...76 mm
Electrical
Mains connection
90...264 VAC / 47 – 63 Hz
Power
60 W
Power factor
0.92
Sensor technology
With motion detector
No
With light sensor
No
Connectivity
With radio network control
No
Lighting technology
Colour temperature
3000 K
Colour rendering index
70-79
With illuminant
Yes, LED-System
Luminous flux
8520 lm
Beam angle
Narrow
Luminaire luminous efficacy
142 lm/W
Lifetime
LED lifespan (25 °C)
100000 h
Settings
DALI dimming
Yes
With program-controlled lighting control
No
Housing & material
Impact resistance
IK09
Protection class (IP)
IP66
Protection class
II
Ambient temperature
-30...55 °C
Housing material
Aluminium
Cover material
Clear glass
Mounting type
Column side-entry
Colour
Anthracite
Scope of delivery & warranty
Manufacturer warranty
5 years
With connection cable
Yes
Certificates & EPREL
EPREL energy efficiency class
A++, A+, A (LED)
