Nevalux iFux CityStreet4 Connect 60W DM10 3K Master

Nevalux iFux CityStreet4 Connect 60W DM10 3K Master

Product code 221185

Nevalux

Nevalux iFux CityStreet4 Connect 60W DM10 3K Master

Product code 221185

Price: Please log in to see prices

Version

Master Master GPS

Optics

Luminous flux

3976 lm 8520 lm

The iFux CityStreet 4 luminaire is an intelligent and functional street light of the latest generation. It convinces by very good corrosion protection and best maintenance characteristics. It has an adjustable brightness for the main and orientation light as well as a built-in motion detector. Thanks to the integrated radio communication, an intelligent network with several lights can be easily set up. In conjunction with the neighbor function, the light precedes the user. Old luminaires can be replaced without rewiring. Variable candelabra diameters ensure universal use.

  • Intelligent pole-mounted luminaire for inspiring outdoor lighting solutions
  • Built-in lighting control including motion detection, orientation light and neighbor function
  • Wireless networking by radio
  • High-quality, noble processing with glare-free illumination
  • Designed for the lighting of urban, street and pedestrian areas
  • Option cloud maintenance and lighting control platform via gateway or GPS version

Identification

Variant Wide beam DM10, 60W

Dimensions

Dimensions L × W × H 458 x 240 x 100 mm
Suitable for pole-top diameter 48...76 mm

Electrical

Mains connection 90...264 VAC / 47 – 63 Hz
Power 60 W
Power factor 0.92

Sensor technology

Sensor technology passive infrared
With motion detector Yes
Detection angle 100 °
Tangential range 10 m
With light sensor Yes

Connectivity

With radio network control Yes

Lighting technology

Colour temperature 3000 K
Colour rendering index 70-79
With illuminant Yes, LED-System
Luminous flux 8520 lm
Beam angle Medium
Luminaire luminous efficacy 142 lm/W

Lifetime

LED lifespan (25 °C) 100000 h

Settings

DALI dimming Yes
With program-controlled lighting control Yes

Housing & material

Impact resistance IK09
Protection class (IP) IP66
Protection class II
Ambient temperature -30...55 °C
Housing material Aluminium
Cover material Clear glass
Mounting type Column side-entry
Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 5 years
With connection cable Yes

Certificates & EPREL

EPREL energy efficiency class A++, A+, A (LED)

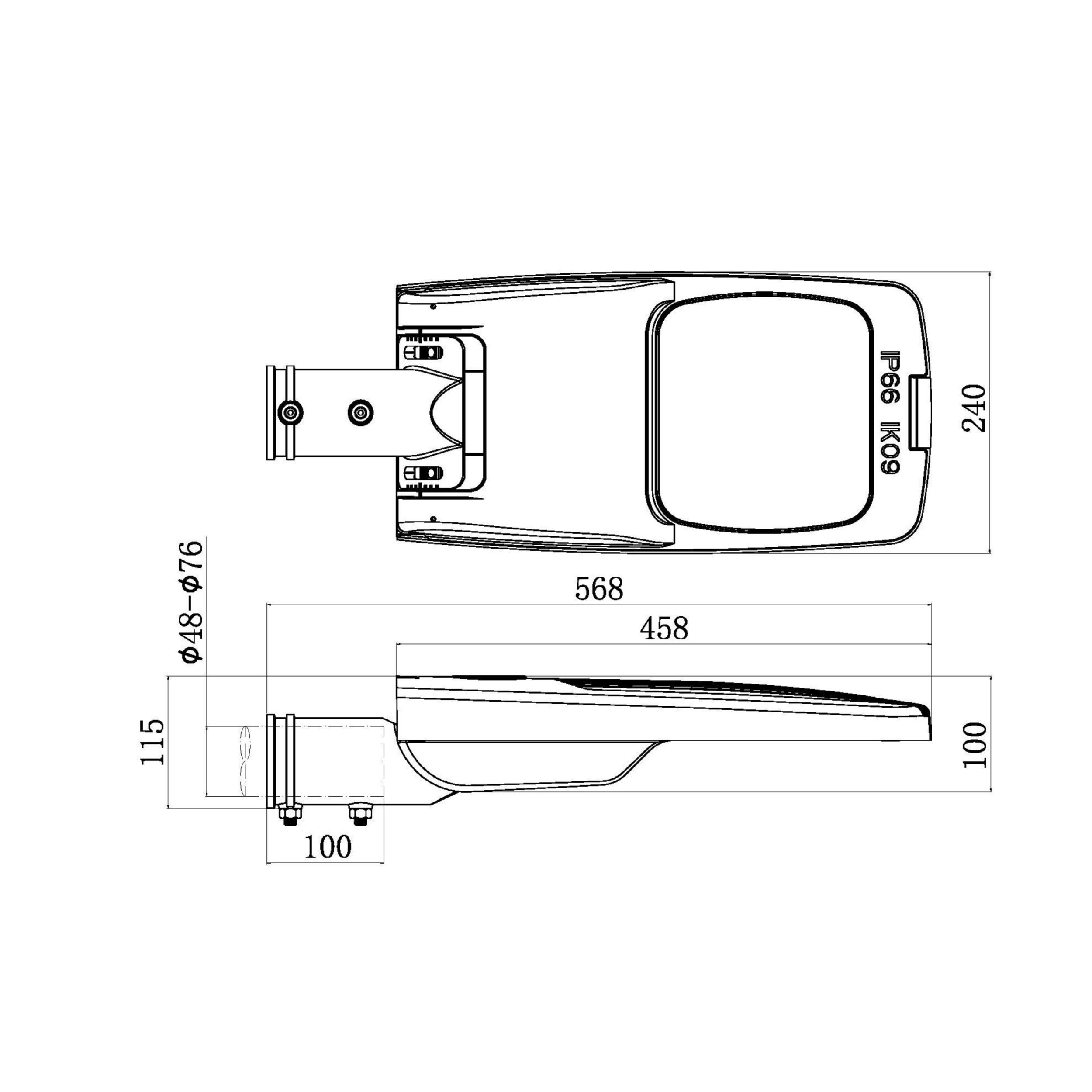

Technical drawing

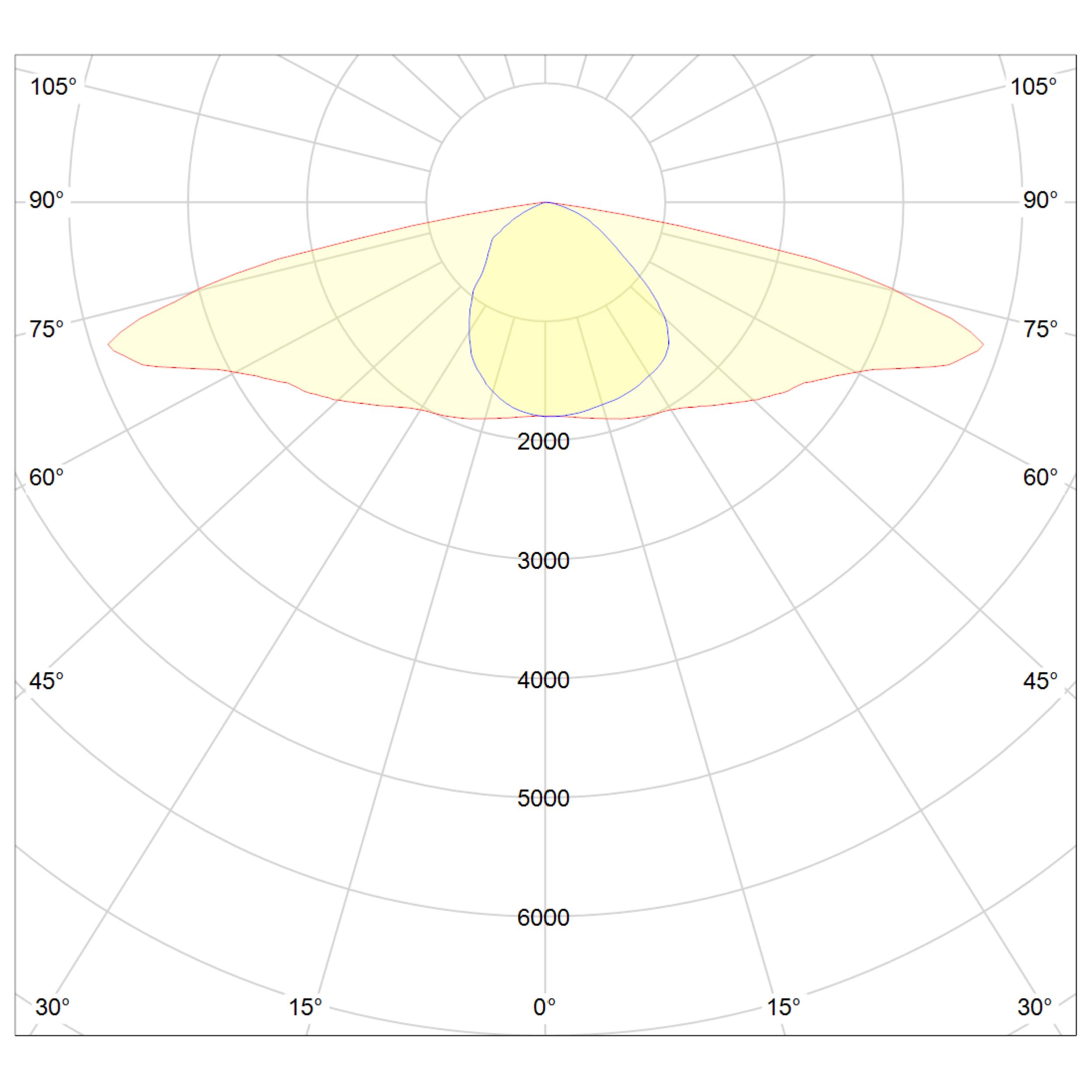

Lichtverteilungskurve

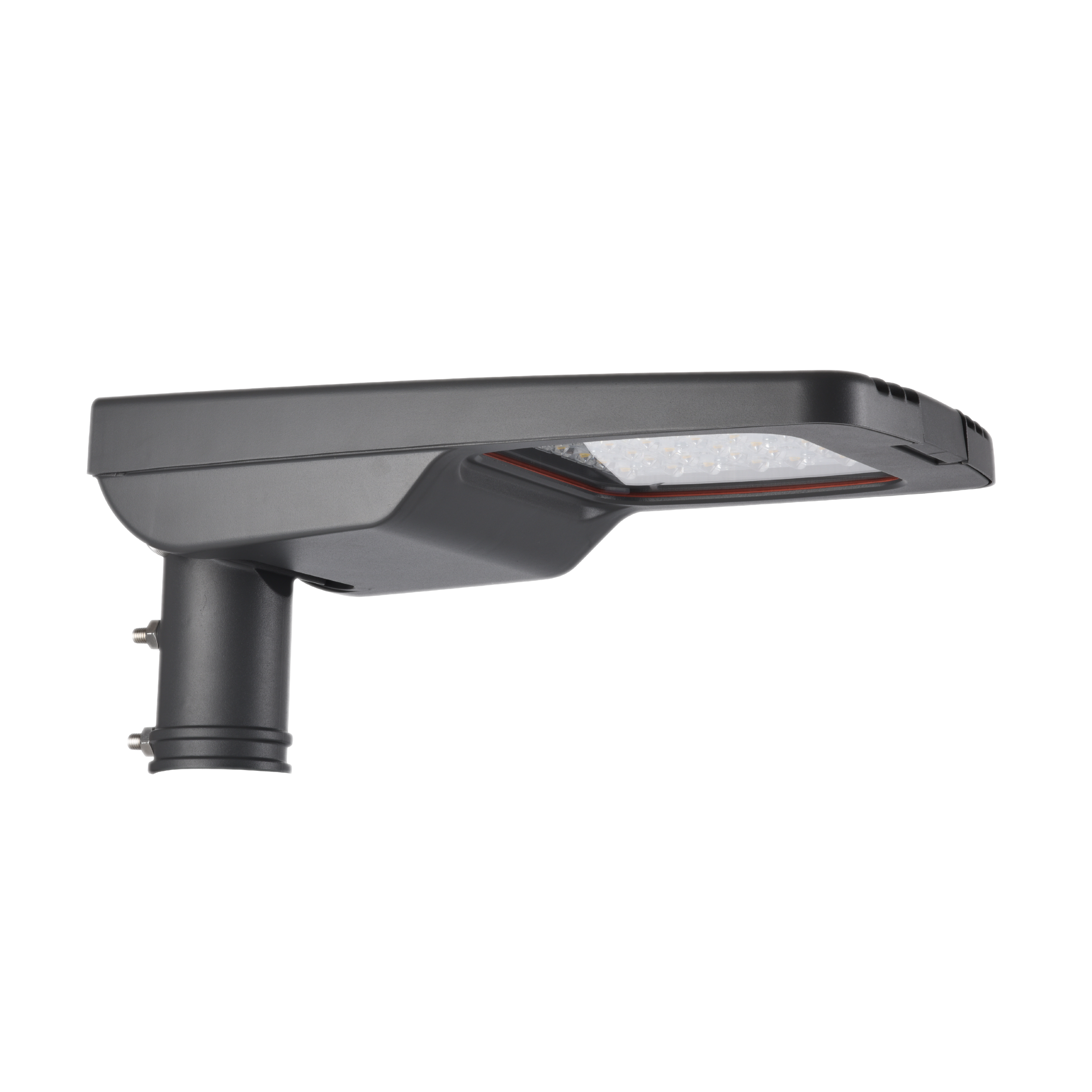

Sensor detection range
