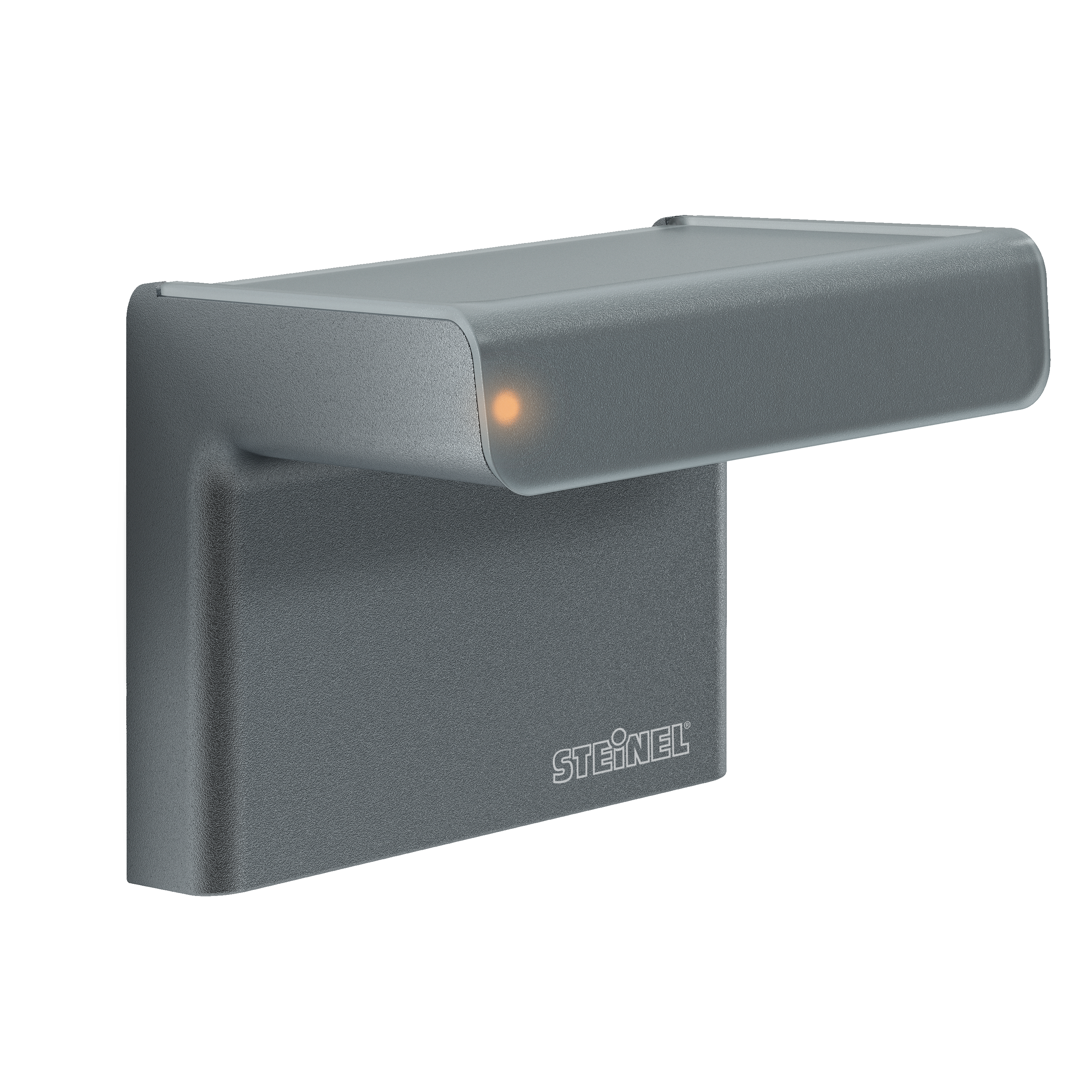

Nevalux iHF 3D COM1 - anthracite

ELDAS® no. 535 941 008

EAN-No. 4007841 066178

Discontinued

This product is being discontinued and is available while stocks last. No successor product has been announced yet.

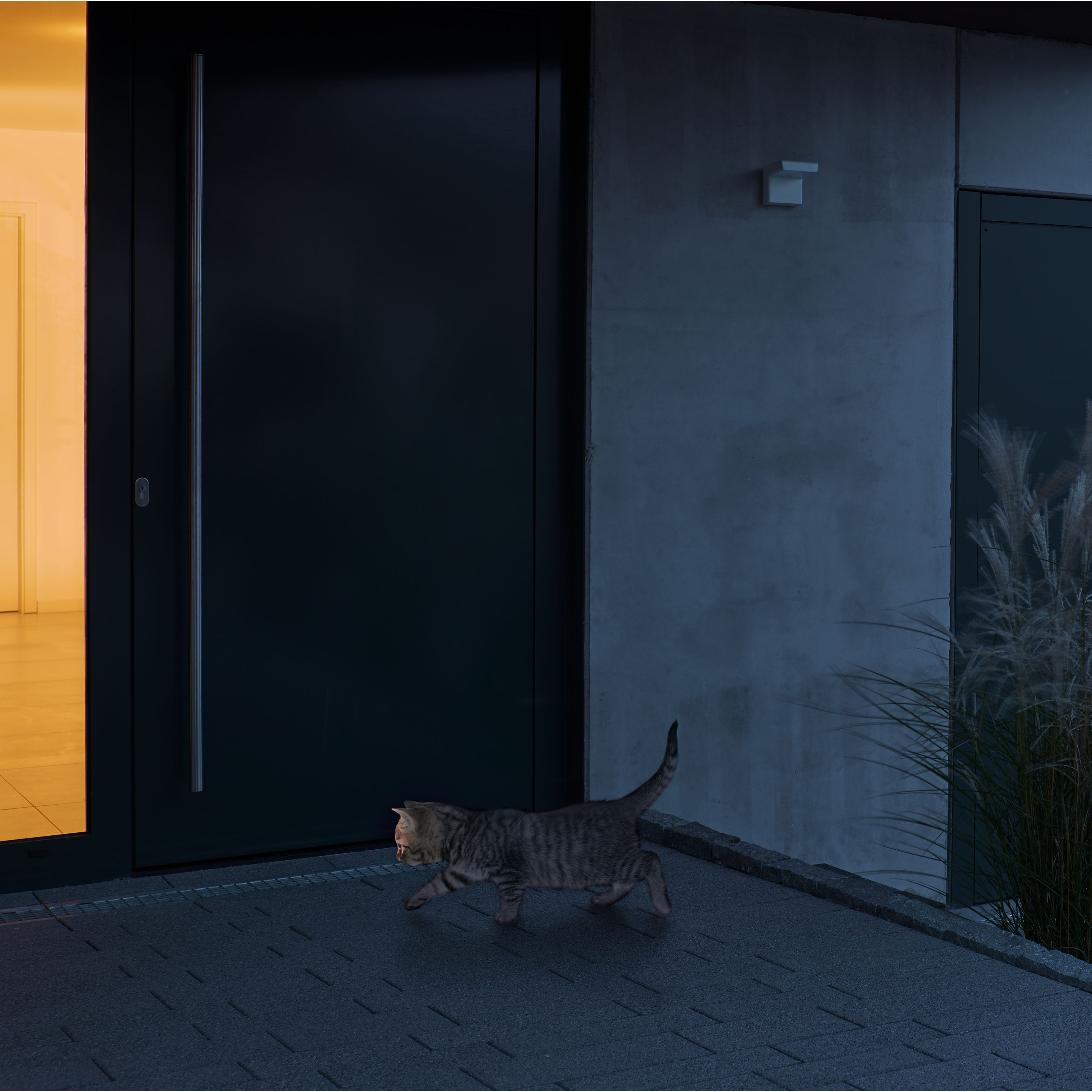

Makes all the difference outside. Precisely where you want it to. iHF 3D motion detector, ideal for facades, carports, parking areas and patios. 160° iHF-sensor with 5 m reach, 3D aerial technology, identifies and distinguishes between moving objects, no inadvertent triggering any more by small animals, very low or high temperatures. Detects everything equally well whichever direction it is approached from. Easy to adjust and interconnect by app and Bluetooth.

Control unit for adjusting the detection zone along 3 axes
Control dials behind the designer trim panel
iHF sensor protected in enclosure
UV-resistant plastic

Identification

Version Motion detectors

Variants

Version COM1 BT

Colour Anthracite

Dimensions

Dimensions L × W × H 120 x 117 x 120 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Switching output 1 resistive 2000 W

Sensor technology

Max. mounting height 2,00 m

Sensor technology iHF (intelligent high-frequency technology)

Transmission power < 1 mW

HF technology 5,8 GHz

With motion detector Yes

Detection angle 160 °

Opening angle 100 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability Yes

Mechanical scalability No

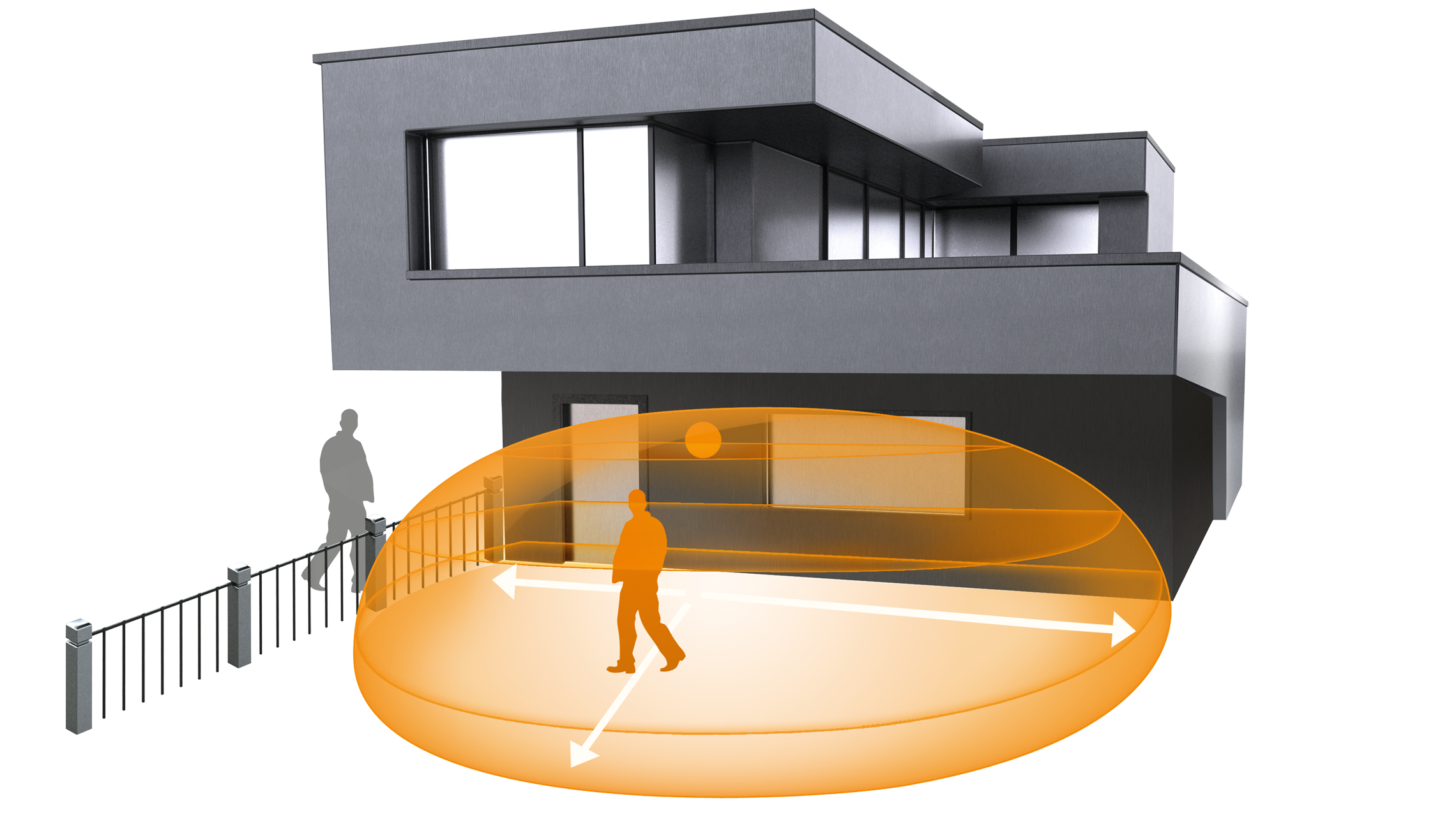

Range detail Detection zone adjustable on 3 axes

Radial range r = 5 m (35 m²)

Tangential range r = 5 m (35 m²)

Mounting height 1,80 – 2,00 m

Optimal mounting height 1,8 m

Connectivity

Networking Yes

Type of networking Master/master

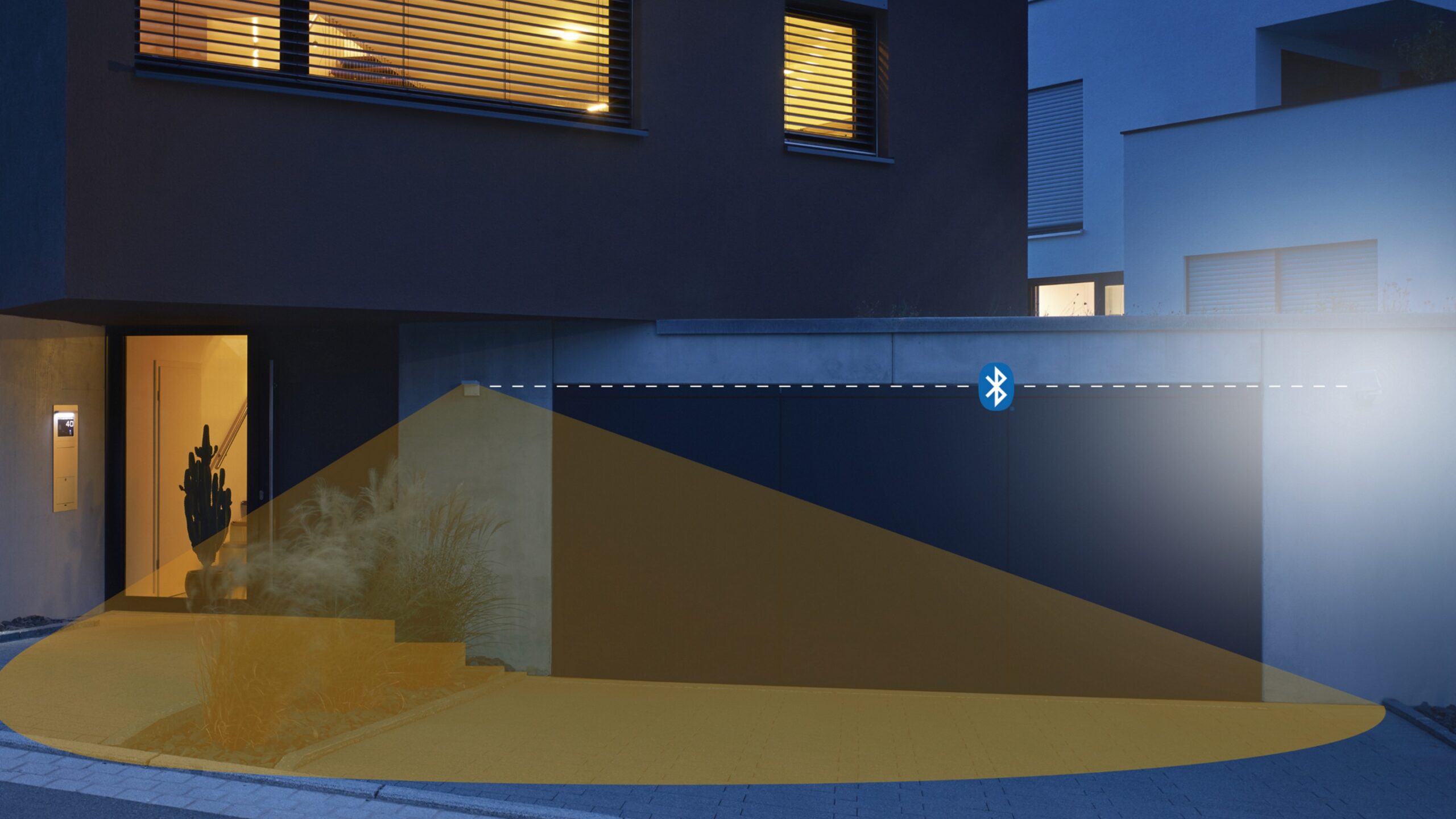

Networking via Cable\nBluetooth

Lighting technology

Soft light start No

Continuous light selectable, 4h

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 5 s – 60 Min.

Base light function No

Main light adjustable No

Functions Normal / test mode\nManual ON / ON-OFF

Settings via Potentiometers\nBluetooth

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP54

Ambient temperature from -20 up to 50 °C

Housing material Plastic

Mounting location wall

Application location Outdoors

Mounting type Surface wiring

Material Plastic

Application room all round the building courtyard & driveway front door outdoors terrace / balcony

Colour Anthracite

RAL colour 7016

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Technical drawing

Sensor detection range

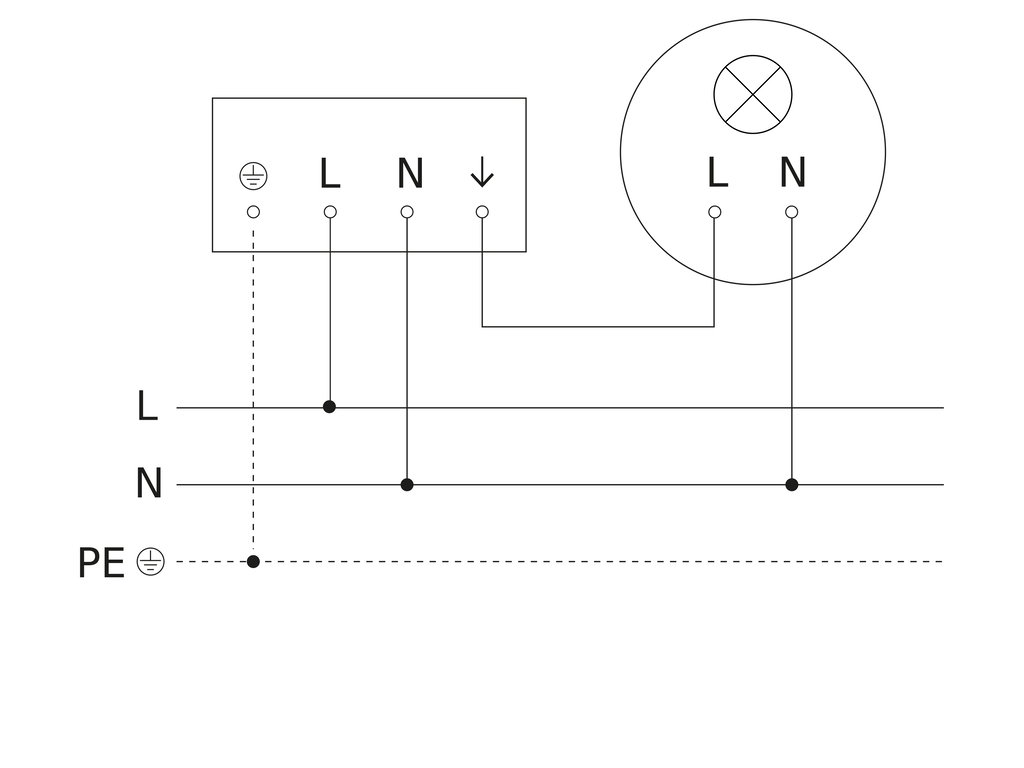

Wiring diagram 1

Master circuit diagram
