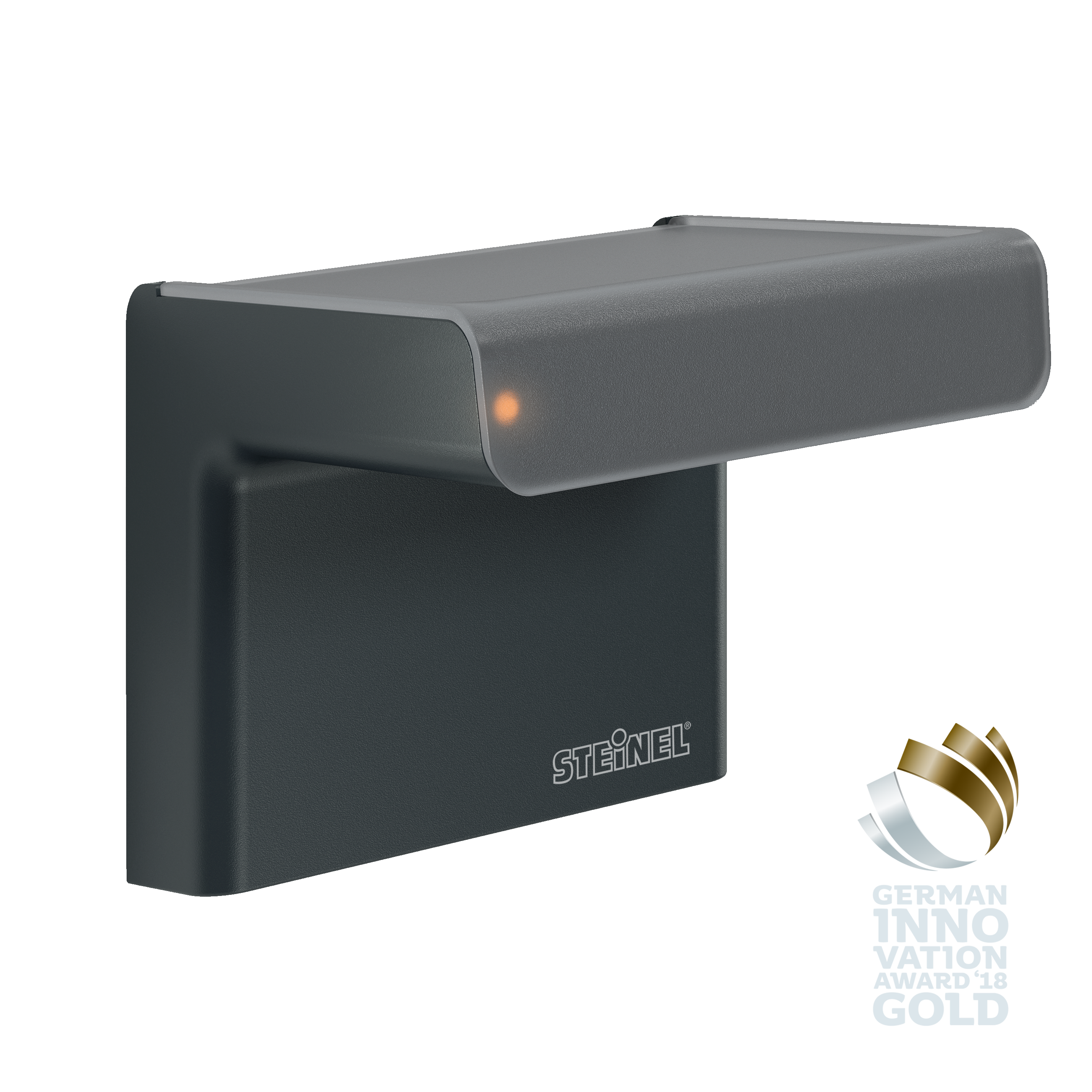

Nevalux iHF 3D KNX black

ELDAS® no. 535 939 301

EAN-No. 4007841 007614

Discontinued

This product is being discontinued and is available while stocks last. No successor product has been announced yet.

Detects what you want it to. Integrates into the building network. iHF 3D KNX motion detector, ideal for facades, carports, parking areas and patios. 160° iHF-sensor with 7 m reach, 3D aerial technology, identifies and distinguishes between moving objects, no inadvertent triggering any more by small animals, very low or high temperatures. Detects everything equally well whichever direction it is approached from, KNX capability.

Control unit for adjusting the detection zone along 3 axes
Control dials behind the designer trim panel
iHF sensor protected in enclosure
UV-resistant plastic
Remote control RC9 included

Identification

Variant black

Version Motion detectors

Model KNX

Dimensions

Dimensions L × W × H 120 x 117 x 120 mm

Electrical

Mains connection 220 – 240 V , 50 / 60 Hz

Switching output 1 resistive 2000 W

Supply voltage detail KNX bus

Sensor technology

Sensor technology iHF (intelligent high-frequency technology)

HF technology 5,8 GHz

Detection angle 160 °

Opening angle 100 °

Sneak-under protection Yes

Electronic scalability Yes

Mechanical scalability No

Range detail Detection zone adjustable on 3 axes

Radial range r = 7 m (68 m²)

Tangential range r = 7 m (68 m²)

Mounting height 1,80 – 2,00 m

Optimal mounting height 1,8 m

Connectivity

KNX functions Light output 1x, Presence output, Light level, Basic light level function, Photo-cell controller, Direction of movement, Distance

With bus coupler Yes

Settings

Twilight setting 2 – 2000 lx

Time setting 0 – 1092 min

Settings via ETS software, Remote control, Bus

With remote control Yes

Twilight setting teach Yes

Housing & material

Protection class (IP) IP54

Ambient temperature -20 – 50 °C

Mounting location wall

Application location Outdoors

Mounting type Surface wiring

Material Plastic

Colour black

RAL colour 9005

Scope of delivery & warranty

Manufacturer warranty 5 years

Sensor detection range

Data sheet User manual

Remote control RC9

Item no. 4007841007638

Remote control Smart Remote

Item no. 009151
