Nevalux iHF 3D KNX - black

Nevalux iHF 3D KNX - black

ELDAS® no. 535 940 301 · EAN-No. 4007841 059637

Technical data Illustrations Downloads
Nevalux

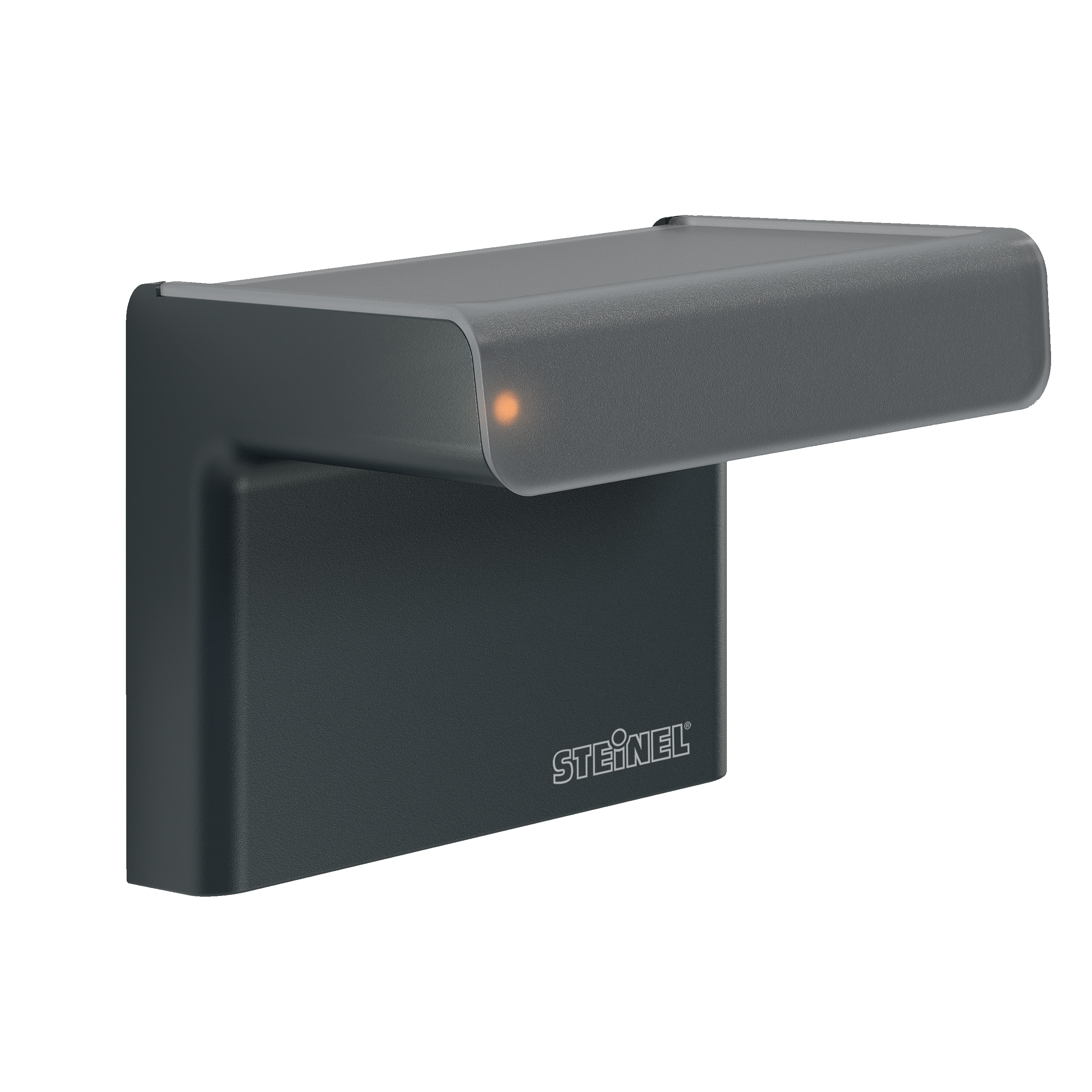

Nevalux iHF 3D KNX - black

ELDAS® no. 535 940 301

EAN-No. 4007841 059637

Discontinued

This product is being discontinued and is available while stocks last. No successor product has been announced yet.

Price: Please log in to see prices

Detects what you want it to. Integrates into the building network. iHF 3D KNX motion detector, ideal for facades, carports, parking areas and patios. 160° iHF-sensor with 5 m reach, 3D aerial technology, identifies and distinguishes between moving objects, no inadvertent triggering any more by small animals, very low or high temperatures. Detects everything equally well whichever direction it is approached from. The new Bluetooth version lets you start the programming mode and update the software by app.

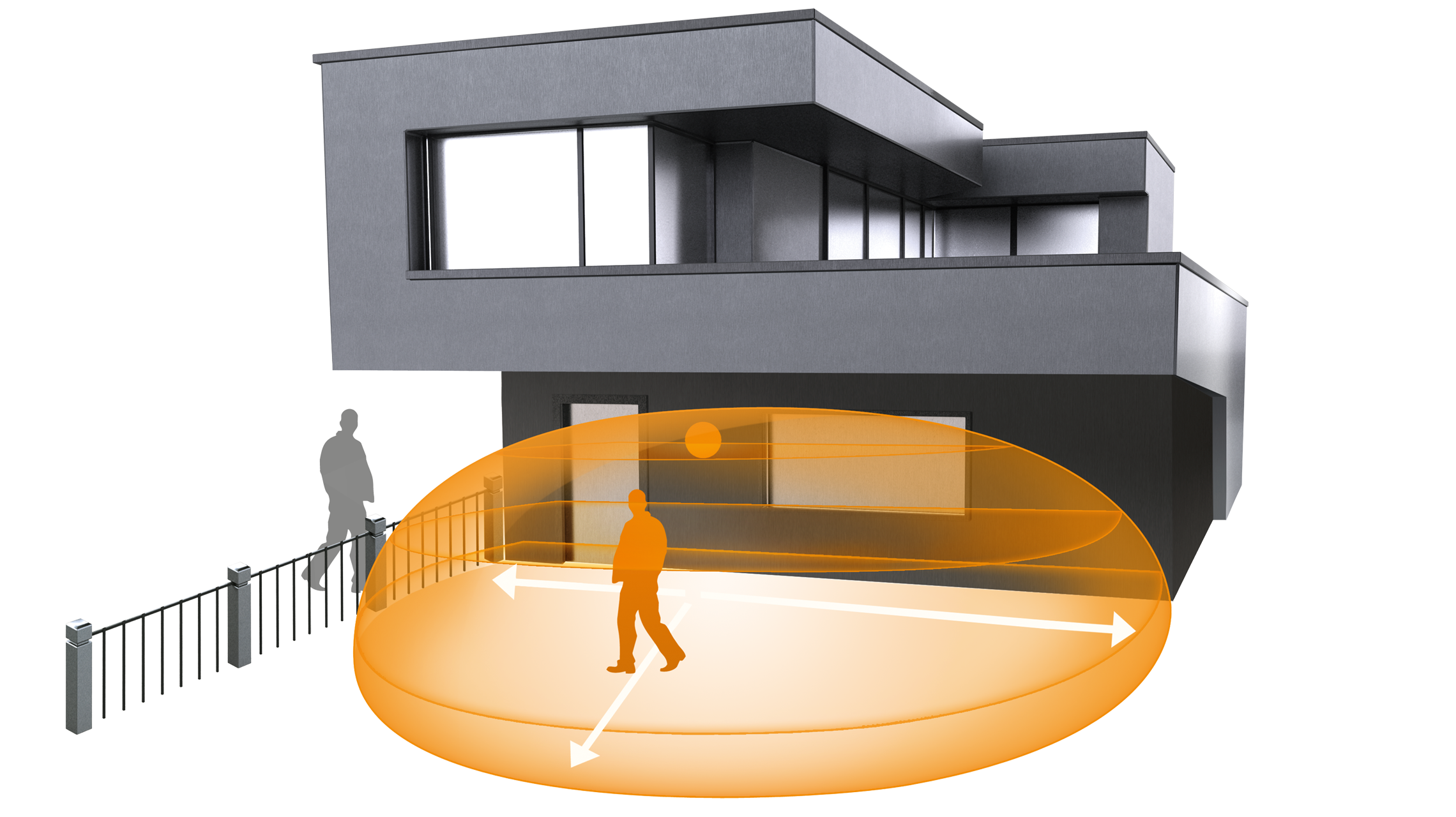

  • Control unit for adjusting the detection zone along 3 axes

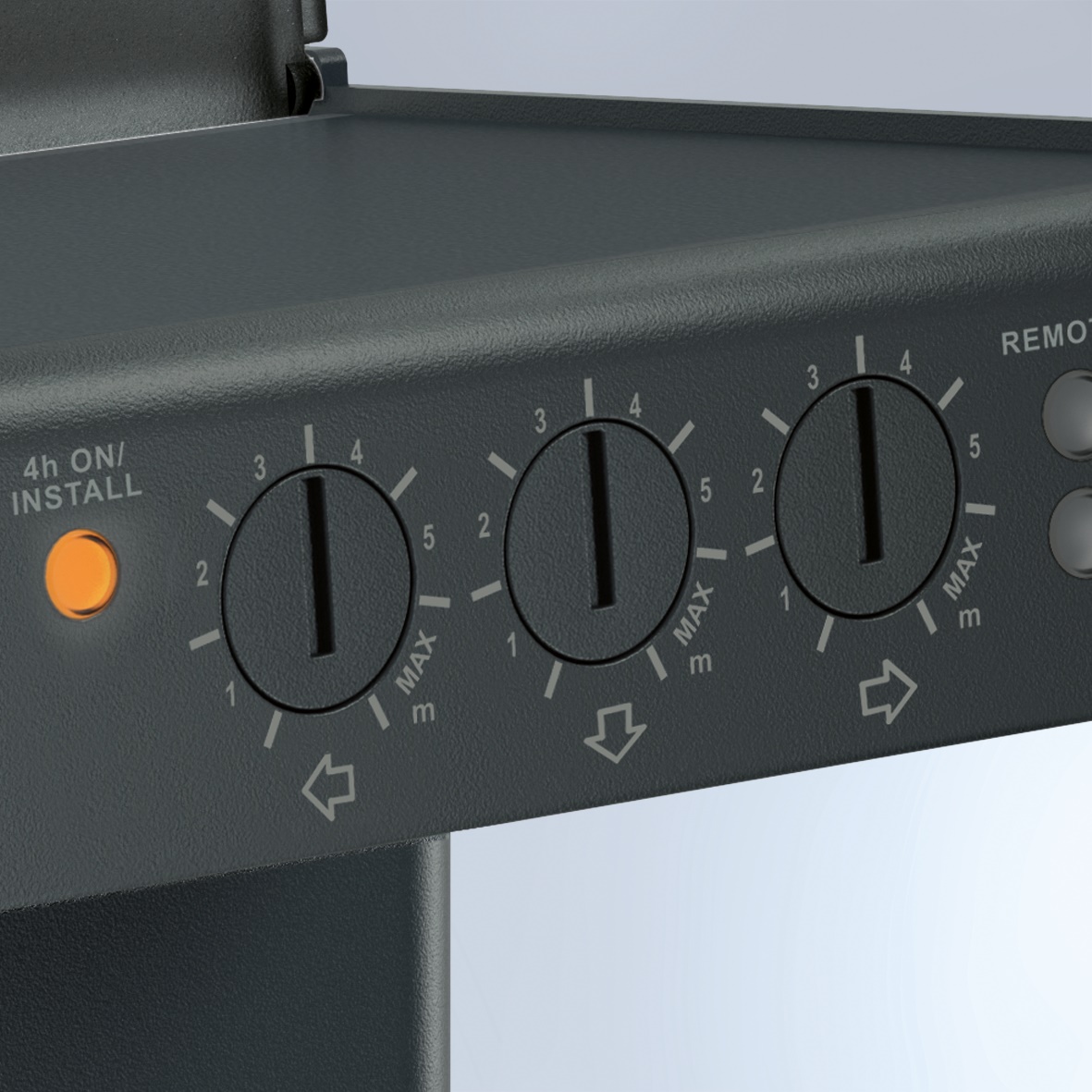

  • Control dials behind the designer trim panel
  • iHF sensor protected in enclosure
  • UV-resistant plastic

Identification

Version Motion detectors

Variants

Version KNX
Colour Black

Dimensions

Dimensions L × W × H 120 x 117 x 120 mm

Electrical

Supply voltage detail KNX bus

Sensor technology

Max. mounting height 2,00 m
Sensor technology iHF (intelligent high-frequency technology)
Transmission power < 1 mW
HF technology 5,8 GHz
With motion detector Yes
Detection angle 160 °
Opening angle 100 °
Sneak-under protection Yes
Segment-by-segment masking Yes
Electronic scalability Yes
Mechanical scalability No
Range detail Detection zone adjustable on 3 axes
Radial range r = 5 m (35 m²)
Tangential range r = 5 m (35 m²)
Mounting height 1,80 – 2,00 m
Optimal mounting height 1,8 m

Connectivity

Networking Yes
Type of networking Master/master\nMaster/slave
Networking via KNX bus
KNX functions Photo-cell controller\nBasic light level function\nLight level\nLight output 2x\nPresence output\nDay / night function\nLogic gate\nDirection of movement\nDistance\nSabotage protection
With bus coupler Yes

Lighting technology

Soft light start Yes
Continuous light selectable
Constant light regulation No

Settings

Twilight switch Yes
Twilight setting 10 – 2000 lx
Time setting 10 s – 1092 Min.
Base light function Yes
Base light function time 10s - 18h 12min 15s
Main light adjustable 0 - 100 %
Functions Presence detector logic
Settings via ETS software\nBus\nBluetooth\nApp\nPotentiometers\nSmartphone
Twilight setting teach Yes
Base light function in percent 0 %
Base light function percent from 0

Housing & material

Protection class (IP) IP54
Ambient temperature from -20 up to 50 °C
Housing material Plastic
Mounting location wall
Application location Outdoors
Mounting type Surface wiring
Material Plastic
Application room all round the building courtyard & driveway front door outdoors terrace / balcony
Colour black
RAL colour 9005

Scope of delivery & warranty

Manufacturer warranty 5 years
Corner wall bracket included No

Technical drawing

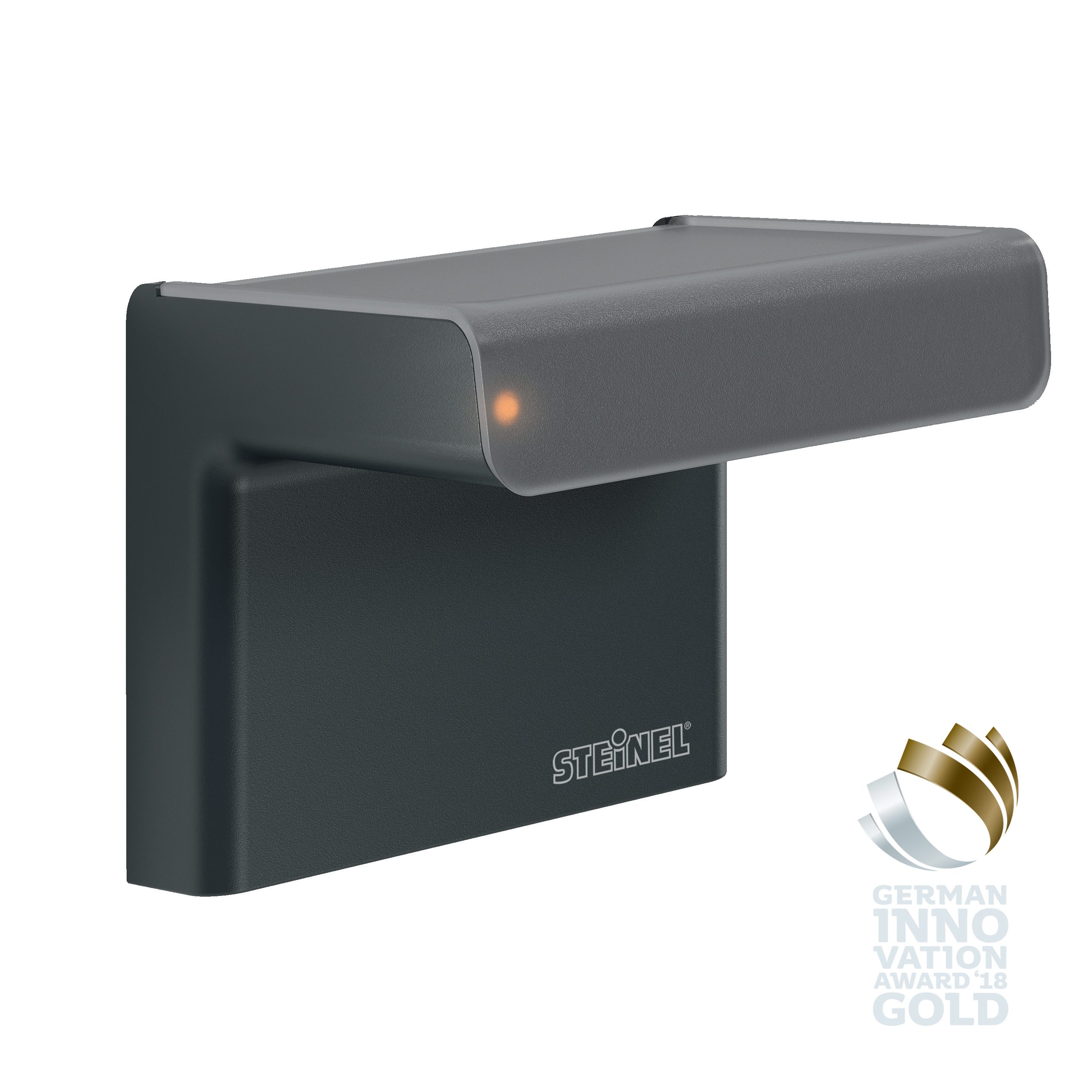

Sensor detection range
