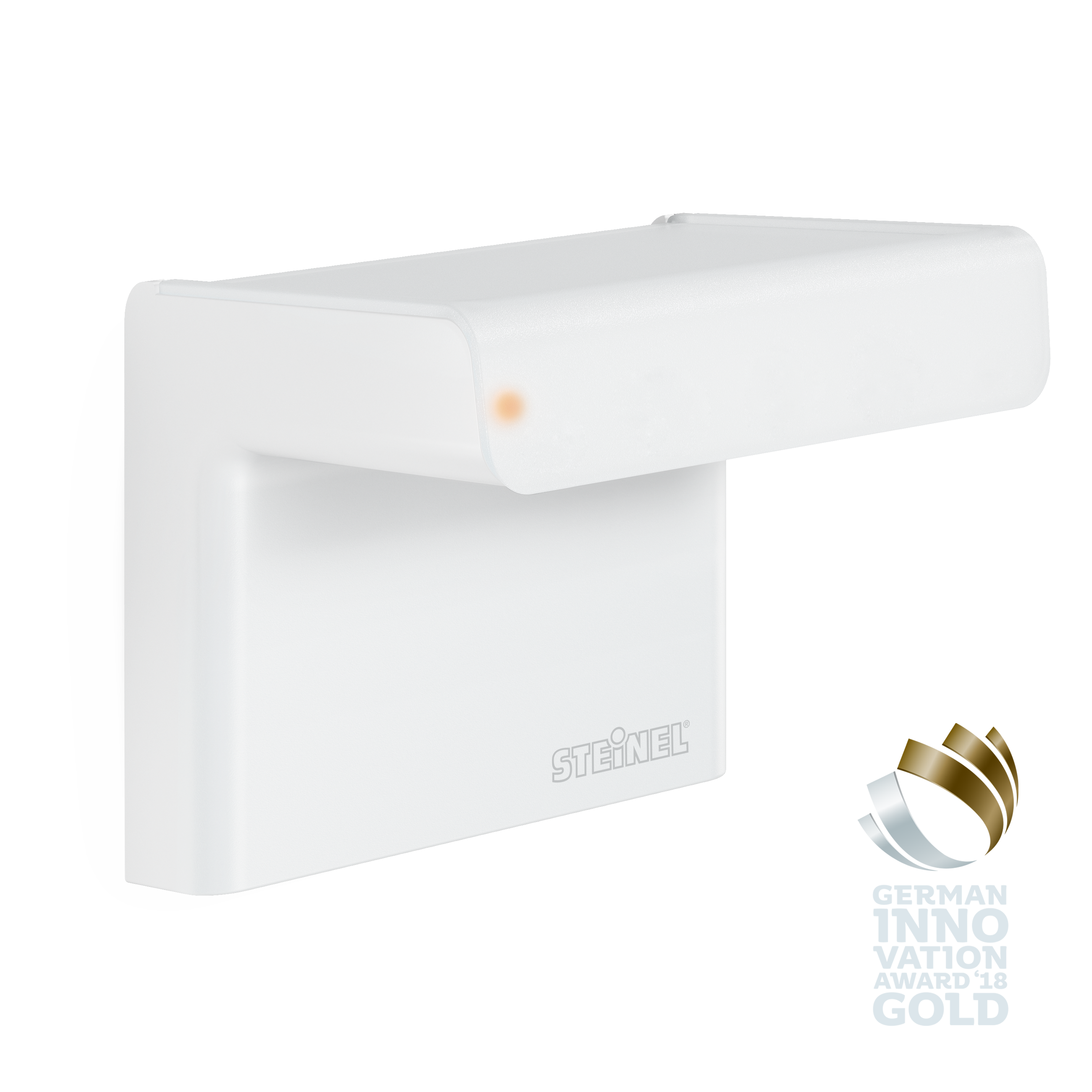

Nevalux iHF 3D white

ELDAS® no. 535 939 200

EAN-No. 4007841 007577

This product is being replaced by a successor product.

Go to successor product · iHF 3D COM1 - white (4007841066222)

Makes all the difference outside. Exactly where you want. iHF 3D motion detector, ideal for facades, carports, parking areas and patios. 160° iHF-sensor with 7 m reach, 3D aerial technology, identifies and distinguishes between moving objects, no inadvertent triggering any more by small animals, very low or high temperatures. Detects everything equally well whichever direction it is approached from.

Control unit for adjusting the detection zone along 3 axes

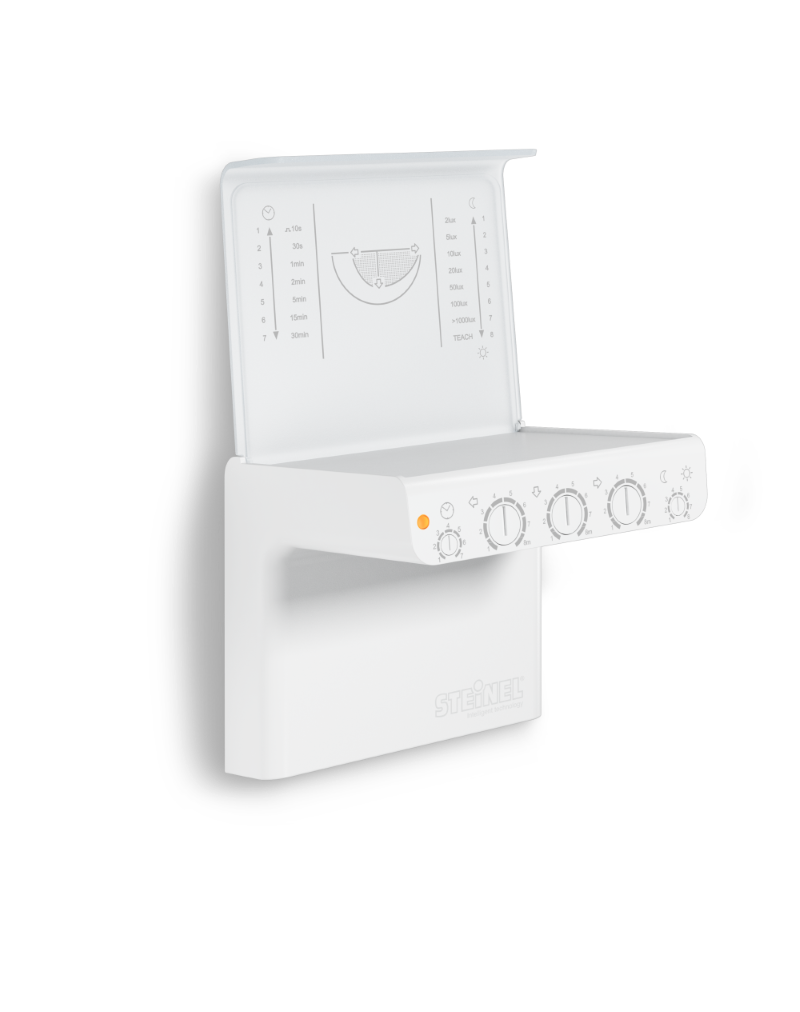

Control dials behind the designer trim panel
iHF sensor protected in enclosure
UV-resistant plastic
Remote control RC9 included

Identification

Variant white

Version Motion detectors

Variants

Version 230V 1 channel

Colour White

Dimensions

Dimensions L × W × H 120 x 117 x 120 mm

Electrical

Mains connection 120 – 250 V , 50 / 60 Hz

Switching output 1 resistive 2000 W

Supply voltage detail 500 VA max., 120 V

Sensor technology

Sensor technology iHF (intelligent high-frequency technology)

HF technology 5,8 GHz

Detection angle 160 °

Sneak-under protection Yes

Electronic scalability Yes

Mechanical scalability No

Range detail Detection zone adjustable on 3 axes

Radial range r = 7 m (68 m²)

Tangential range r = 7 m (68 m²)

Mounting height 1,80 – 2,00 m

Optimal mounting height 1,8 m

Connectivity

Networking Yes

Type of networking Master/master

Lighting technology

Constant light regulation No

Settings

Twilight setting 2 – 2000 lx

Time setting 10 sec – 30 min

Base light function No

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP54

Ambient temperature -20 – 50 °C

Mounting location wall

Application location Outdoors

Mounting type Surface wiring

Material Plastic

Colour white

RAL colour 9010

Scope of delivery & warranty

Manufacturer warranty 5 years

Sensor detection range

Data sheet User manual

Remote control RC9

Item no. 4007841007638

Remote control Smart Remote

Item no. 009151
