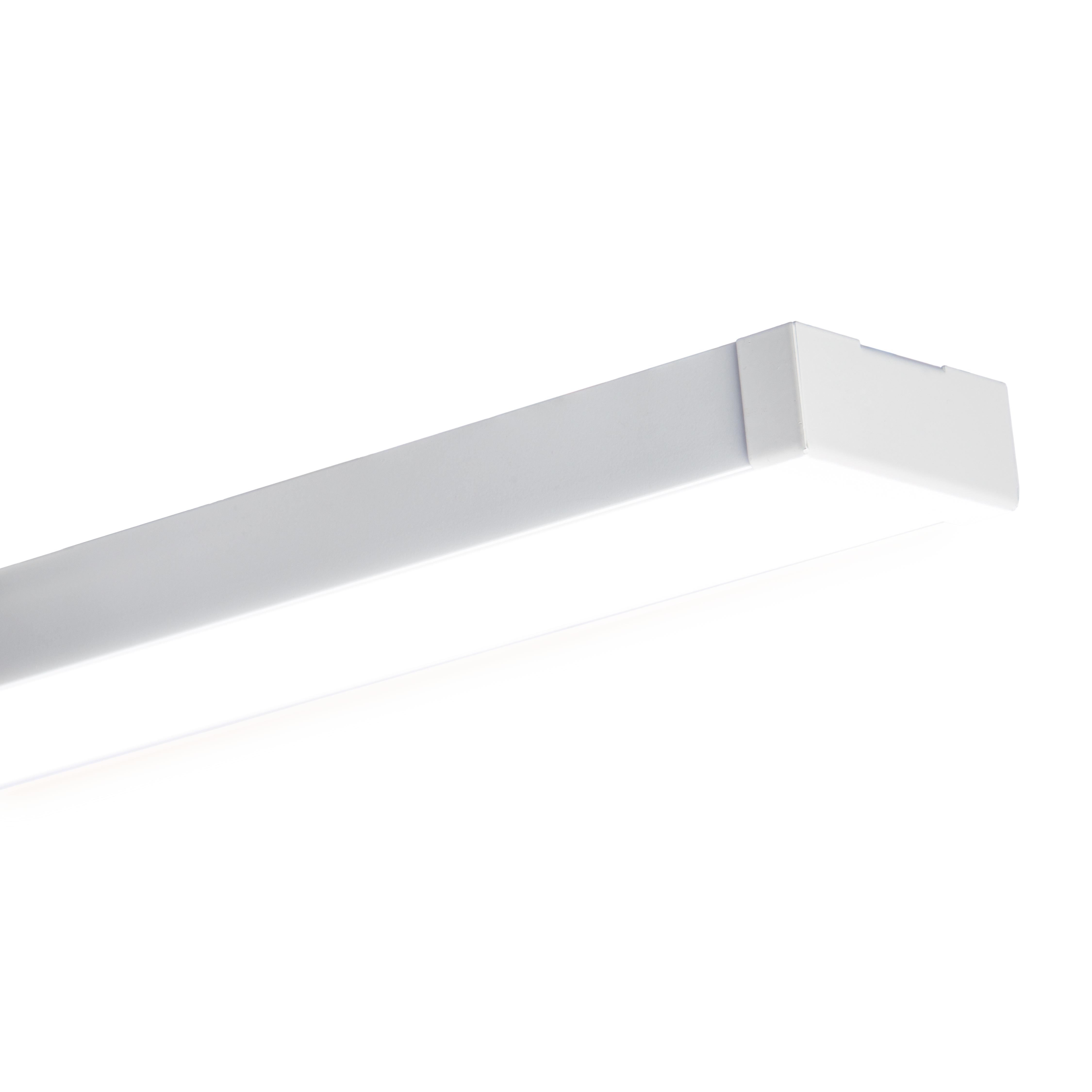

The universal trunking insert imani from nevalux is designed for professional refurbishment of existing trunking with T5 or T8 fluorescent tubes. The luminaire uses the existing trunking installation including existing through-wiring. Old light modules can be replaced with new modules easily, quickly and without tools. The insert fits most trunking systems available on the market.
- The universal trunking insert imani from nevalux is designed for professional refurbishment of existing trunking with T5 or T8 fluorescent tubes. The luminaire uses the existing trunking installation including existing through-wiring. Old light modules can be replaced with new modules easily, quickly and without tools. The insert fits most trunking systems available on the market.
Variants
Luminous flux
11570 lm
Dimensions
Dimensions L × W × H
2025 x 65 x 30 mm
Electrical
Mains connection
200...240 V / 50 – 60 Hz
Power
91 W
Replaceable driver
Yes
Type of wiring
Suitable for through wiring
LED rated current
350 mA
Maximum number of luminaires per circuit breaker
C10: 16x, C16: 26x, B10: 10x , B16: 16x
Sensor technology
With motion detector
No
With light sensor
No
Lighting technology
Colour temperature
4000 K
LED colour deviation
SDCM3
Colour rendering index
80-89
Illuminant
LED
Luminous flux
11570 lm
Beam angle
105°
Luminaire luminous efficacy
127 lm/W
Glare value
UGR < 24
Lifetime
LED lifespan (25 °C)
50000 h
Settings
DALI dimming
Yes
With emergency light
No
Suitable for light band configuration
Yes
Housing & material
Protection class (IP)
IP40
Protection class
I
Ambient temperature
-20...45 °C
Housing material
Aluminum
Cover material
Diffusor opal
Mounting type
Use in continuous row
Colour
white
Scope of delivery & warranty
Manufacturer warranty
5 years
Certificates & EPREL
EPREL energy efficiency class
D

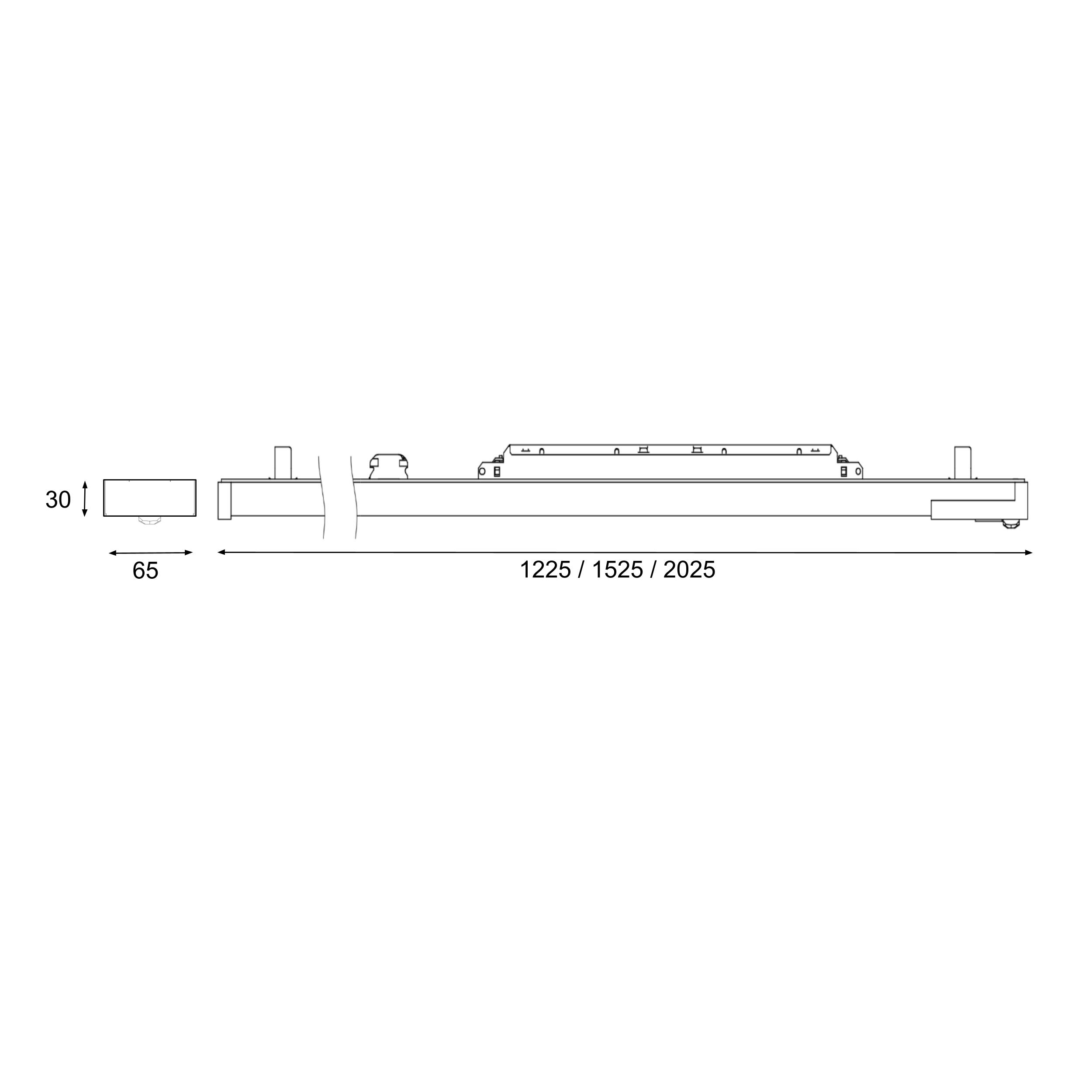

Technical drawing

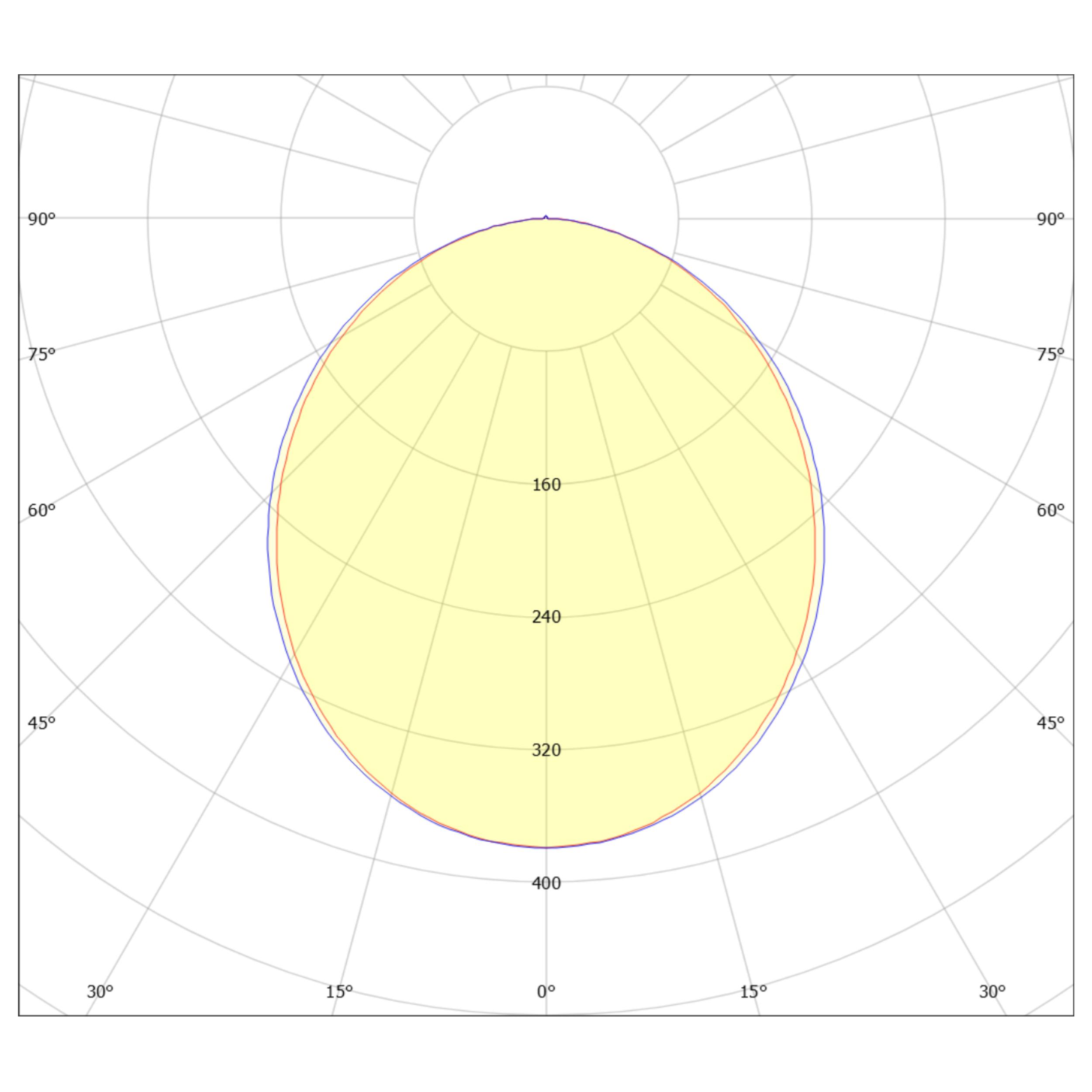

Lichtverteilungskurve

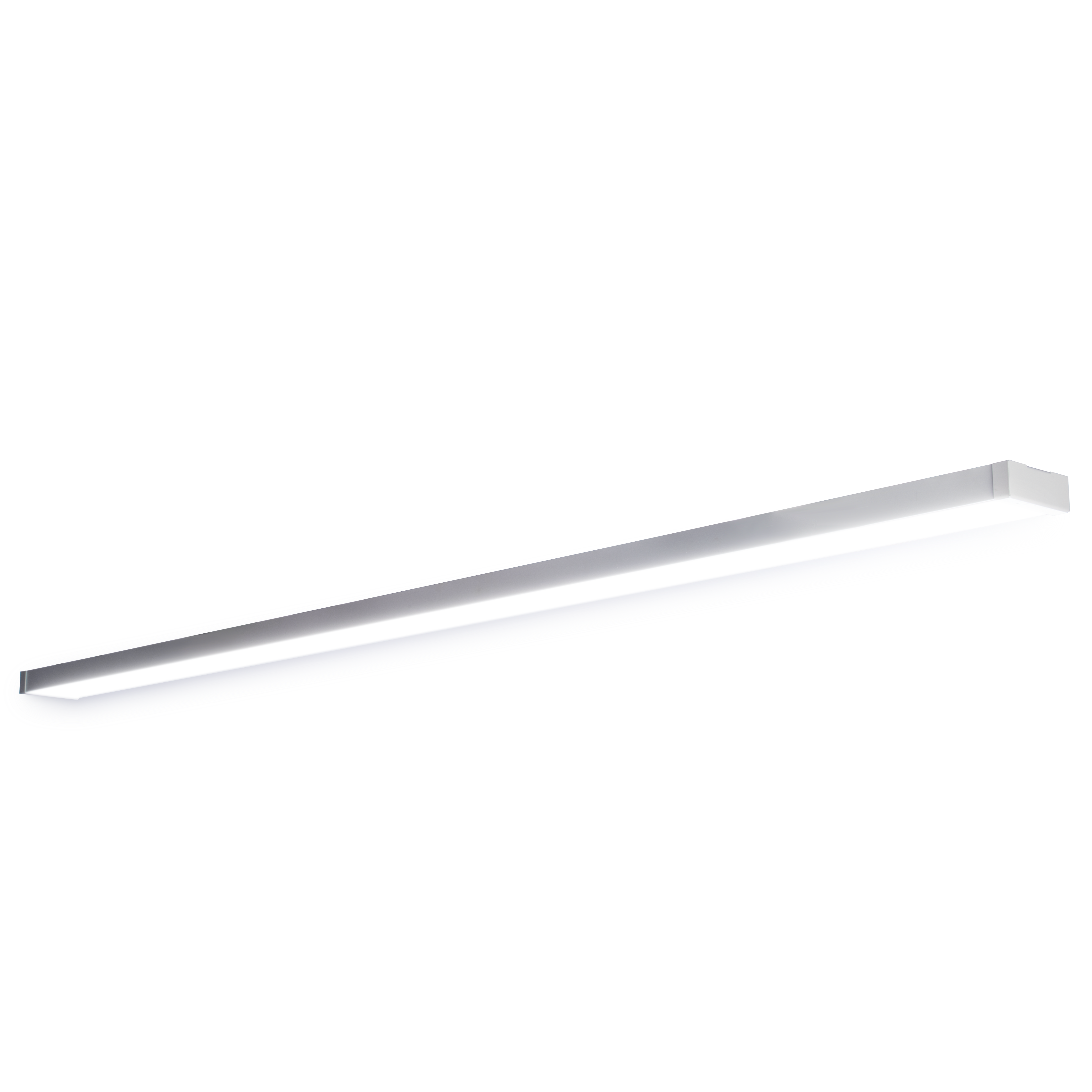

Sensor detection range

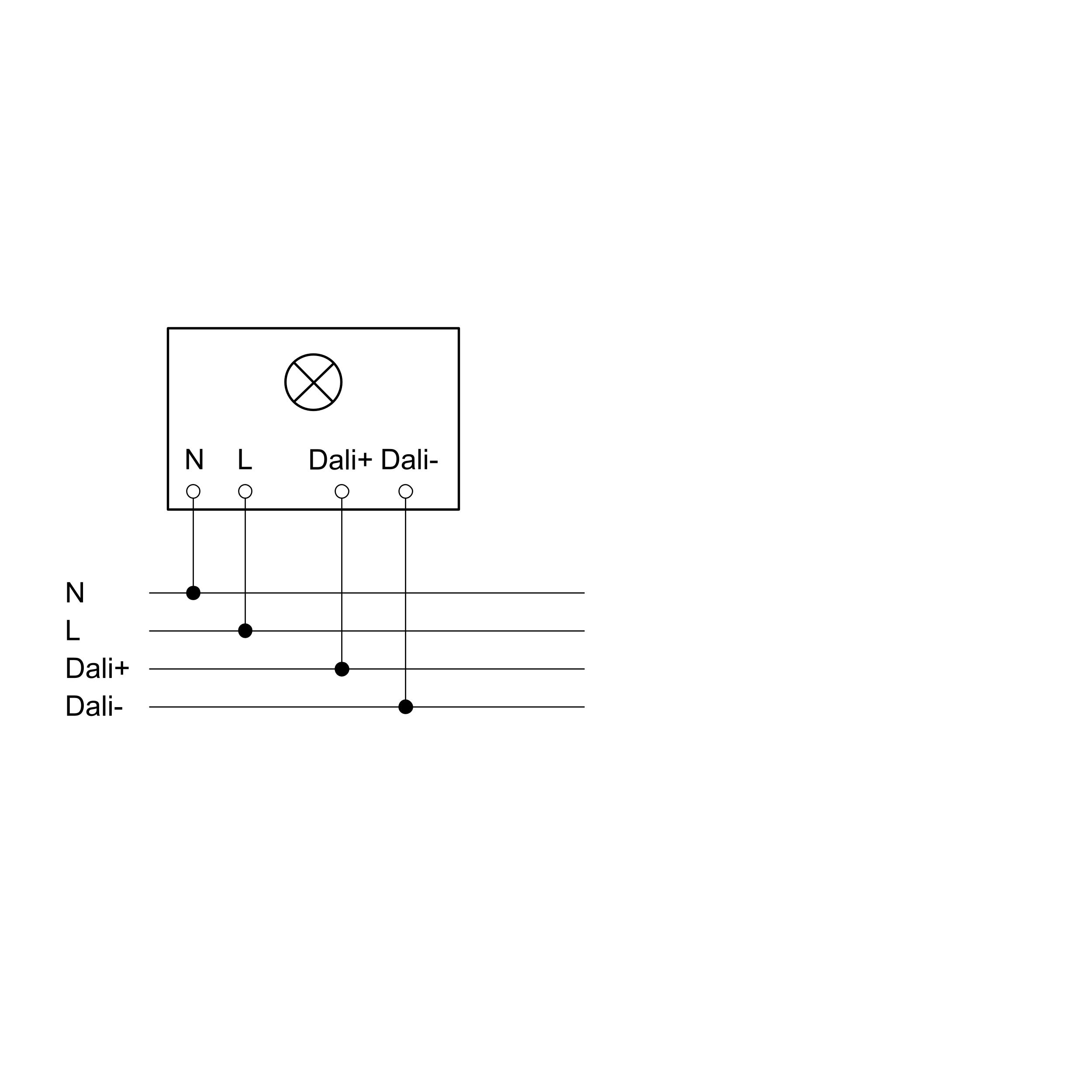

Wiring diagram 1
Wiring diagram

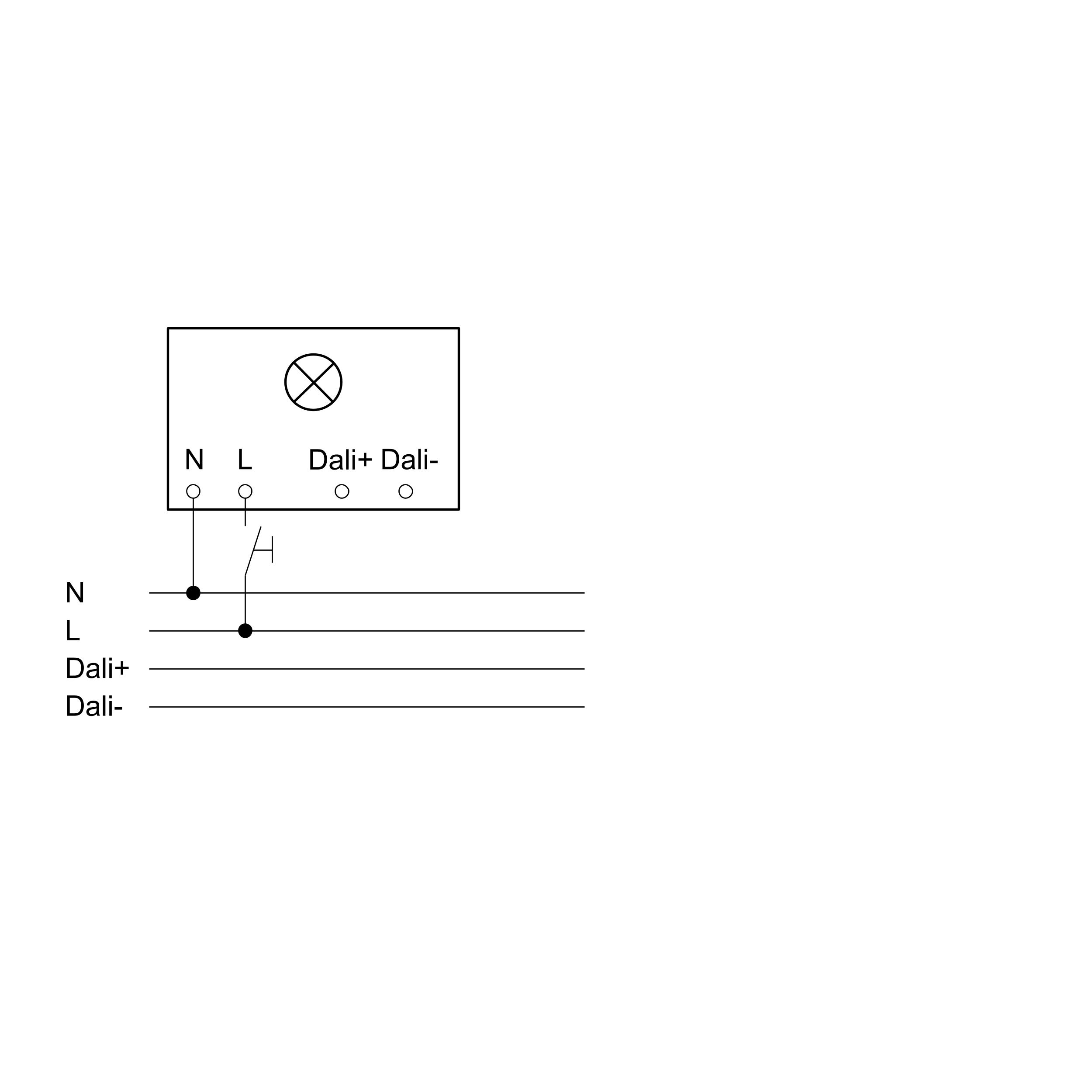

Wiring diagram 2
Wiring diagram
