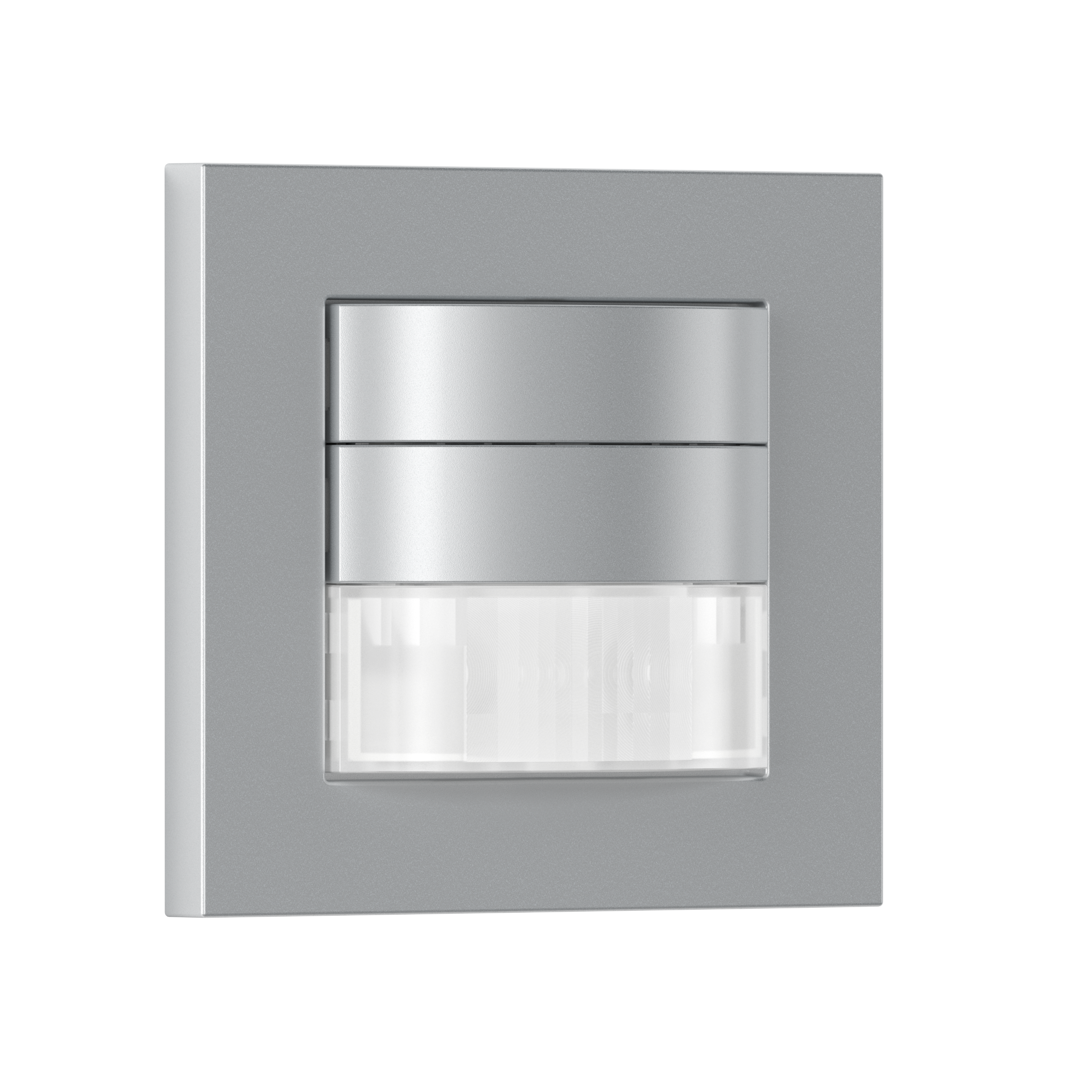

Nevalux IR 180 KNX - silver
ELDAS® no. 535 941 678
EAN-No. 4007841 032968
This product is being replaced by a successor product.
Go to successor product · IR 180 KNX - white (4007841032975)The new benchmark. High-precision IR 180 infrared presence sensor with a reach of 20 m. Ideal for new builds. 180° angle of coverage. Fast and easy 3-wire installation. Attractive design. Integrated button for manual override. The KNX version also provides temperature and air humidity readings.
- Optional adapters made of UV-resistant plastic
Identification
Variant
KNX - silver
Version
Presence detector
Model
KNX
Dimensions
Dimensions L × W × H
80 x 80 x 20,5 mm
Electrical
Supply voltage detail
KNX bus
Sensor technology
Sensor technology
passive infrared
Detection angle
180 °
Opening angle
90 °
Sneak-under protection
Yes
Electronic scalability
Yes
Mechanical scalability
No
Radial range
r = 4 m (25 m²)
Tangential range
r = 20 m (628 m²)
Presence range
r = 4 m (25 m²)
Optimal mounting height
1,2 m
Connectivity
KNX functions
Light output 4x, Presence output, Light level, Constant-lighting control, Basic light level function, HVAC output, Integrated button, Temperature output, Humidity output
With bus coupler
No
Settings
Twilight setting
2 – 1000 lx
Time setting
60 sec – 255 min
Base light function time
Permanently ON, 1-255 min, all night
Twilight setting teach
Yes
Base light function in percent
10 – 50 %
Housing & material
Protection class (IP)
IP20
Ambient temperature
0 – 40 °C
Mounting location
wall
Application location
Indoors
Mounting type
Concealed wiring
Material
Plastic
Colour
Silver
RAL colour
9010
Scope of delivery & warranty
Manufacturer warranty
5 years
Other
Application, location, room
One-person office, corridor, aisle, side room, stairwell, washroom, wc, equipment room
