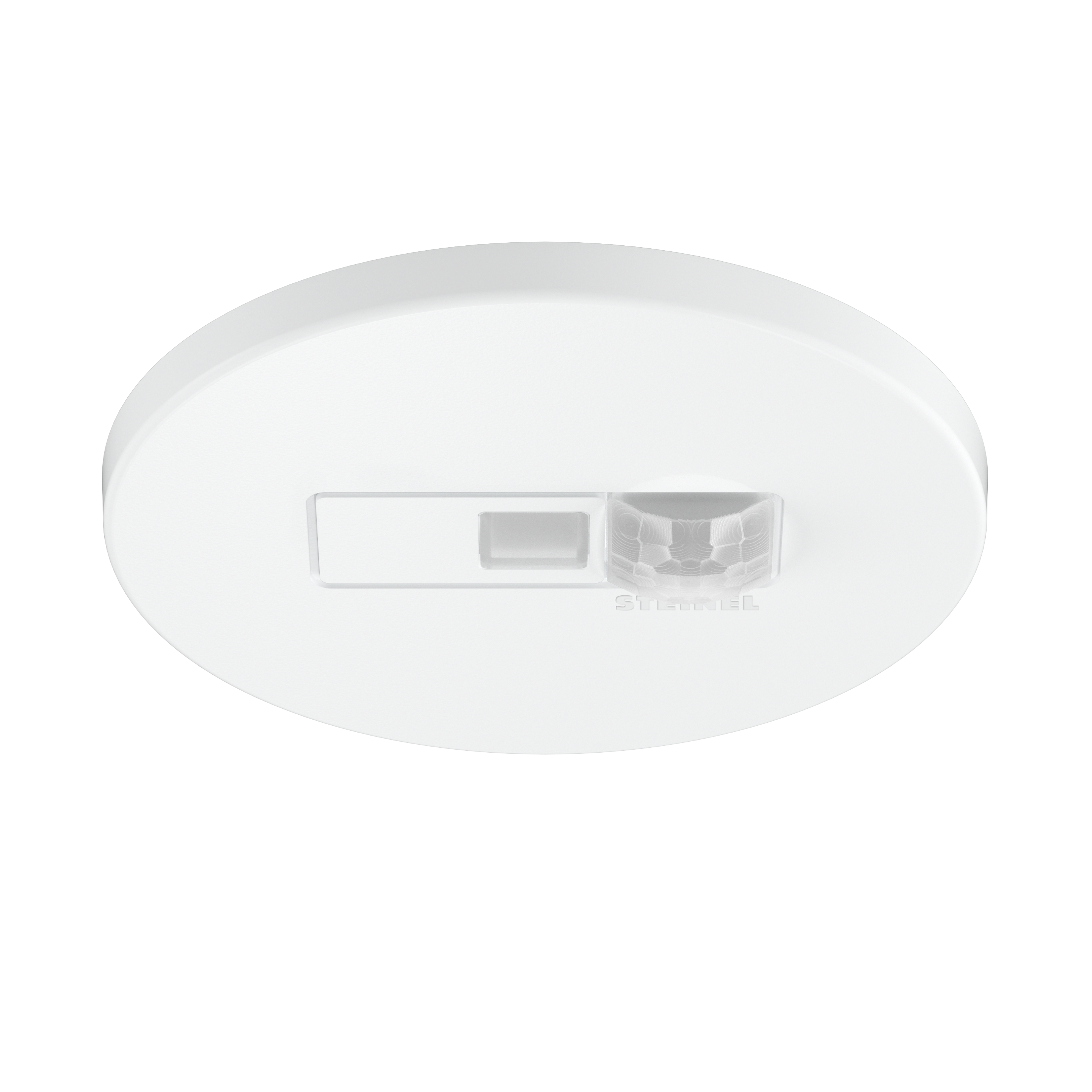

Nevalux IR Micro LiveLink
ELDAS® no. 535 941 960
EAN-No. 4007841 009748
This product is being replaced by a successor product.
Go to successor product · IR Micro DALI-2 Input Device (4007841057732)Small. Round. Slim. Compact, inconspicuous single workstation solution. IR Micro LiveLink 360° passive infrared sensor with a presence detection zone of 4 x 4 m (presence and radial) or 6 x 6 m (tangential). Easy step-by-step configuration via LiveLink app. With patented multi-segment pyro sensor and eight user-friendly functions. Max. mounting height: 2.8 m. Colour finish: white.
Identification
Variant
LiveLink
Version
Presence detector
Model
LiveLink
Dimensions
Dimensions Ø × H
80 x 21 mm
Electrical
Mains connection
16 V
Supply voltage detail
DALI bus
Control output DALI
Addressable/slave
Livelink values
Light level, Motion detection
Sensor technology
Sensor technology
passive infrared
Detection angle
360 °
Opening angle
160 °
Sneak-under protection
Yes
Electronic scalability
No
Mechanical scalability
No
Radial range
4 x 4 m (16 m²)
Tangential range
6 x 6 m (36 m²)
Switching zones
168 switching zones
Mounting height
2,00 – 4,00 m
Presence range
4 x 4 m (16 m²)
Optimal mounting height
2,8 m
Connectivity
Networking
Yes
Number of DALI participants
2
Settings
Twilight setting
2 – 2000 lx
Time setting
60 sec – 60 min
Settings via
LiveLink app
With remote control
No
Twilight setting teach
Yes
Housing & material
Protection class (IP)
IP20
Ambient temperature
0 – 40 °C
Mounting location
ceiling
Application location
Indoors
Mounting type
Concealed wiring
Material
Plastic
Colour
white
RAL colour
9010
Scope of delivery & warranty
Manufacturer warranty
5 years
Other
Application, location, room
One-person office, side room, washroom, wc
