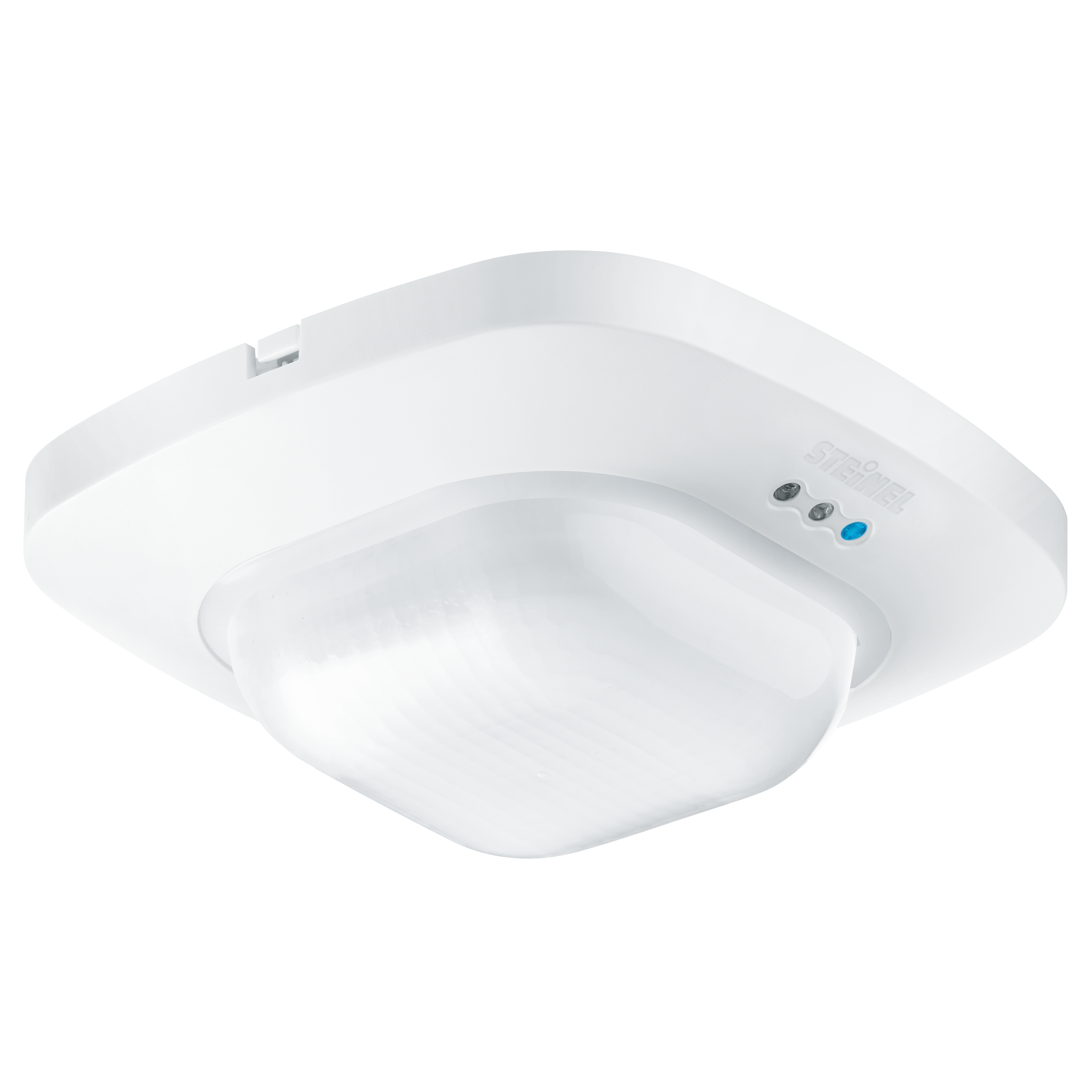

Nevalux IR Quattro HD DIM
EAN-No. 4007841 002787
This product is being replaced by a successor product.
Go to successor product · IR Quattro HD 24m DALI-2 APC - concealed (002756)Detection no finer! Infrared presence detector Presence Control PRO IR Quattro HD DIM for indoors, ideal for medium to large-size offices, conference and meeting rooms, classrooms and lecture theatres, sports halls and warehouses, installation height up to 10 m, for controlling and switching light 'ON' and 'OFF', 4800 switching zones for the ultimate in detection quality, presence detection over a true 64 m2, square detection zone, mechanically scalable.
- 4 pyros with DSP (Digital Signal Processing)
- Optional remote controls
- Optional surface-mounting adapter
- Optional guard cage
Identification
Variant
DIM
Version
Presence detector
Dimensions
Dimensions L × W × H
120 x 120 x 71 mm
Electrical
Mains connection
230 V, 50 / 60 Hz
Number of ECGs DIM interface
50
Sensor technology
Sensor technology
passive infrared
Detection angle
360 °
Sneak-under protection
Yes
Segment-by-segment masking
No
Electronic scalability
No
Mechanical scalability
Yes
Radial range
8 x 8 m (64 m²)
Tangential range
20 x 20 m (400 m²)
Switching zones
4800 switching zones
Mounting height
2,50 – 10,00 m
Presence range
8 x 8 m (64 m²)
Optimal mounting height
2,8 m
Connectivity
Networking
Yes
Type of networking
Master/slave, Master/master
Lighting technology
Constant light regulation
Yes

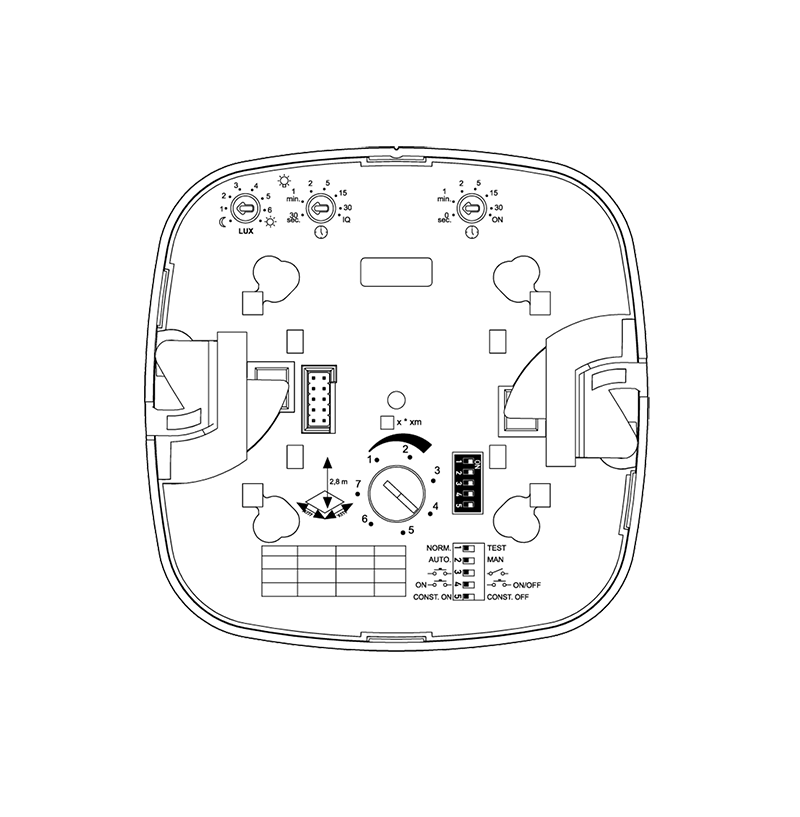

Settings
Twilight setting
100 – 1000 lx
Time setting
30 sec – 30 min
Base light function
Yes
Functions
Normal / test mode, Semi-/fully automatic, Pushbutton / switch mode, Manual ON / ON-OFF, Constant-lighting control ON-OFF
With remote control
No
Twilight setting teach
Yes
Housing & material
Protection class (IP)
IP20
Ambient temperature
-25 – 55 °C
Mounting location
ceiling
Application location
Indoors
Mounting type
Concealed wiring
Material
Plastic
Colour
white
RAL colour
9010
Scope of delivery & warranty
Manufacturer warranty
5 years
Other
Application, location, room
Open-plan office, high-bay warehouse, conference room, sports hall, classroom
