Nevalux IR Quattro HD LiveLink

ELDAS® no. 535 930 307

EAN-No. 4007841 009717

This product is being replaced by a successor product.

Go to successor product · IR Quattro HD 24m DALI-2 Input Device (057497)

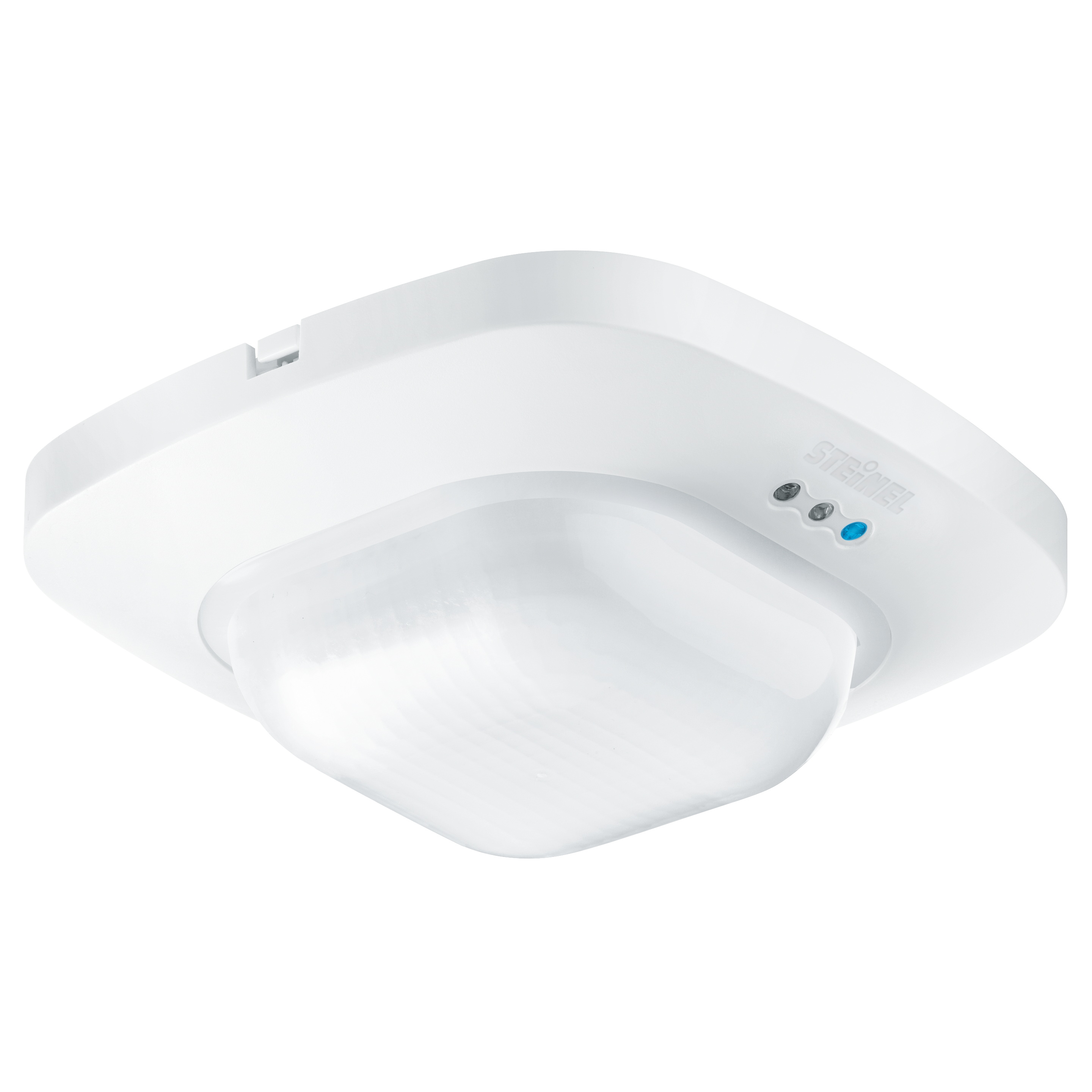

Detection no finer! Infrared presence detector Presence Control PRO IR Quattro HD LiveLink for indoors, ideal for medium to large-size offices, conference and meeting rooms, classrooms and lecture theatres, sports halls and warehouses, installation height up to 10 m, for integration into the LiveLink system, 4800 switching zones for the ultimate in detection quality, presence detection over a true 64 m2, square detection zone, mechanically scalable.

4 pyros with DSP (Digital Signal Processing)
Optional surface-mounting adapter (IP 54, KNX)
Optional guard cage
Settings via LiveLink app

Identification

Variant LiveLink

Version Presence detector

Model LiveLink

Dimensions

Dimensions L × W × H 120 x 120 x 50 mm

Electrical

Livelink values Light level, Motion detection

Sensor technology

Sensor technology passive infrared

Detection angle 360 °

Opening angle 160 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability No

Mechanical scalability Yes

Radial range 8 x 8 m (64 m²)

Tangential range 20 x 20 m (400 m²)

Switching zones 4800 switching zones

Mounting height 2,50 – 10,00 m

Presence range 8 x 8 m (64 m²)

Optimal mounting height 2,8 m

Connectivity

Number of DALI participants 3

With bus coupler Yes

Settings

Time setting 30 sec – 60 min

Settings via LiveLink app

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP20

Mounting location ceiling

Application location Indoors

Mounting type Concealed wiring

Material Plastic

Colour white

RAL colour 9010

Scope of delivery & warranty

Manufacturer warranty 5 years

Other

Application, location, room Open-plan office, high-bay warehouse, conference room, sports hall, classroom

Data sheet User manual

Control PRO guard cage

Item no. 003036

Remote control Smart Remote

Item no. 009151
