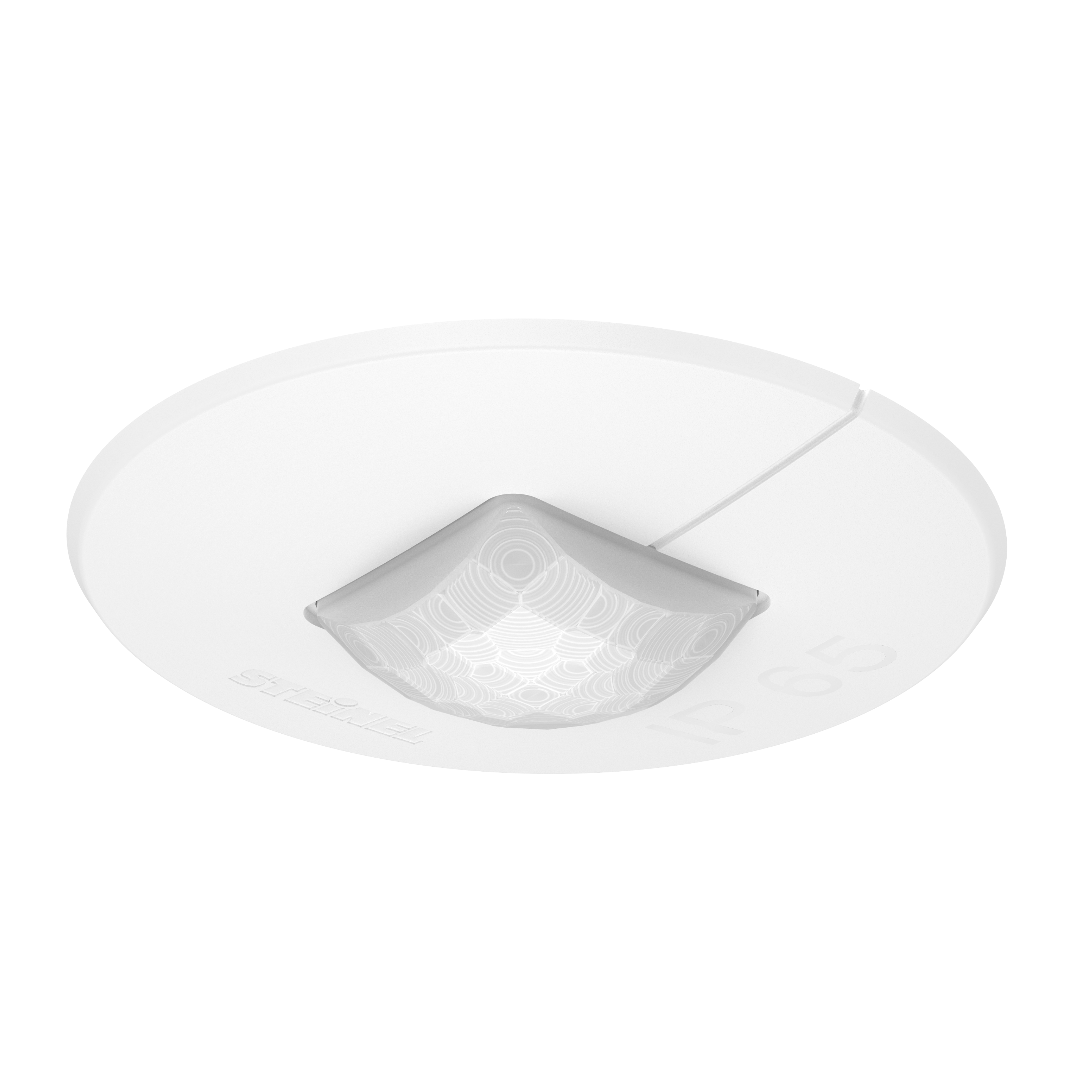

Nevalux IR Quattro MICRO KNX

ELDAS® no. 535 933 808

EAN-No. 4007841 053864

This product is being replaced by a successor product.

Go to successor product · IR Quattro MICRO 6m KNX - white (064129)

Small sensor. Great performance. The IR Quattro MICRO meets the wish of many architects and planners for a sensor that's as inconspicuous as possible. It impresses with its compact size after installation, low overall height and a micro precision lens (15 x 15 mm). At the same time, the small 360° infrared presence puts on a great performance, covering 36 m². IP65 certification also makes it suitable for rooms exposed to moisture.

Miniature precision infrared lens
With spring clips
Can only be set using optional remote controls

Identification

Variant KNX

Version Presence detector

Model KNX

Dimensions

Dimensions Ø × H 43 x 70 mm

Electrical

Mains connection 30 V

Own consumption 0,5 W

Sensor technology

Sensor technology passive infrared

Detection angle 360 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability No

Mechanical scalability No

Radial range 4 x 4 m (16 m²)

Tangential range 6 x 6 m (36 m²)

Switching zones 168 switching zones

Mounting height 2,00 – 5,00 m

Presence range 4 x 4 m (16 m²)

Optimal mounting height 2,8 m

Connectivity

Networking Yes

KNX functions HVAC output, Basic light level function, Constant-lighting control, Light output 4x, Presence output, Light level

With bus coupler Yes

Lighting technology

Constant light regulation Yes

Settings

Twilight setting 2 – 1000 lx

Time setting 60 sec – 255 min

Base light function Yes

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP65

Ambient temperature -25 – 55 °C

Mounting location ceiling

Application location Indoors

Mounting type Installation

Material Plastic

Colour white

RAL colour 9010

Scope of delivery & warranty

Manufacturer warranty 5 years

Other

Application, location, room One-person office, side room, wc, washroom

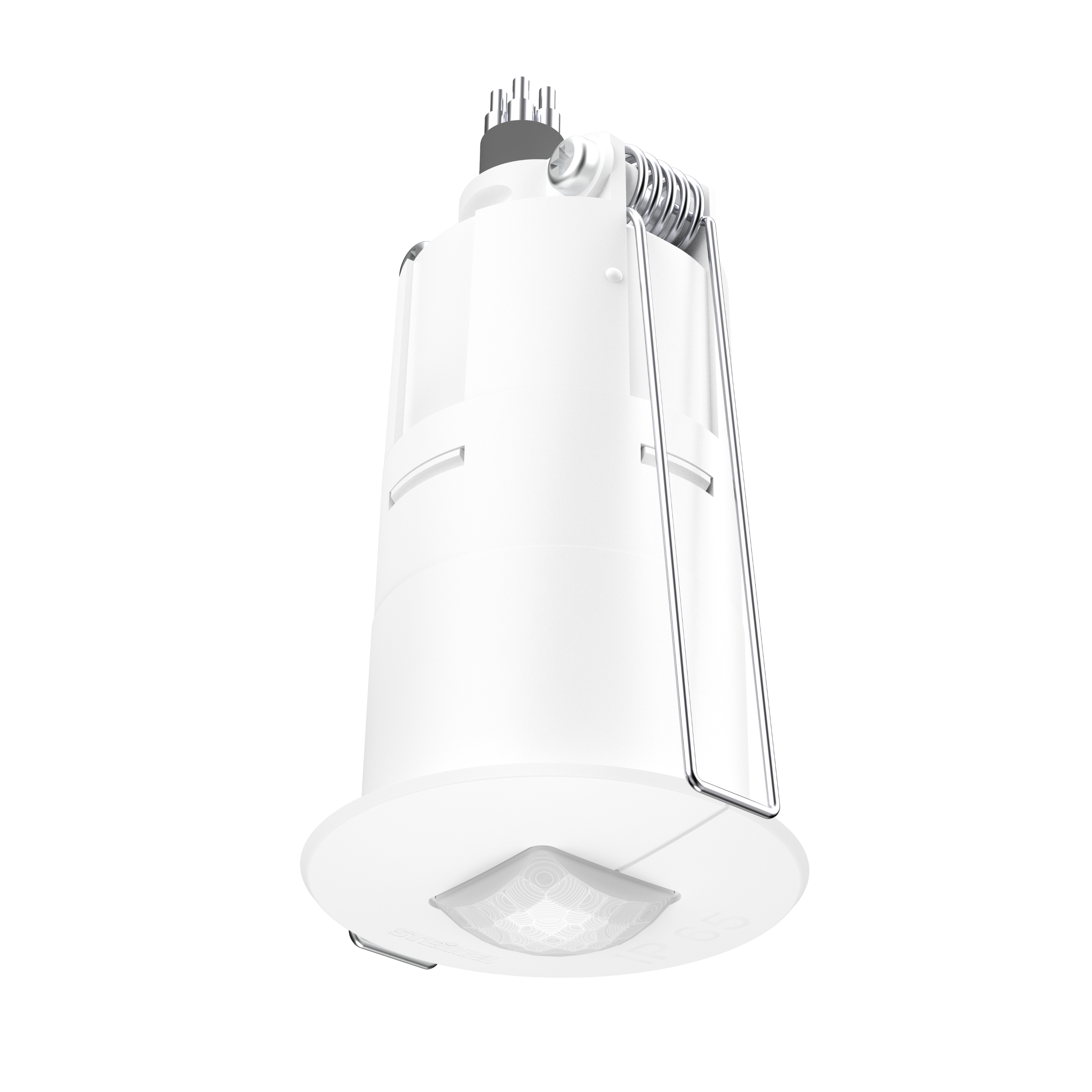

Sensor detection range

Data sheet User manual

User remote control RC7 KNX

Item no. 592912

Service remote control RC6 KNX

Item no. 4007841593018
