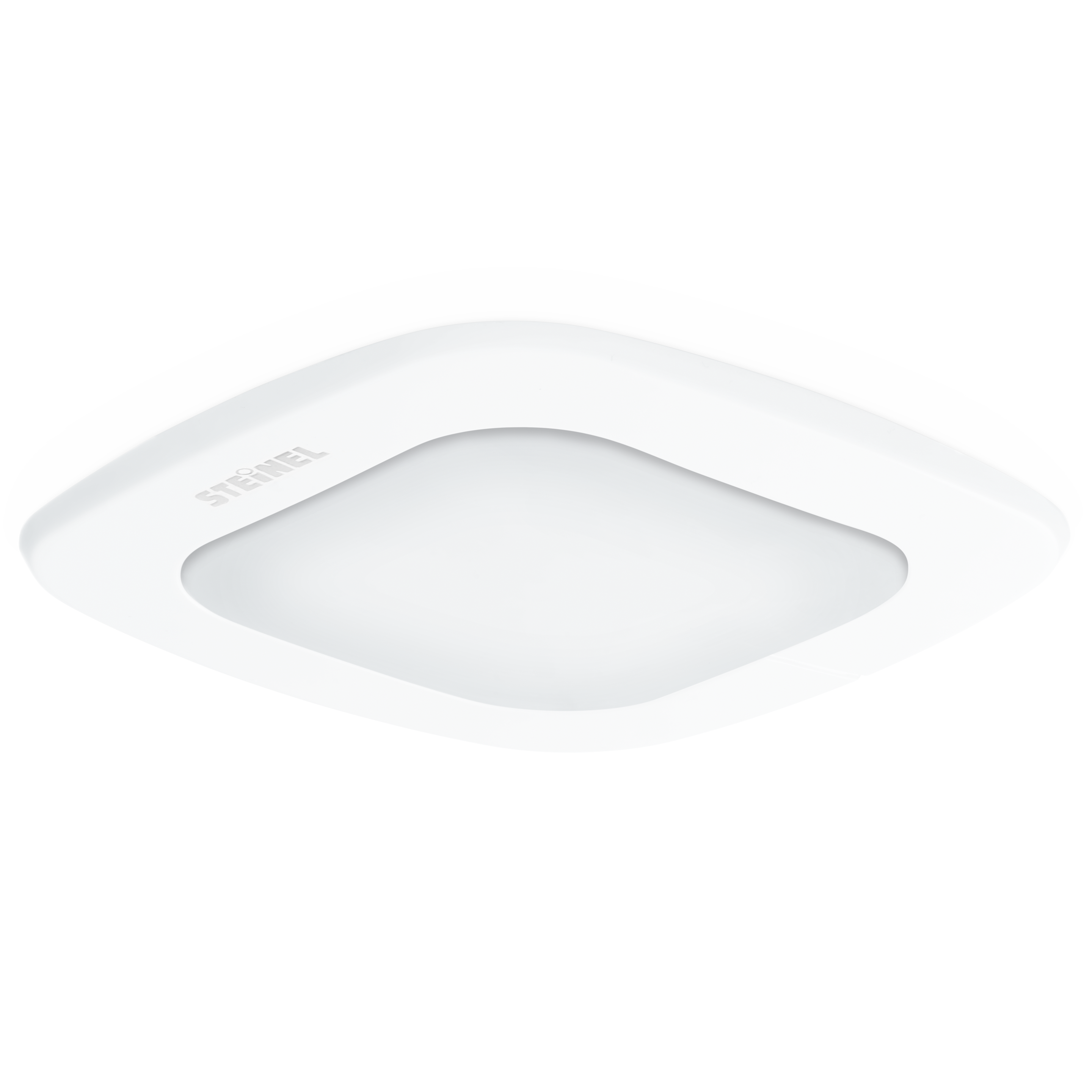

Nevalux IR Quattro SLIM DIM

EAN-No. 4007841 593612

Discontinued

This product is being discontinued and is available while stocks last. No successor product has been announced yet.

Genuine 16 m2 of presence detection concentrated on 4 mm. Control PRO IR Quattro SLIM DIM presence detector for indoors, ideal for small offices, store, service and utility rooms, washrooms and WCs, for mounting at a height of up to 4 m, for controlling and switching light ON and OFF, square presence detection zone covering 16m², high-quality retina lens.

Extremely slim overall height
High-quality retina lens
Can only be set by optional remote control RC8

Identification

Variant DIM

Version Presence detector

Dimensions

Dimensions L × W × H 77 x 77 x 60 mm

Electrical

Mains connection 120 – 250 V , 50 / 60 Hz

Switching output 1 resistive 2000 W

Supply voltage detail 500 VA max., 120 V

Number of ECGs DIM interface 50

Sensor technology

Sensor technology passive infrared

Detection angle 360 °

Sneak-under protection Yes

Segment-by-segment masking No

Electronic scalability No

Mechanical scalability No

Range detail Retina lens and hexagonal Fresnel structure

Radial range 4 x 4 m (16 m²)

Tangential range 4 x 4 m (16 m²)

Switching zones 260 switching zones

Mounting height 2,50 – 4,00 m

Presence range 4 x 4 m (16 m²)

Optimal mounting height 2,8 m

Connectivity

Networking Yes

Type of networking Master/slave, Master/master

Lighting technology

Constant light regulation Yes

Settings

Twilight setting 100 – 1000 lx

Time setting 30 sec – 30 min

Base light function Yes

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP20

Ambient temperature 0 – 40 °C

Mounting location ceiling

Application location Indoors

Mounting type Installation

Material Plastic

Colour white

RAL colour 9010

Scope of delivery & warranty

Manufacturer warranty 5 years

Other

Application, location, room One-person office, classroom, side room

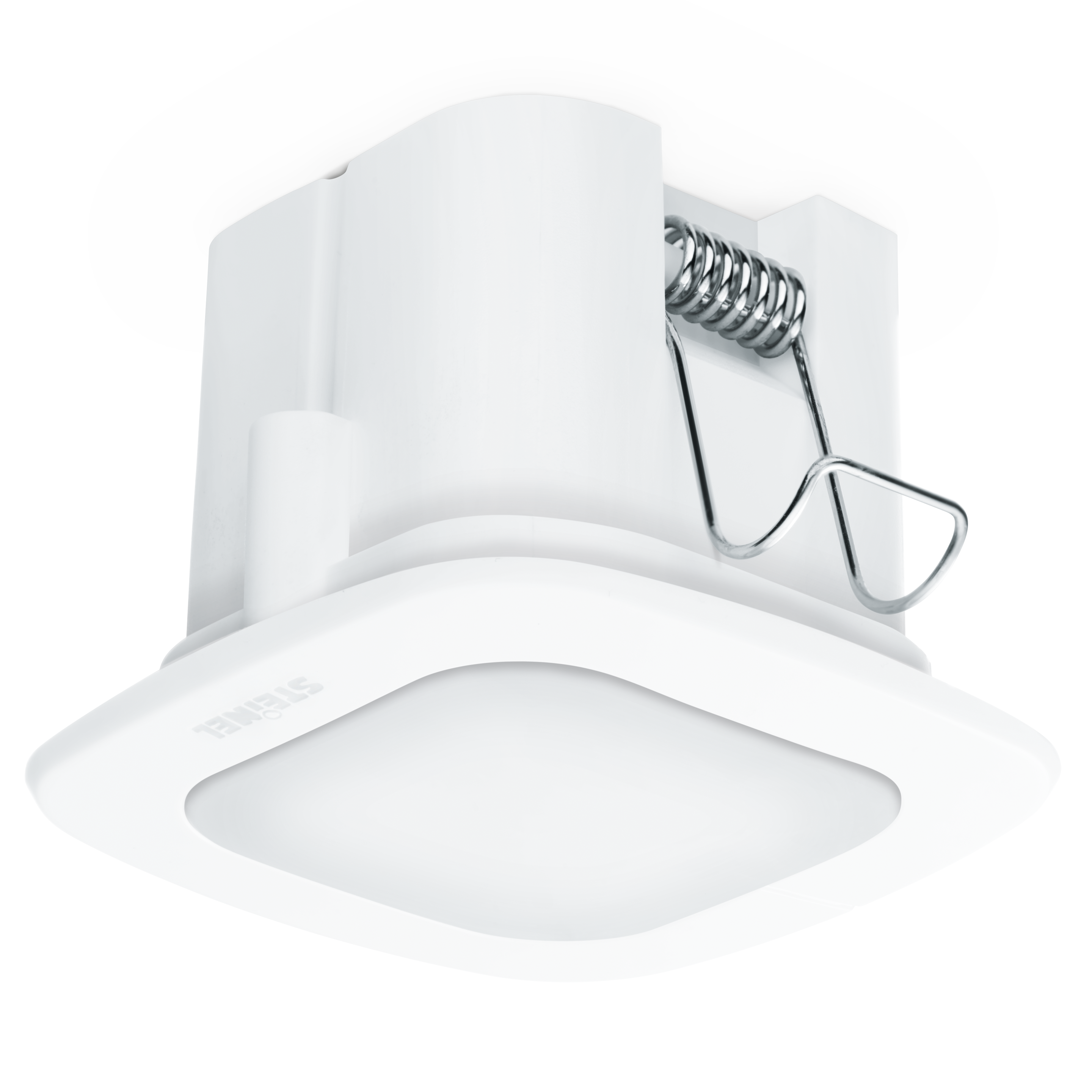

Sensor detection range

Data sheet User manual

User remote control RC5

Item no. 592806

Service remote control RC8

Item no. 559410

Remote control Smart Remote

Item no. 009151
