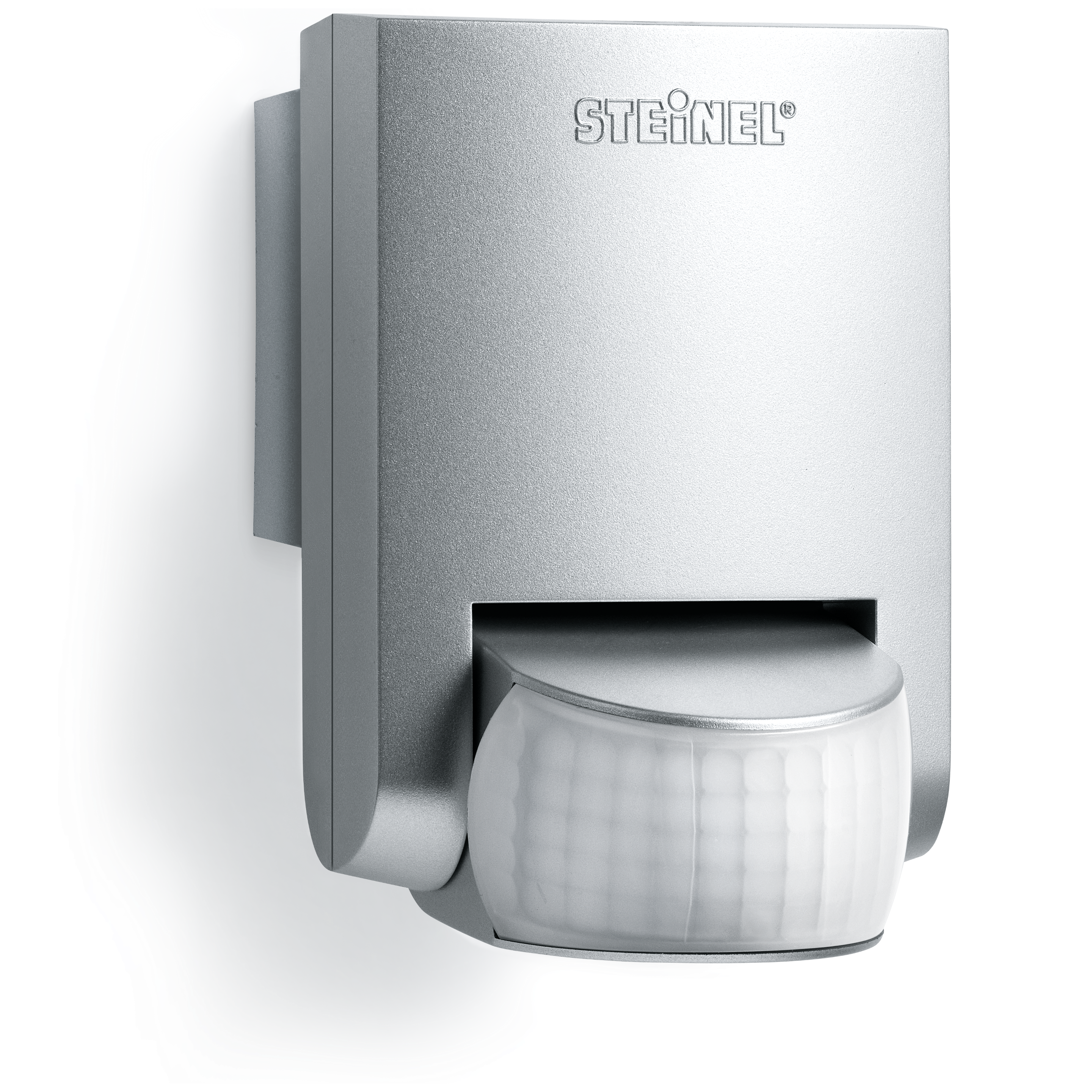

Nevalux IS 130-2 Silver
ELDAS® no. 535 996 860
EAN-No. 4007841 660116
This product is being replaced by a successor product.
Go to successor product · IS 130-2 white (660314)Targeted detection all around the building. Infrared motion detector IS 130-2, for indoors and out, ideal for targeted detection close to the building, 130° angle of coverage, reach up to 12 m, selectable time and twilight threshold, sensor turns through 50° and tilts through 90° for exact adjustment of the detection zone.
- UV-resistant plastic
Identification
Version
Motion detectors
Dimensions
Dimensions L × W × H
87 x 78 x 110 mm
Electrical
Mains connection
230 – 240 V / 50 Hz
Power
600 W
Switching output 1 resistive
600 W
Fluorescent lamps ECG
430 W
Fluorescent lamps uncompensated
500 VA
Fluorescent lamps series-compensated
500 VA
Fluorescent lamps parallel-compensated
500 VA
Switching output 1 low-voltage halogen lamps
500 VA
LED lamps < 2 W
16 W
LED lamps > 2 W < 8 W
64 W
LED lamps > 8 W
64 W
Capacitive load in µF
88 µF
Switching output 1 number of LED/fluorescent lamps
4 pcs.
Sensor technology
Max. mounting height
3,00 m
Sensor technology
passive infrared
Detection angle
130 °
Opening angle
40 °
Sneak-under protection
Yes
Segment-by-segment masking
Yes
Electronic scalability
No
Mechanical scalability
No
Radial range
r = 3 m (10 m²)
Tangential range
r = 12 m (163 m²)
Switching zones
260 switching zones
Mounting height
1,80 – 3,00 m
Optimal mounting height
2 m
Connectivity
Networking
Yes
Type of networking
Master/master
Networking via
Cable
Lighting technology
Soft light start
No
Continuous light
selectable
Constant light regulation
No
Settings
Twilight switch
Yes
Twilight setting
2 – 2000 lx
Time setting
8 s – 35 Min.
Base light function
No
Main light adjustable
No
Settings via
Potentiometers
With remote control
No
Twilight setting teach
No
Housing & material
Protection class (IP)
IP54
Ambient temperature
-20 – 50 °C
Mounting location
wall
Application location
Indoors
Outdoors
Mounting type
Surface wiring
Material
Plastic
Application room
all round the building
courtyard & driveway
front door
outdoors
terrace / balcony
Colour
Silver
RAL colour
9006
Scope of delivery & warranty
Manufacturer warranty
3 years
Corner wall bracket included
No

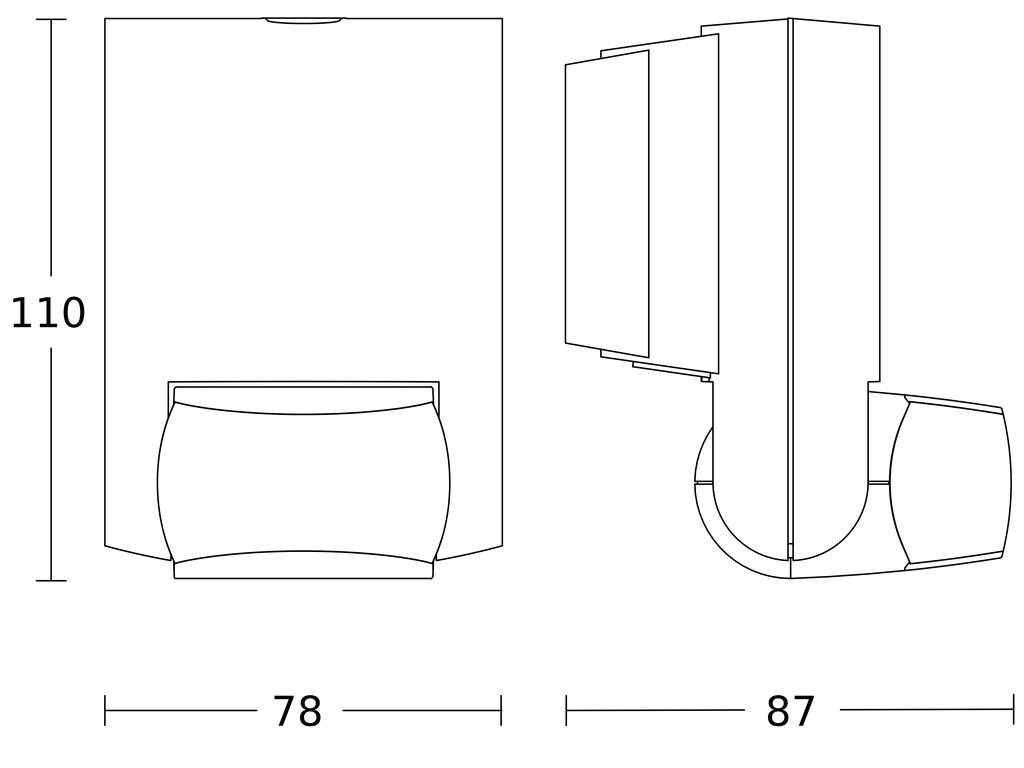

Technical drawing

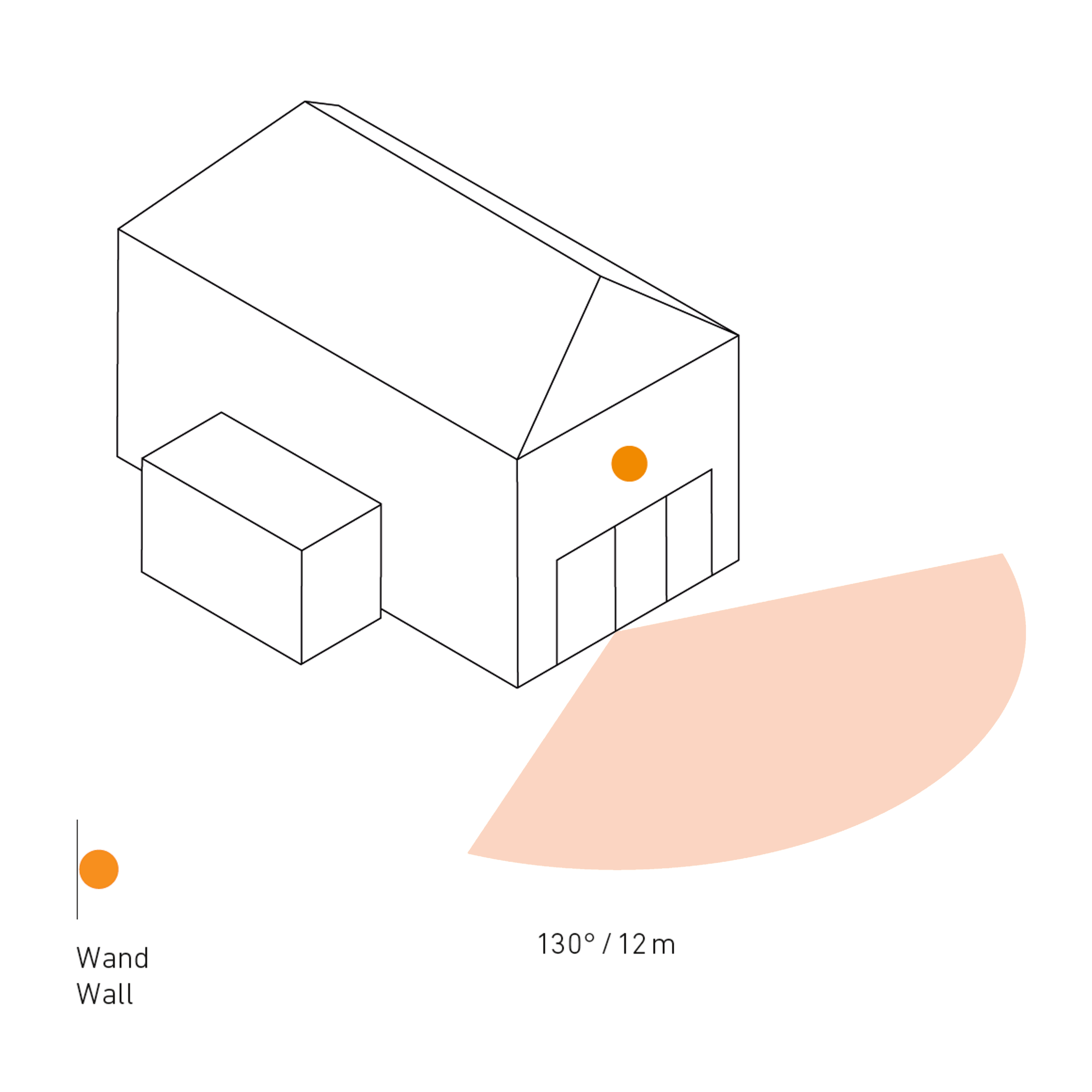

Sensor detection range
Wiring diagram 1
Light without neutral conductor
Wiring diagram 2
Light with neutral conductor
