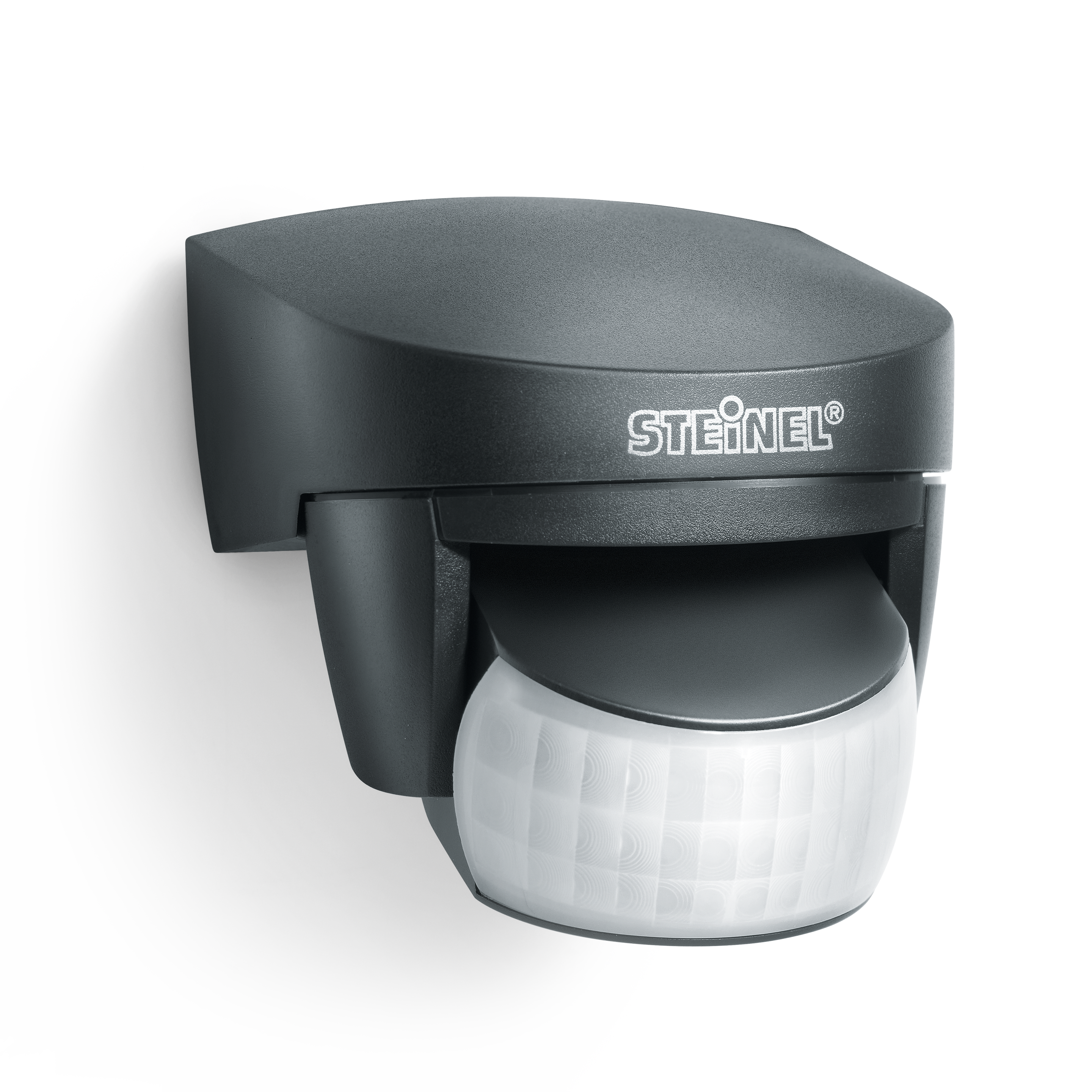

Nevalux IS 140-2 Z-Wave black

EAN-No. 4007841 029807

Discontinued

This product is being discontinued and is available while stocks last. No successor product has been announced yet.

The classic detector, now with even more class. Infrared motion detector IS 140-2 Z-Wave, can be integrated into the Smart Friends system or any other Z-Wave network, for indoors and out, ideal for targeted detection close to the building, 140° angle of coverage, reach up to 14 m, selectable time and twilight threshold, sensor turns through 180° and tilts through 90° for exact adjustment of the detection zone.

UV-resistant plastic
Optional corner wall mount bracket

Identification

Version Motion detectors

Dimensions

Dimensions L × W × H 99 x 86 x 82 mm

Electrical

Mains connection 230 – 240 V / 50 Hz

Power 1000 W

Switching output 1 resistive 1000 W

Fluorescent lamps ECG 430 W

Fluorescent lamps uncompensated 500 VA

Fluorescent lamps series-compensated 500 VA

Fluorescent lamps parallel-compensated 500 VA

Switching output 1 low-voltage halogen lamps 1000 VA

LED lamps < 2 W 16 W

LED lamps > 2 W < 8 W 64 W

LED lamps > 8 W 64 W

Capacitive load in µF 132 µF

Switching output 1 number of LED/fluorescent lamps 6 pcs.

Sensor technology

Max. mounting height 3,00 m

Sensor technology passive infrared

Detection angle 140 °

Opening angle 40 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability No

Radial range r = 3 m (11 m²)

Tangential range r = 14 m (239 m²)

Switching zones 144 switching zones

Transmission range Up to 100 m in the open, 30 m indoors

Mounting height 1,80 – 3,00 m

Optimal mounting height 2 m

Connectivity

Networking Yes

Networking via Wireless

Lighting technology

Soft light start No

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 5 s – 15 Min.

Base light function No

Main light adjustable No

Functions Sensor channel\nActuator channel

Settings via Z-Wave\nPotentiometers

With remote control No

Twilight setting teach No

Housing & material

Protection class (IP) IP54

Protection class II

Ambient temperature -20 – 50 °C

Mounting location wall

Application location Indoors Outdoors

Mounting type Surface wiring

Material Plastic

Application room all round the building courtyard & driveway front door outdoors terrace / balcony

Colour black

RAL colour 9005

Scope of delivery & warranty

Manufacturer warranty 3 years

Corner wall bracket included No

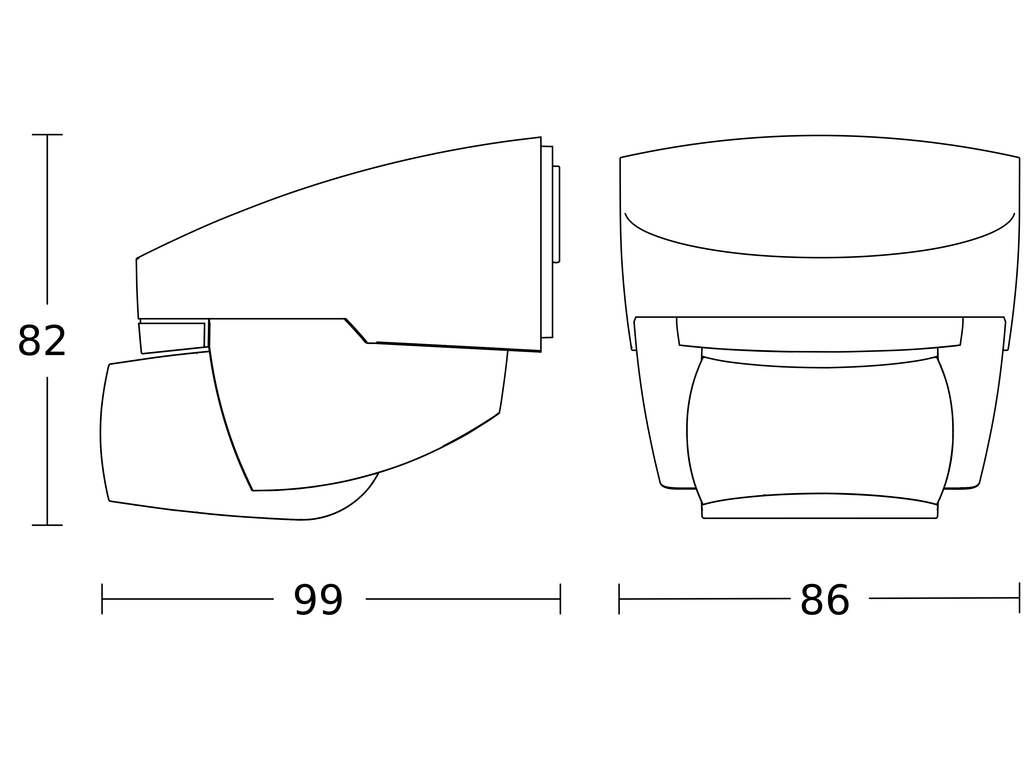

Technical drawing

Sensor detection range

Wiring diagram 1

Light without neutral conductor

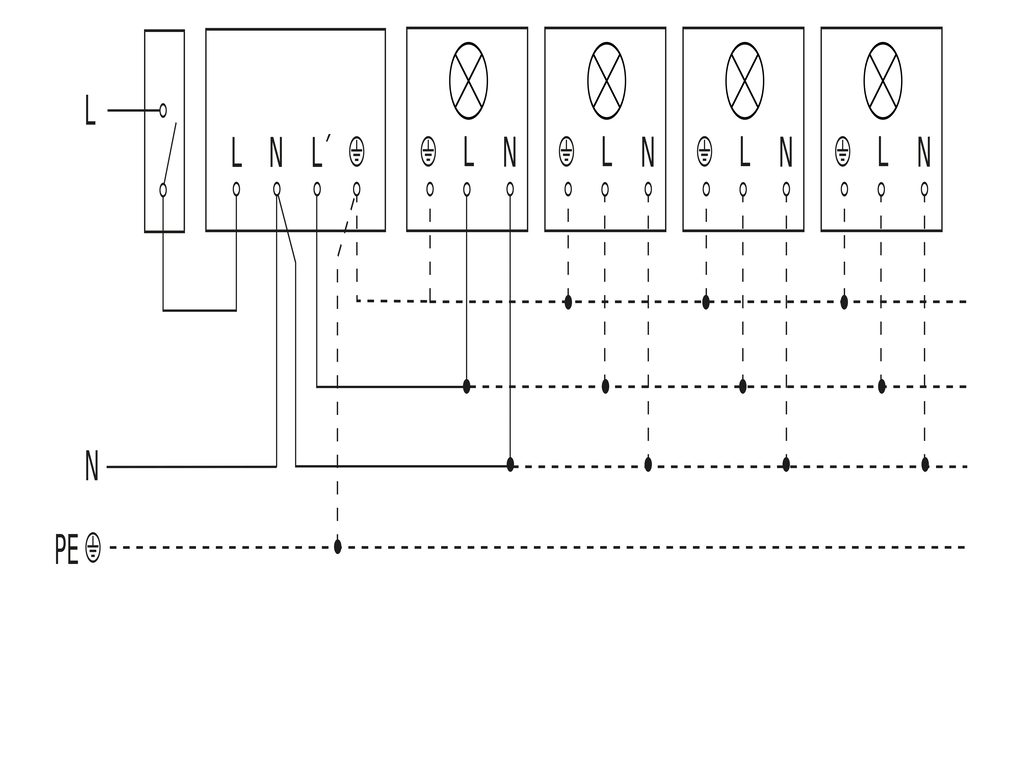

Wiring diagram 2

Light with neutral conductor
