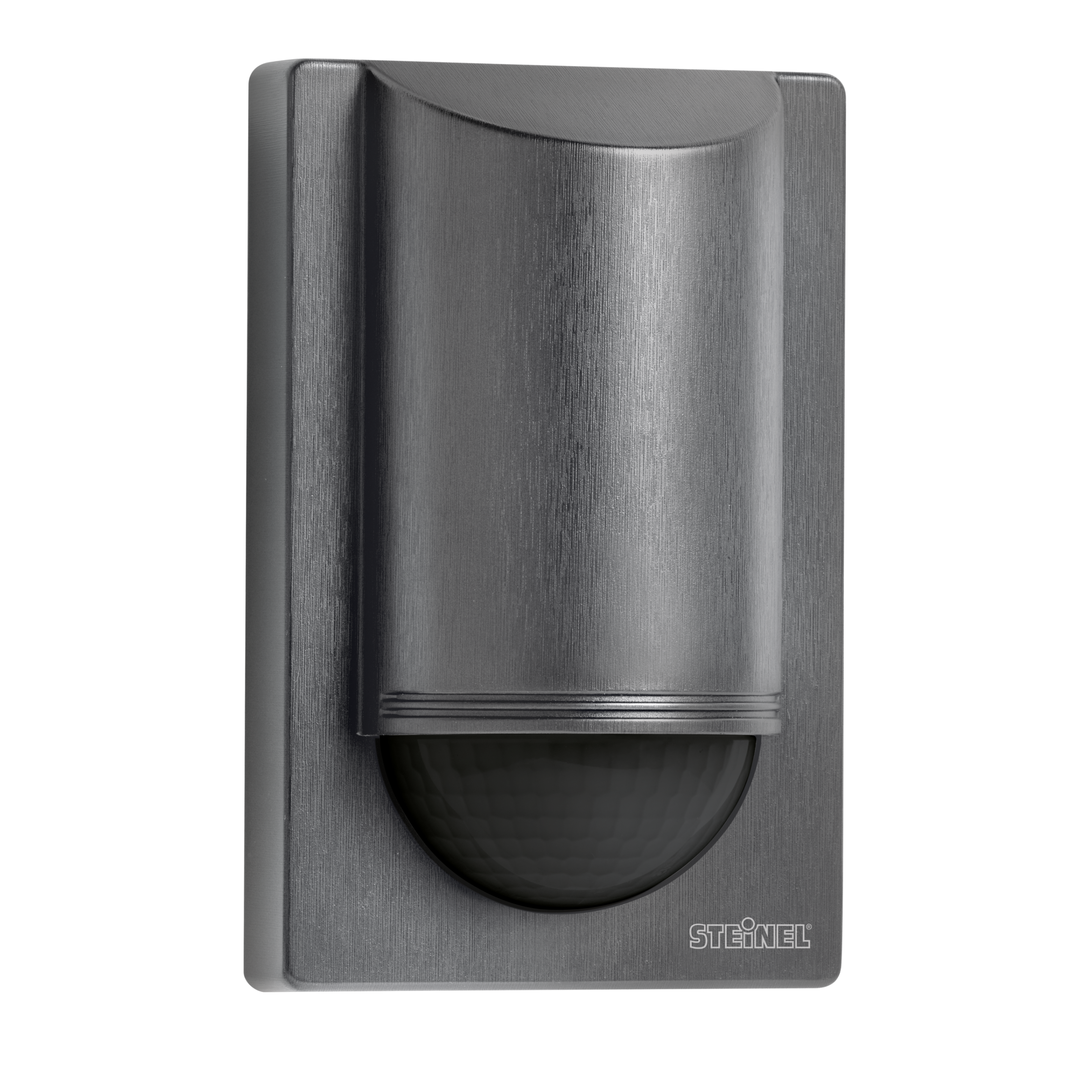

Nevalux IS 2180-2 Anthracite

ELDAS® no. 535 940 550

EAN-No. 4007841 057664

Discontinued

This product is being discontinued and is available while stocks last. No successor product has been announced yet.

Attractive, clever, efficient. Infrared motion detector IS 2180-2 for outdoors, ideal for building fronts and properties, medium-sized business and outdoor spaces, ideal installation height 2 m, 180° angle of coverage, reach. 12 m max. or 5 m max. (tangential), selectable time and twilight threshold, manual override, for outdoor and indoor installation .

UV-resistant plastic
Optional corner wall mount bracket

Identification

Version Motion detectors

Dimensions

Dimensions L × W × H 55 x 78 x 120 mm

Electrical

Mains connection 230 V / 50 Hz

Power 1000 W

Switching output 1 resistive 1000 W

Fluorescent lamps ECG 1000 W

Fluorescent lamps uncompensated 500 VA

Fluorescent lamps series-compensated 900 VA

Fluorescent lamps parallel-compensated 500 VA

Switching output 1 low-voltage halogen lamps 1000 VA

LED lamps < 2 W 100 W

LED lamps > 2 W < 8 W 175 W

LED lamps > 8 W 350 W

Capacitive load in µF 132 µF

Own consumption 0,5 W

Switching output 1 potential-free No

Sensor technology

Max. mounting height 4,00 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 180 °

Opening angle 90 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability No

Radial range r = 1.5 m (4 m²) / r = 3 m (14 m²)

Tangential range r = 5 m (39 m²) / r = 12 m (226 m²)

Switching zones 508 switching zones

Mounting height 1,8 – 4 m

Optimal mounting height 2 m

Connectivity

Networking Yes

Type of networking Master/master

Networking via Cable

Lighting technology

Soft light start No

Continuous light selectable

Constant light regulation No

Settings

Twilight switch Yes

Twilight setting 2 – 2000 lx

Time setting 5 s – 15 Min.

Base light function No

Main light adjustable No

Settings via Potentiometers

With remote control No

Twilight setting teach No

Housing & material

Protection class (IP) IP54

Ambient temperature from -20 up to 50 °C

Cover material (scope of delivery) shrouds

Mounting location corner wall

Application location Indoors Outdoors

Mounting type Surface wiring

Material Plastic

Application room all round the building courtyard & driveway front door outdoors terrace / balcony

Colour Anthracite

RAL colour 7016

Scope of delivery & warranty

Manufacturer warranty 5 years

Corner wall bracket included No

Technical drawing

Sensor detection range

Wiring diagram 1

Light without neutral conductor

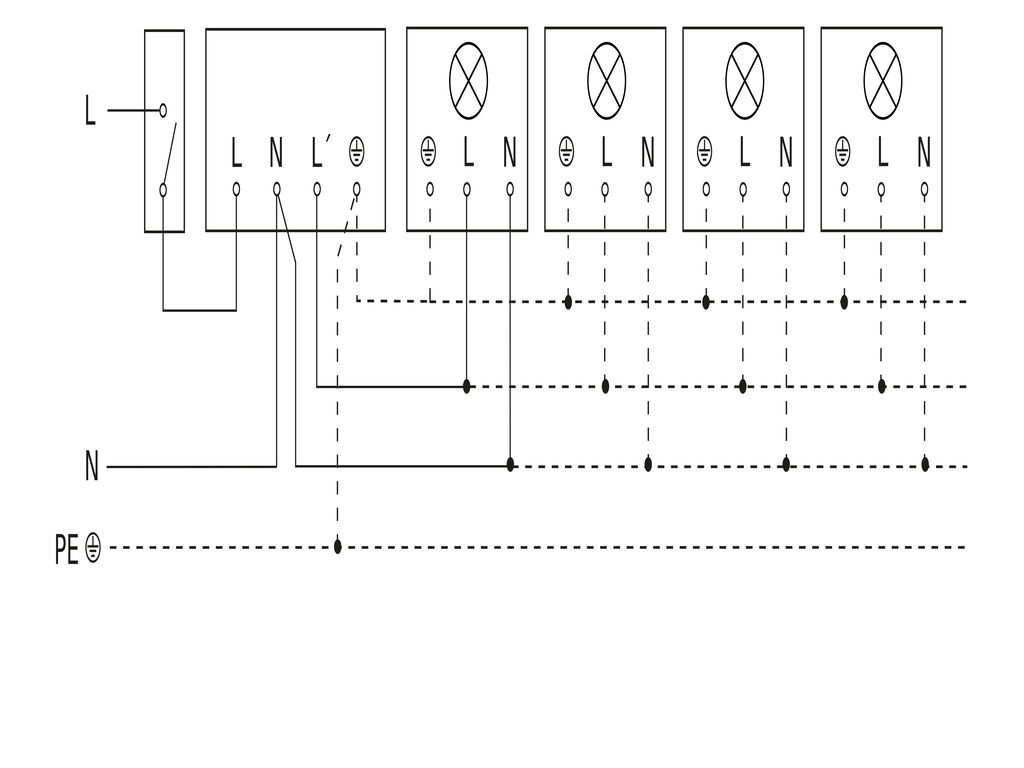

Wiring diagram 2

Light with neutral conductor

Data sheet User manual Declaration of conformity

Corner wall mount for IS 180-2, IS 2180-2 and IS 2180 ECO white

Item no. 085148
