Identification
Dimensions
Dimensions Ø × H
78 x 89 mm
Electrical
Mains connection
220 – 240 V / 50 – 60 Hz
Power
1000 W
Fluorescent lamps ECG
350 W
Fluorescent lamps uncompensated
500 VA
Fluorescent lamps series-compensated
500 VA
Fluorescent lamps parallel-compensated
500 VA
Switching output 1 low-voltage halogen lamps
1000 VA
LED lamps < 2 W
100 W
LED lamps > 2 W < 8 W
175 W
LED lamps > 8 W
350 W
Capacitive load in µF
132 µF
Switching output 1 number of LED/fluorescent lamps
6 pcs.
Sensor technology
Max. mounting height
4,00 m
Sensor technology
passive infrared
With motion detector
Yes
Detection angle
360 °
Opening angle
180 °
Sneak-under protection
Yes
Segment-by-segment masking
Yes
Electronic scalability
No
Mechanical scalability
No
Radial range
Ø 4 m (13 m²)
Tangential range
Ø 8 m (50 m²)
Switching zones
304 switching zones
Mounting height
2,2 – 4 m
Optimal mounting height
2,5 m
Connectivity
Networking
Yes
Type of networking
Master/master
Networking via
Cable
Lighting technology
Soft light start
No
Continuous light
selectable
Constant light regulation
No
Settings
Twilight switch
Yes
Twilight setting
2 – 2000 lx
Time setting
8 s – 35 Min.
Base light function
No
Main light adjustable
No
Settings via
Potentiometers
With remote control
No
Twilight setting teach
No
Housing & material
Protection class (IP)
IP54
Protection class
II
Ambient temperature
from -20 up to 40 °C

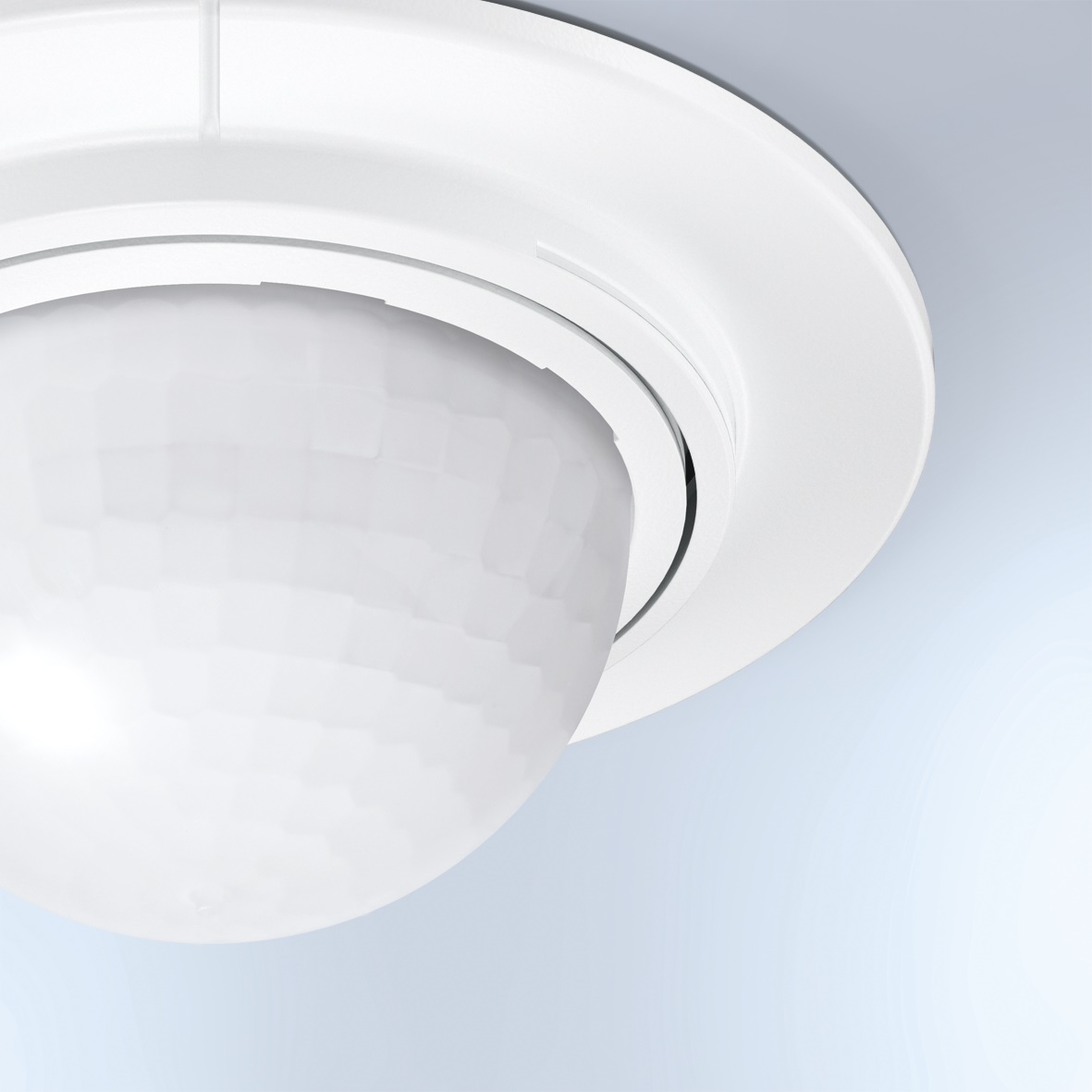

Housing material
Plastic
Cover material (scope of delivery)
shrouds
Mounting location
ceiling
Application location
Indoors
Outdoors
Mounting type
In-ceiling installation
Material
Plastic
Application room
Indoors
WC / washroom
all round the building
changing room
corridor / aisle
front door
function room / ancillary room
kitchenette
outdoors
stairwell
terrace / balcony
Colour
white
RAL colour
9010
Scope of delivery & warranty
Manufacturer warranty
5 years
Corner wall bracket included
No
Certificates & EPREL
