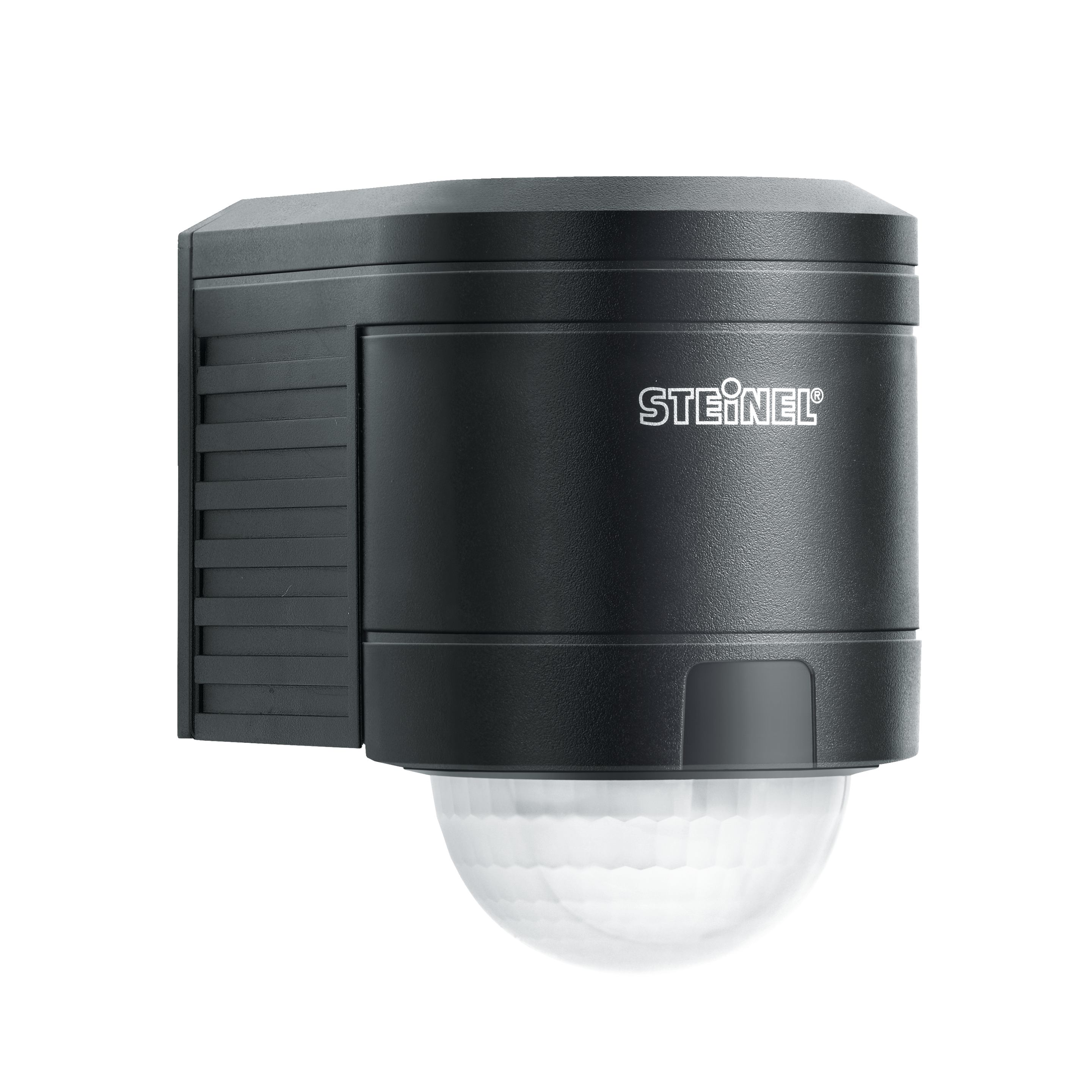

Nevalux IS 300 black
ELDAS® no. 535 997 150
EAN-No. 4007841 602116
This product is being replaced by a successor product.
Go to successor product · sensIQ S COM1 - black (034979)One for every corner. Infrared motion detector IS 300, for indoors and out, ideal for corner situations, irregular shaped spaces, corridors, installation height 2 m, 300° angle of coverage, max. reach 12 m (tangential), selectable time and twilight threshold, turning sensor head (80°) for precision targeting.
- Wireless interconnection
- Including corner wall mount
- UV-resistant plastic
Identification
Variant
black
Version
Motion detectors
Dimensions
Dimensions L × W × H
85 x 60 x 95 mm
Electrical
Mains connection
230 – 240 V , 50 / 50 Hz
Switching output 1 resistive
2000 W
Sensor technology
Sensor technology
passive infrared
Detection angle
300 °
Opening angle
180 °
Sneak-under protection
Yes
Segment-by-segment masking
Yes
Electronic scalability
No
Mechanical scalability
No
Radial range
r = 3 m (24 m²)
Tangential range
r = 12 m (377 m²)
Switching zones
456 switching zones
Optimal mounting height
2 m
Connectivity
Networking
No
Lighting technology
Constant light regulation
No
Settings
Twilight setting
2 – 2000 lx
Time setting
10 sec – 15 min
Base light function
No
With remote control
No
Twilight setting teach
No
Housing & material
Protection class (IP)
IP54
Ambient temperature
-20 – 50 °C
Mounting location
corner
wall
Application location
Indoors
Outdoors
Mounting type
Surface wiring
Material
Plastic
Colour
black
RAL colour
9005
Scope of delivery & warranty
Manufacturer warranty
5 years
