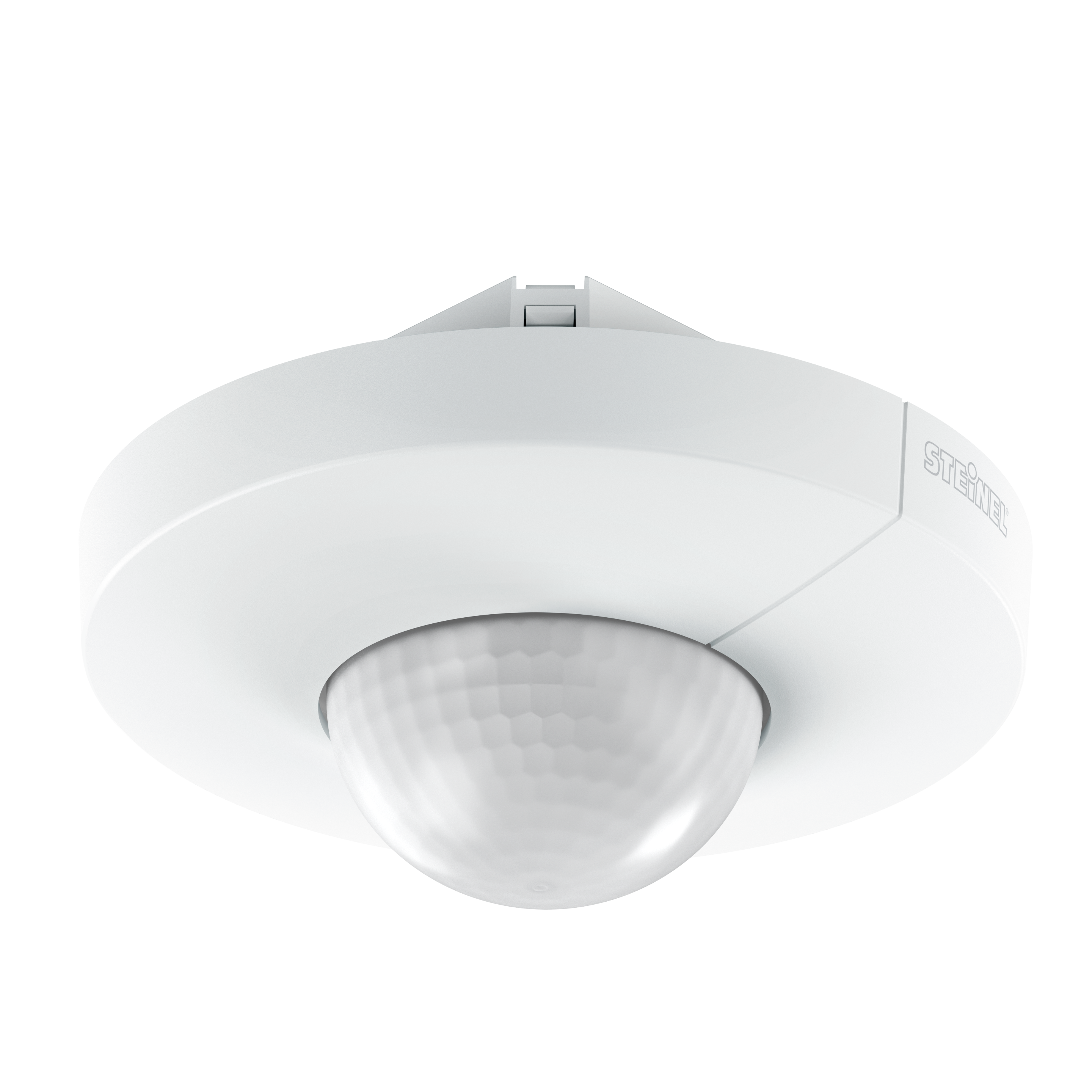

Nevalux IS 3360 LiveLink - concealed installation, round
ELDAS® no. 535 955 307
EAN-No. 4007841 049393
This product is being replaced by a successor product.
Go to successor product · IS 3360 DALI-2 Input Device - concealed, rd. (057268)Higher, further, faster. Infrared motion detector IS 3360 for indoors and out, ideal for watching over high spaces and large areas, such as multi-storey and underground car parks, installation height up to 4 m, 360° angle of coverage, reach 20 m max. (tangential). Available either in round or square surface-mounted and concealed version.
Identification
Variant
LiveLink - concealed installation, round
Version
Motion detectors
Model
LiveLink
Dimensions
Dimensions Ø × H
124 x 78 mm
Electrical
Mains connection
230 V, 50 / 60 Hz
Supply voltage detail
DALI bus
Livelink values
Light level, Motion detection
Sensor technology
Sensor technology
passive infrared
Detection angle
360 °
Opening angle
180 °
Sneak-under protection
Yes
Segment-by-segment masking
Yes
Electronic scalability
No
Mechanical scalability
No
Radial range
Ø 8 m (50 m²)
Tangential range
Ø 40 m (1257 m²)
Switching zones
1416 switching zones
Mounting height
2,50 – 4,00 m
Presence range
Ø 3 m (7 m²)
Optimal mounting height
2,8 m
Connectivity
Networking
Yes
Number of DALI participants
3
Lighting technology
Constant light regulation
No
Settings
Twilight setting
2 – 1000 lx
Time setting
5 sec – 15 min
Base light function
No
Settings via
LiveLink app
With remote control
No
Twilight setting teach
Yes
Housing & material
Protection class (IP)
IP20
Ambient temperature
-20 – 50 °C
Mounting location
ceiling
Application location
Indoors
Outdoors
Mounting type
Concealed wiring
Material
Plastic
Colour
white
RAL colour
9010
Scope of delivery & warranty
Manufacturer warranty
5 years
Other
Application, location, room
sports hall, side room, stairwell, wc, washroom, multi-storey car park, underground car park, warehouse, equipment room
