Identification
Variant

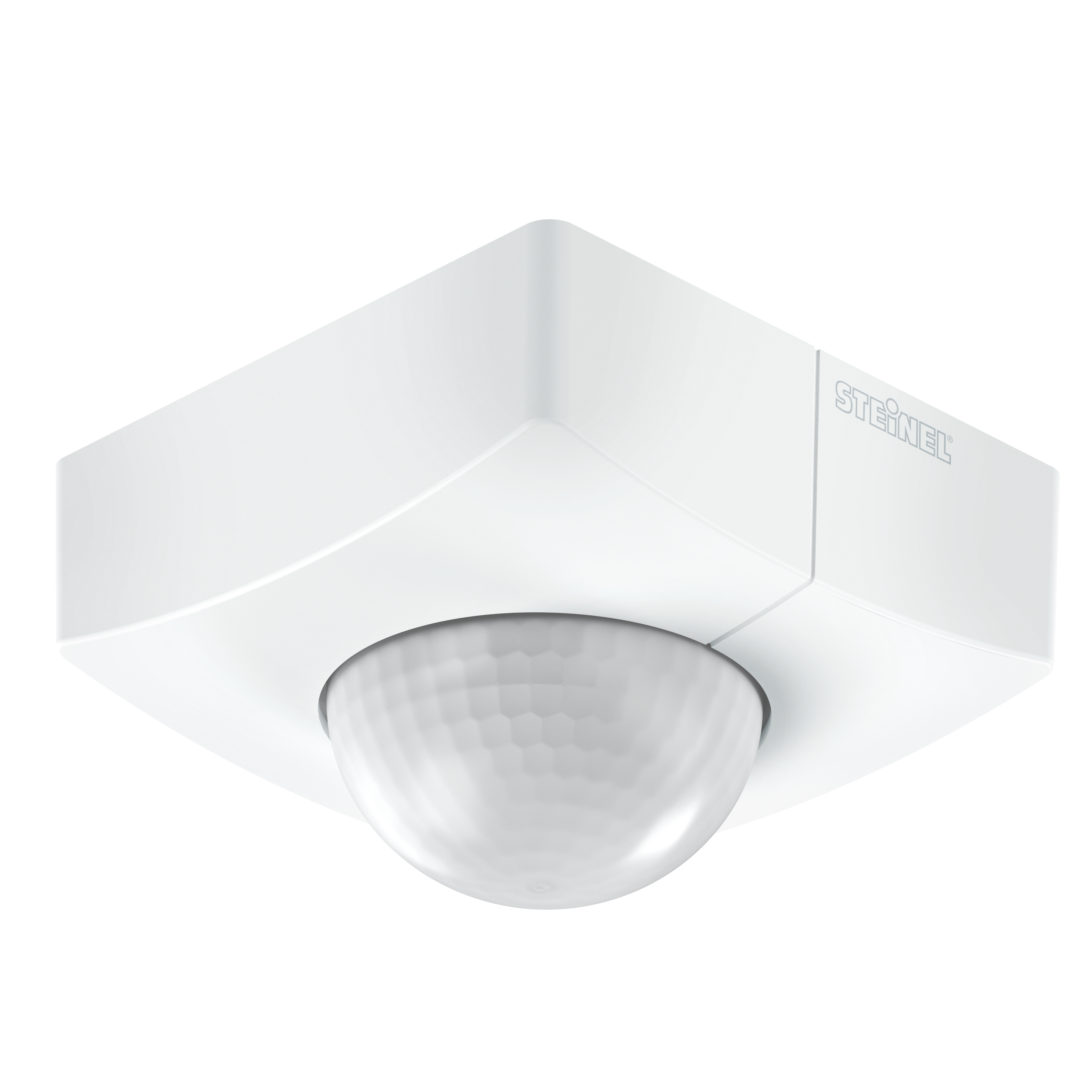

LiveLink - surface-mounted, square
Version
Motion detectors
Model
LiveLink
Dimensions
Dimensions L × W × H
95 x 95 x 65 mm
Electrical
Mains connection
230 V, 50 / 60 Hz
Supply voltage detail
DALI bus
Livelink values
Light level, Motion detection, Presence detection
Sensor technology
Sensor technology
passive infrared
Detection angle
360 °
Opening angle
180 °
Sneak-under protection
Yes
Segment-by-segment masking
Yes
Electronic scalability
No
Mechanical scalability
No
Radial range
Ø 8 m (50 m²)
Tangential range
Ø 40 m (1257 m²)
Switching zones
1416 switching zones
Mounting height
2,50 – 4,00 m
Presence range
Ø 3 m (7 m²)
Optimal mounting height
2,8 m
Connectivity
Networking
Yes
Number of DALI participants
3
Lighting technology
Constant light regulation
No
Settings
Twilight setting
2 – 1000 lx
Time setting
5 sec – 15 min
Base light function
No
Settings via
LiveLink app
With remote control
No
Twilight setting teach
Yes
Housing & material
Protection class (IP)
IP54
Ambient temperature
-20 – 50 °C
Mounting location
ceiling
Application location
Indoors
Outdoors
Mounting type
Surface wiring
Material
Plastic
Colour
white
RAL colour
9003
Scope of delivery & warranty
Manufacturer warranty
5 years
Other
Application, location, room
sports hall, side room, stairwell, wc, washroom, multi-storey car park, underground car park, warehouse, equipment room
