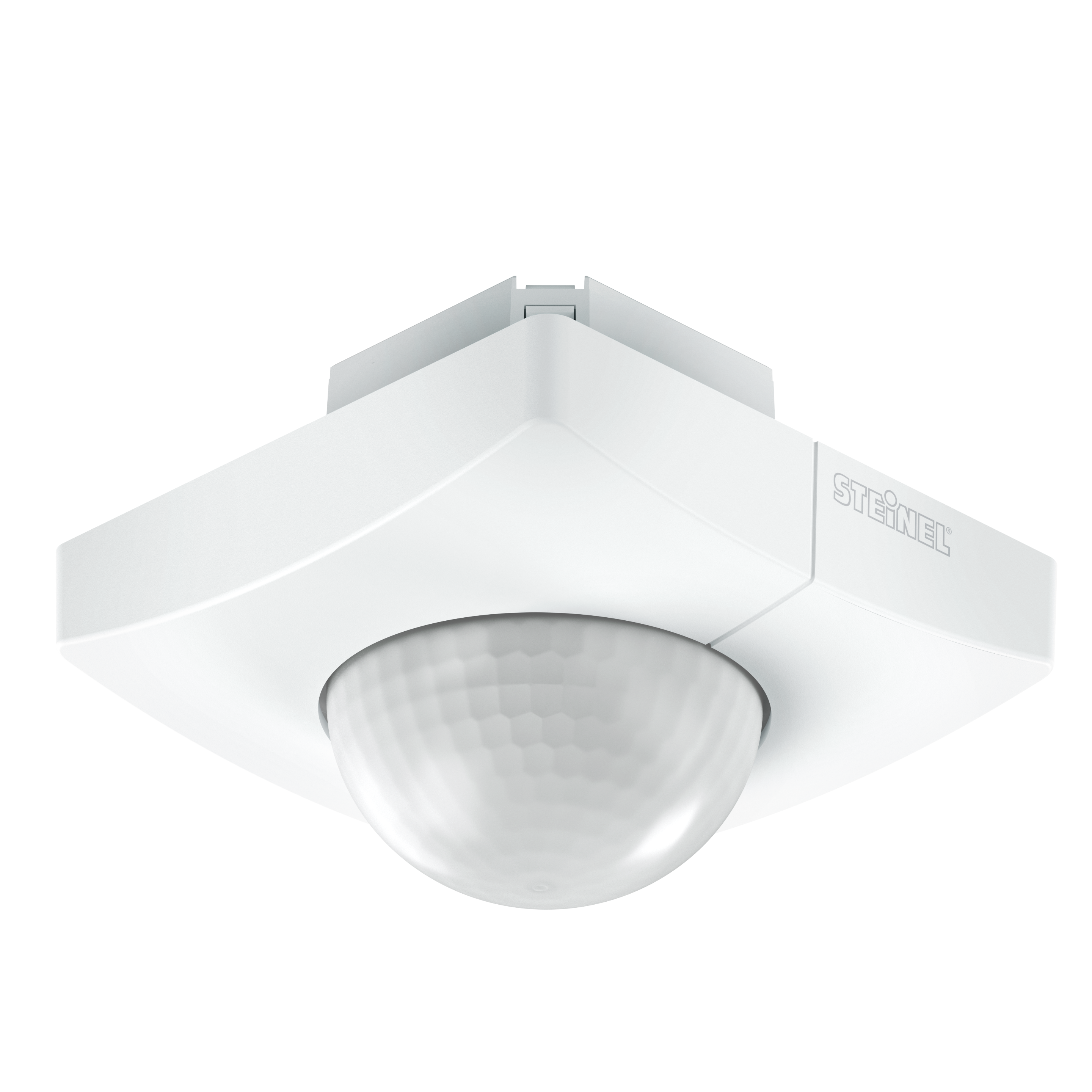

Nevalux IS 3360 MX Highbay DALI-2 IPD - concealed, sq.

ELDAS® no. 535 946 805

EAN-No. 4007841 057381

This product is being replaced by a successor product.

Go to successor product · IS 3360 MX Highbay DALI-2 Input Device - surface, sq. (057374)

A head for heights. Powerful reach. Reliable. IS 3360 MX Highbay motion detector – ideal for high ceilings in industrial buildings or commercial properties. For mounting heights of up to 14 m. High-precision 360° infrared sensor. Maximum reach: 18 m. For watching over up to 1000 sq.m. Available as square surface-mounted and concealed version. DALI-2 Input Device enables sensors to communicate collected sensor data to higher-level lighting management systems.

Identification

Variant DALI-2 IPD - concealed, sq.

Version Motion detectors

Dimensions

Dimensions L × W × H 94 x 94 x 78 mm

Electrical

Mains connection 12 – 22,5 V

Switching output 1 potential-free No

Control output DALI Addressable/slave

Sensor technology

Sensor technology passive infrared

Detection angle 360 °

Opening angle 45 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Radial range Ø 14 m (154 m²)

Tangential range Ø 36 m (1018 m²)

Switching zones 1416 switching zones

Mounting height 4,00 – 14,00 m

Optimal mounting height 12 m

Connectivity

Networking Yes

With bus coupler Yes

Settings

Twilight setting 2 – 1000 lx

Base light function No

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP20

Ambient temperature -20 – 50 °C

Mounting location ceiling

Application location Indoors

Mounting type Concealed wiring

Material Plastic

Colour white

RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years

Other

Application, location, room high-bay warehouse, sports hall

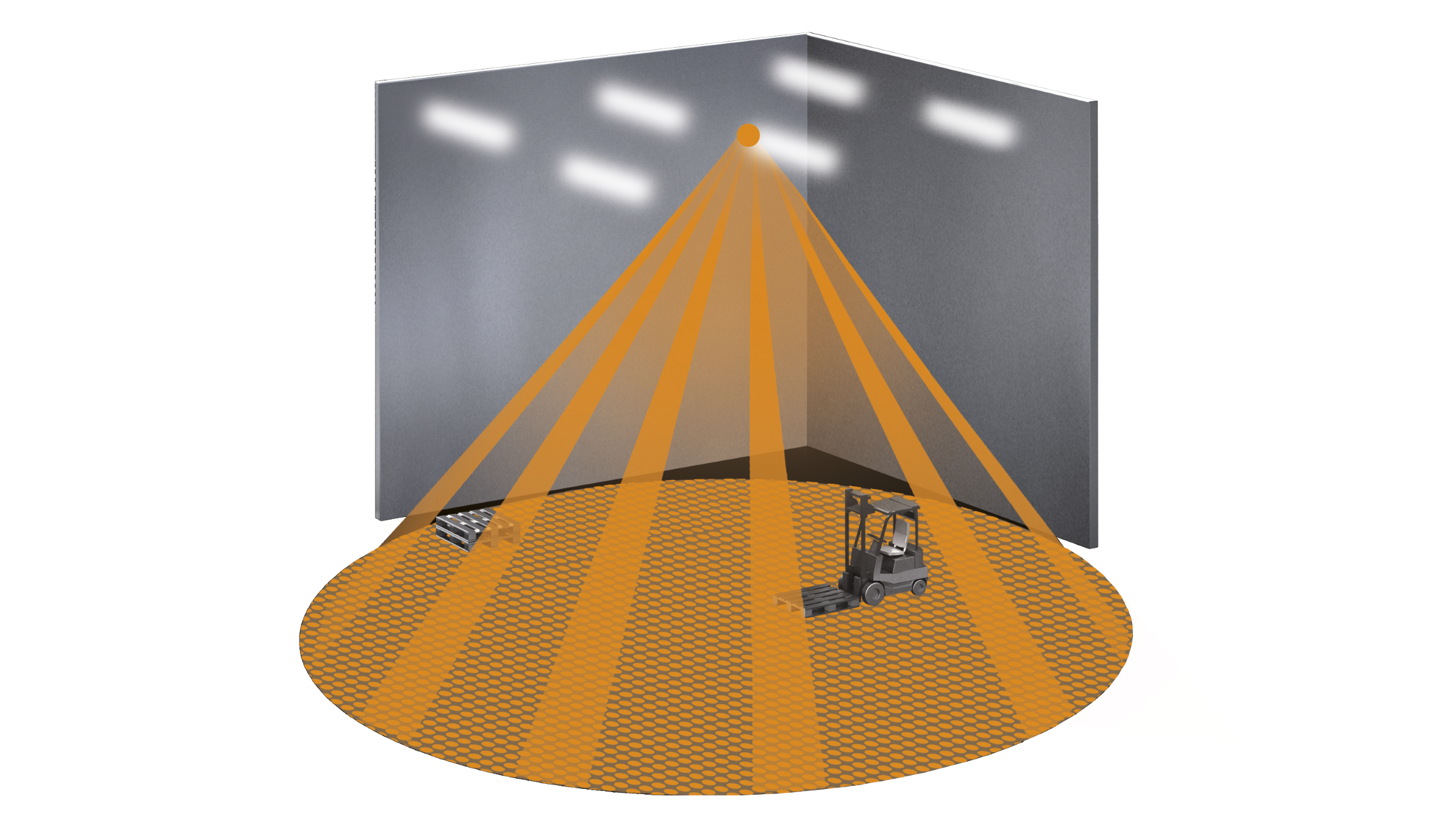

Sensor detection range
