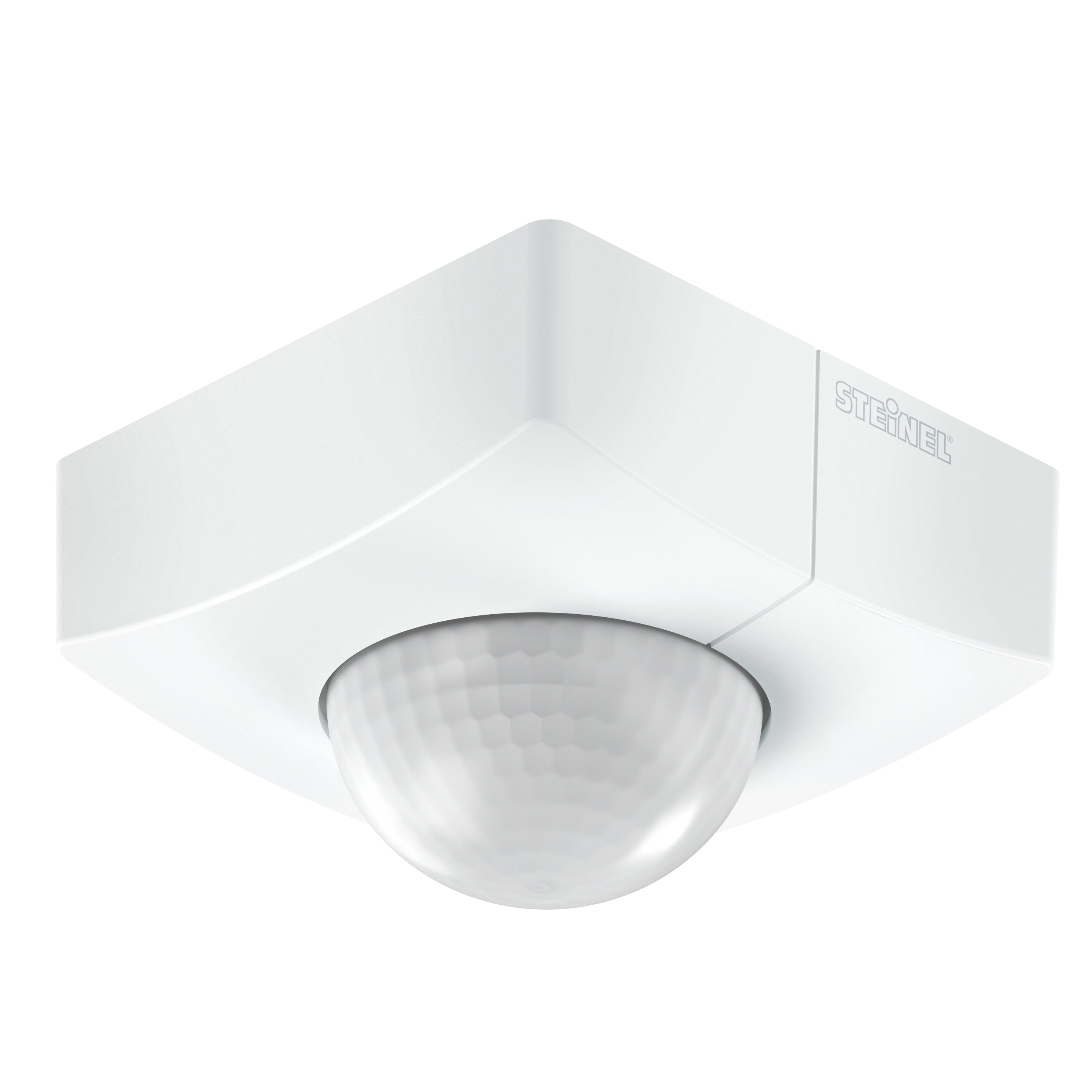

Nevalux IS 3360 MX Highbay LiveLink - surface-mounted, square
ELDAS® no. 535 946 460
EAN-No. 4007841 009724
This product is being replaced by a successor product.
Go to successor product · IS 3360 MX Highbay DALI-2 Input Device - surface, sq. (057374)A head for heights. Powerful reach. Reliable. IS 3360 MX Highbay motion detector – ideal for high ceilings in industrial buildings or commercial properties. For mounting heights of up to 14 m. High-precision 360° infrared sensor. Maximum reach: 18 m. For watching over up to 1000 sq.m.
Identification
Variant
LiveLink - surface-mounted, square
Version
Motion detectors
Model
LiveLink
Dimensions
Dimensions L × W × H
95 x 95 x 65 mm
Electrical
Mains connection
16 V
Supply voltage detail
DALI bus
Sensor technology
Sensor technology
passive infrared
Detection angle
360 °
Opening angle
45 °
Segment-by-segment masking
Yes
Electronic scalability
No
Radial range
Ø 14 m (154 m²)
Tangential range
Ø 36 m (1018 m²)
Switching zones
1416 switching zones
Mounting height
4,00 – 14,00 m
Optimal mounting height
12 m
Connectivity
Networking
Yes
Number of DALI participants
3
Lighting technology
Constant light regulation
Yes
Settings
Twilight setting
2 – 1000 lx
Time setting
60 sec – 60 min
Base light function
No
Settings via
LiveLink app
With remote control
No
Twilight setting teach
Yes
Housing & material
Protection class (IP)
IP54
Ambient temperature
-20 – 50 °C
Mounting location
ceiling
Application location
Indoors
Mounting type
Surface wiring
Material
Plastic
Colour
white
RAL colour
9003
Scope of delivery & warranty
Manufacturer warranty
5 years
Other
Application, location, room
high-bay warehouse, sports hall
