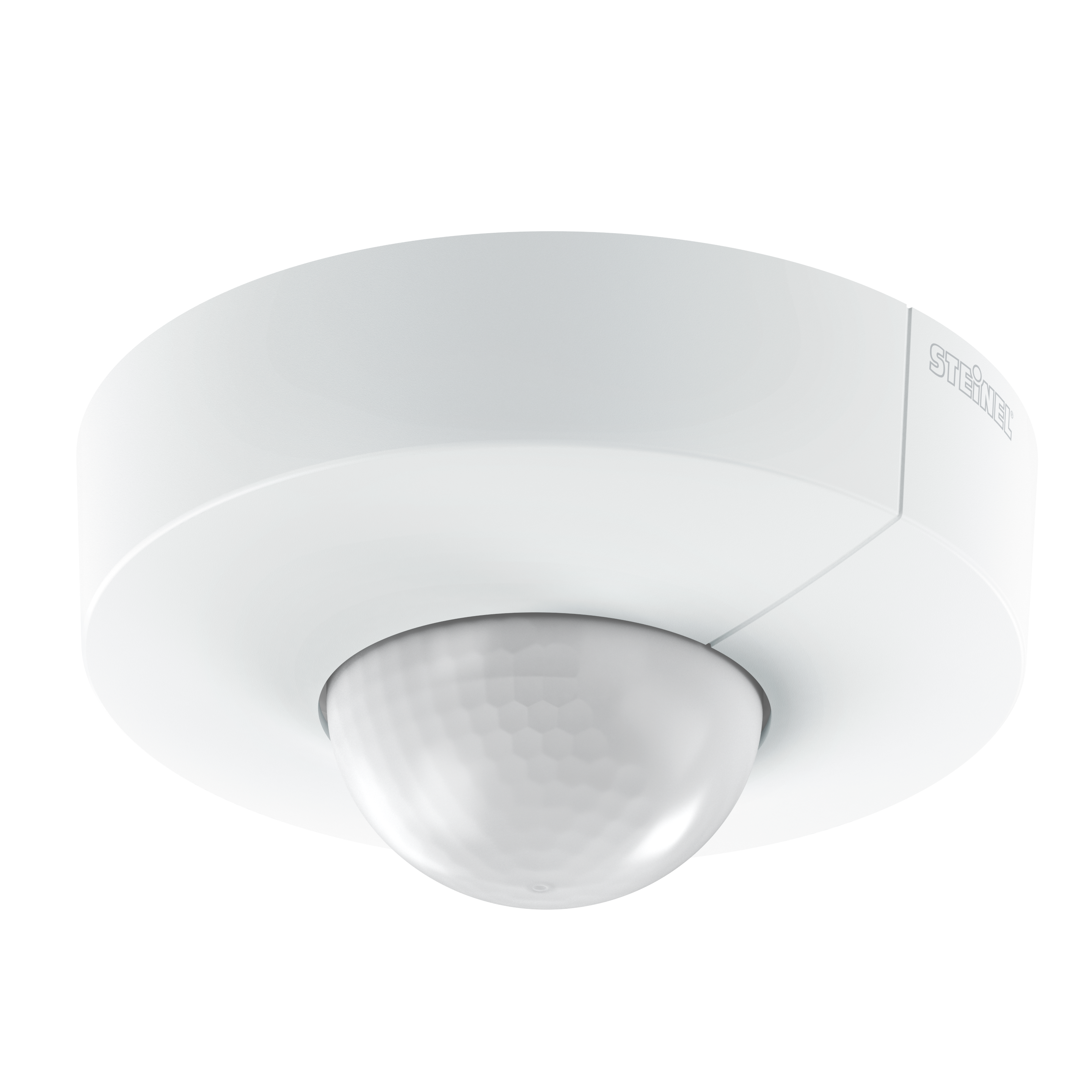

Nevalux IS 345 LiveLink - surface-mounted installation, round
ELDAS® no. 535 941 209
EAN-No. 4007841 049430
This product is being replaced by a successor product.
Go to successor product · IS 345 DALI-2 Input Device - surface, rd. (057299)Huge reach. Infrared motion detector IS 345 for indoors and out, ideal for passageways, corridors and commonly used spaces, installation height 5 m, detection zone 12 x 6 m (radial) and 23 x 6 m (tangential), large terminal compartment for easy installation. Available either in round or square surface-mounted and concealed version.
Identification
Variant
LiveLink - surface-mounted installation, round
Version
Motion detectors
Model
LiveLink
Dimensions
Dimensions Ø × H
126 x 65 mm
Electrical
Mains connection
230 V, 50 / 60 Hz
Supply voltage detail
DALI bus
Sensor technology
Sensor technology
passive infrared
Detection angle
360 °
Opening angle
45 °
Sneak-under protection
Yes
Segment-by-segment masking
Yes
Electronic scalability
No
Mechanical scalability
No
Radial range
12 x 6 m (72 m²)
Tangential range
23 x 6 m (138 m²)
Switching zones
280 switching zones
Mounting height
2,50 – 5,00 m
Optimal mounting height
2,8 m
Connectivity
Networking
Yes
Number of DALI participants
3
Lighting technology
Constant light regulation
No
Settings
Twilight setting
2 – 1000 lx
Time setting
5 sec – 15 min
Base light function
No
With remote control
No
Twilight setting teach
Yes
Housing & material
Protection class (IP)
IP54
Ambient temperature
-20 – 50 °C
Mounting location
ceiling
Application location
Indoors
Outdoors
Mounting type
Surface wiring
Material
Plastic
Colour
white
RAL colour
9003
Scope of delivery & warranty
Manufacturer warranty
5 years
Other
Application, location, room
corridor, aisle, underground car park, multi-storey car park
