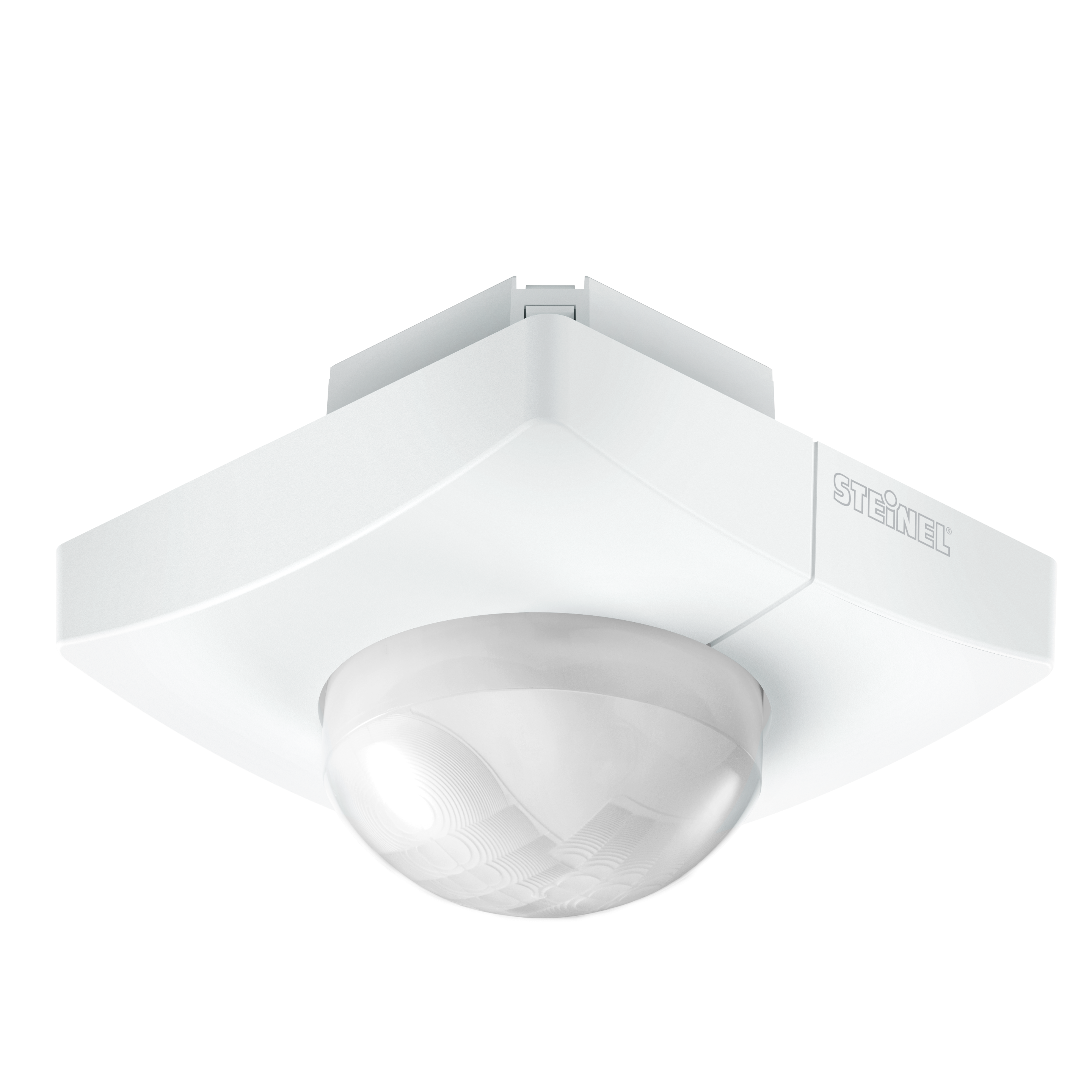

Nevalux IS 345 MX Highbay DALI - concealed installation, square
ELDAS® no. 535 941 566
EAN-No. 4007841 033934
This product is being replaced by a successor product.
Go to successor product · IS 345 MX Highbay DALI-2 APC - surface, sq. (010591)Surveillance on the highest level. Infrared motion detector IS 345 MX Highbay for indoors, ideal for large heights in depots, high-bay warehouses, machine shops, check-in areas and departure lounges, installation height 14 m, detection zone 30 x 4 m (radial), large terminal compartment for easy installation. Available as square surface-mounted and concealed version.
Identification
Variant
DALI - concealed installation, square
Version
Motion detectors
Dimensions
Dimensions L × W × H
94 x 94 x 78 mm
Electrical
Mains connection
220 – 240 V , 50 / 60 Hz
Control output DALI
Broadcast 1x30 electronic ballasts
Sensor technology
Sensor technology
passive infrared
Detection angle
360 °
Opening angle
9 °
Sneak-under protection
Yes
Segment-by-segment masking
Yes
Electronic scalability
No
Mechanical scalability
No
Radial range
30 x 4 m (120 m²)
Tangential range
30 x 4 m (120 m²)
Switching zones
280 switching zones
Mounting height
4,00 – 14,00 m
Optimal mounting height
12 m
Connectivity
Networking
Yes
Lighting technology
Constant light regulation
Yes
Settings
Twilight setting
2 – 1000 lx
Time setting
5 sec – 15 min
Base light function
Yes
Base light function time
1-30 min, all night
With remote control
No
Twilight setting teach
No
Base light function in percent
10 – 50 %
Housing & material
Protection class (IP)
IP20
Ambient temperature
-20 – 50 °C
Mounting location
ceiling
Application location
Indoors
Mounting type
Concealed wiring
Material
Plastic
Colour
white
RAL colour
9003
Scope of delivery & warranty
Manufacturer warranty
5 years
Other
Application, location, room
high-bay warehouse
