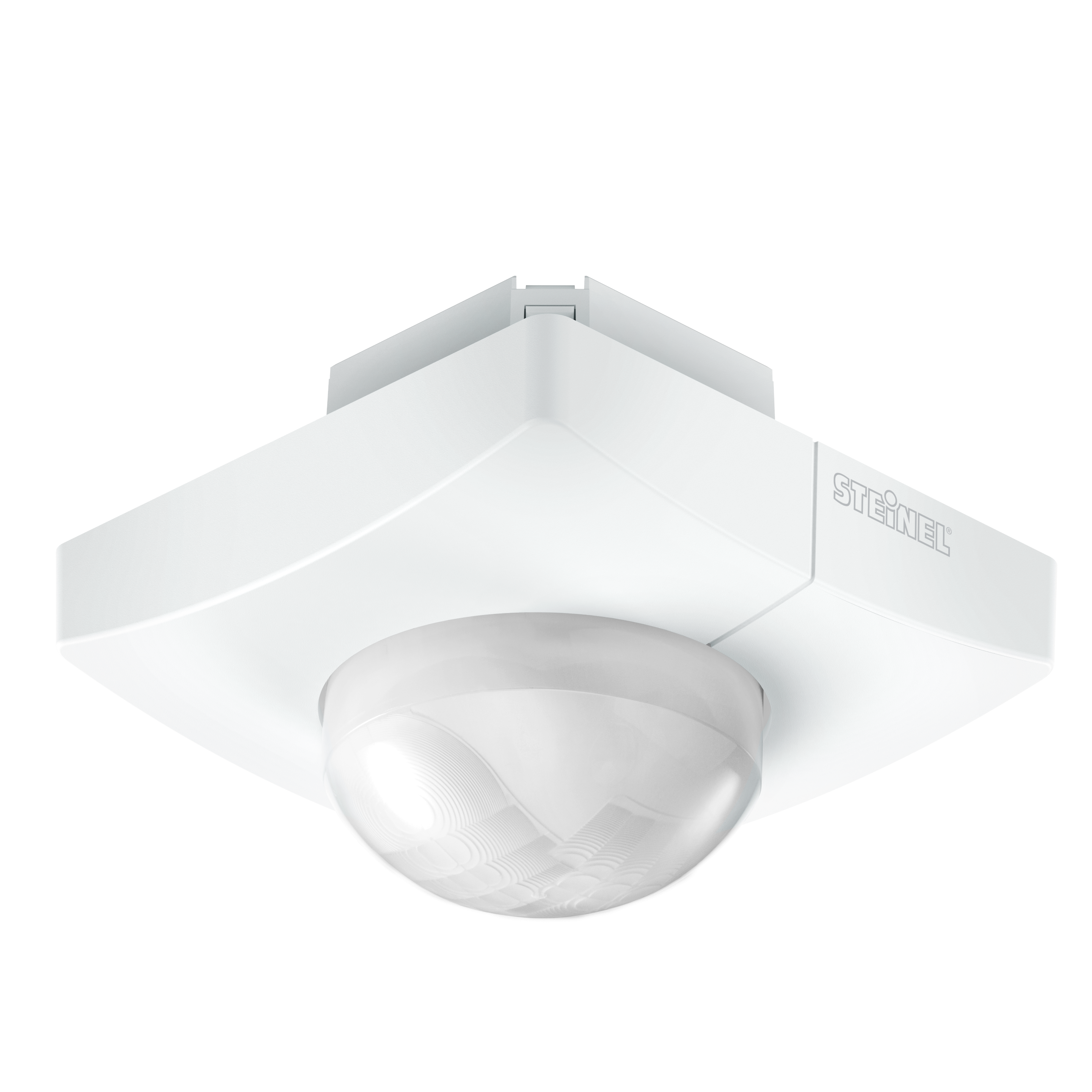

Nevalux IS 345 MX Highbay KNX - concealed installation, square
ELDAS® no. 535 941 568
EAN-No. 4007841 058302
This product is being replaced by a successor product.
Go to successor product · IS 345 MX Highbay KNX - surface, sq. (058296)Surveillance on the highest level. Infrared motion detector IS 345 MX Highbay for indoors, ideal for large heights in depots, high-bay warehouses, machine shops, check-in areas and departure lounges, installation height 14 m, detection zone 30 x 4 m (radial), large terminal compartment for easy installation. Available as square surface-mounted and concealed version.
- Optional remote controls
- UV-resistant plastic
Identification
Variant
KNX - concealed installation, square
Model
KNX
Dimensions
Dimensions L × W × H
94 x 94 x 78 mm
Sensor technology
Sensor technology
passive infrared
Segment-by-segment masking
Yes
Electronic scalability
No
Mechanical scalability
No
Mounting height
4,00 – 14,00 m
Optimal mounting height
12 m
Connectivity
KNX functions
Photo-cell controller, Basic light level function, Light level, HVAC output, Constant-lighting control, Light output 2x, Presence output, Day / night function
With bus coupler
Yes
Settings
Time setting
0 – 1092 min
Housing & material
Mounting location
ceiling
Application location
Indoors
Mounting type
Concealed wiring
Other
Application, location, room
high-bay warehouse
