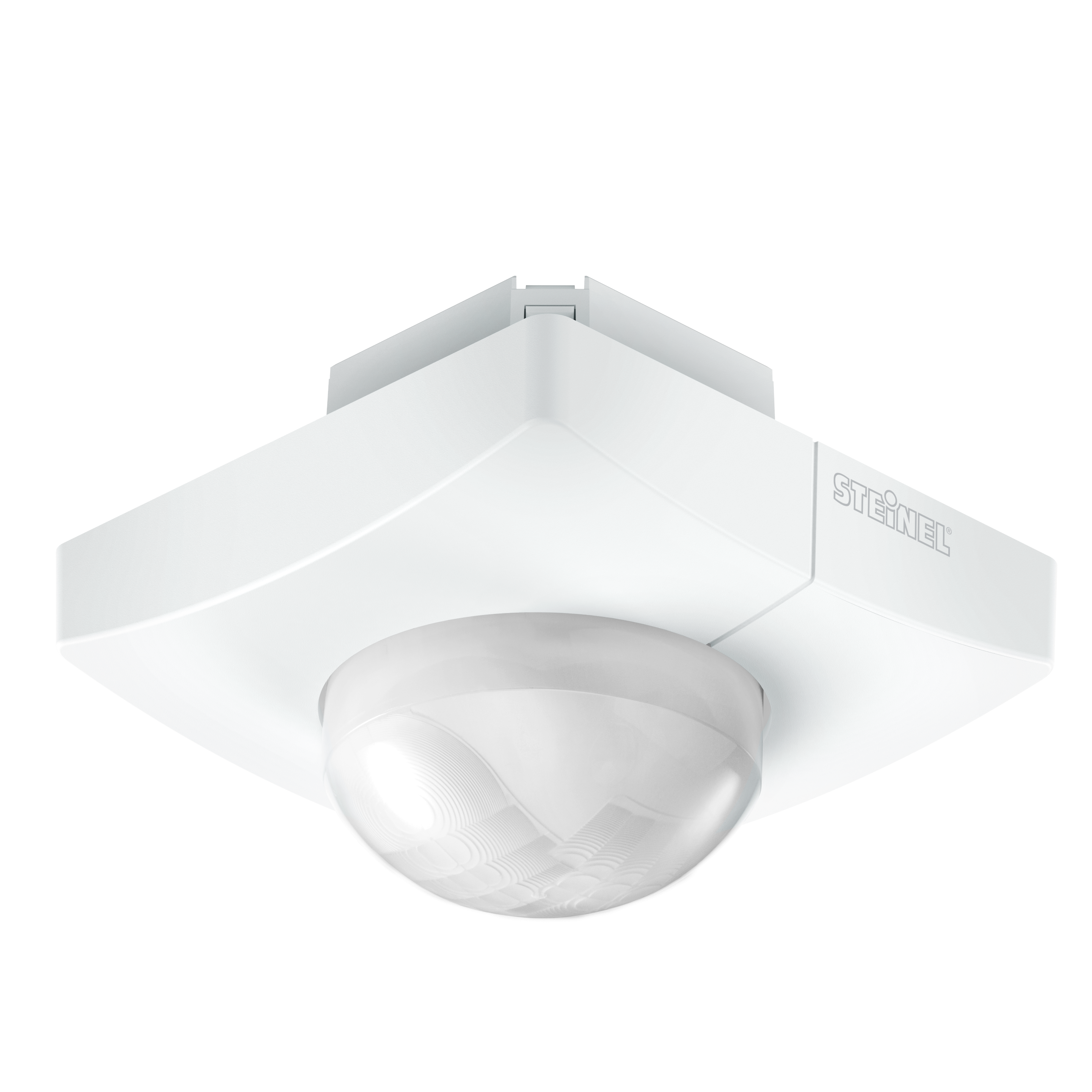

Nevalux IS 345 MX Highbay PF - concealed installation, square

ELDAS® no. 535 941 567

EAN-No. 4007841 033927

This product is being replaced by a successor product.

Go to successor product · IS 345 MX Highbay PF - surface, sq. (010522)

Surveillance on the highest level. Infrared motion detector IS 345 MX Highbay for indoors, ideal for large heights in depots, high-bay warehouses, machine shops, check-in areas and departure lounges, installation height 14 m, detection zone 30 x 4 m (radial), large terminal compartment for easy installation, heavy-duty relay for high switching capacity. Available as square surface-mounted and concealed version.

Identification

Variant PF - concealed installation, square

Version Motion detectors

Dimensions

Dimensions L × W × H 94 x 94 x 78 mm

Electrical

Mains connection 220 – 240 V , 50 / 60 Hz

Sensor technology

Sensor technology passive infrared

Detection angle 360 °

Opening angle 9 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability No

Radial range 30 x 4 m (120 m²)

Tangential range 30 x 4 m (120 m²)

Switching zones 280 switching zones

Mounting height 4,00 – 14,00 m

Optimal mounting height 12 m

Connectivity

Networking Yes

Lighting technology

Constant light regulation No

Settings

Twilight setting 2 – 1000 lx

Time setting 5 sec – 15 min

Base light function No

With remote control No

Twilight setting teach Yes

Housing & material

Protection class (IP) IP20

Ambient temperature -20 – 50 °C

Mounting location ceiling

Application location Indoors

Mounting type Concealed wiring

Material Plastic

Colour white

RAL colour 9003

Scope of delivery & warranty

Manufacturer warranty 5 years

Other

Application, location, room high-bay warehouse
