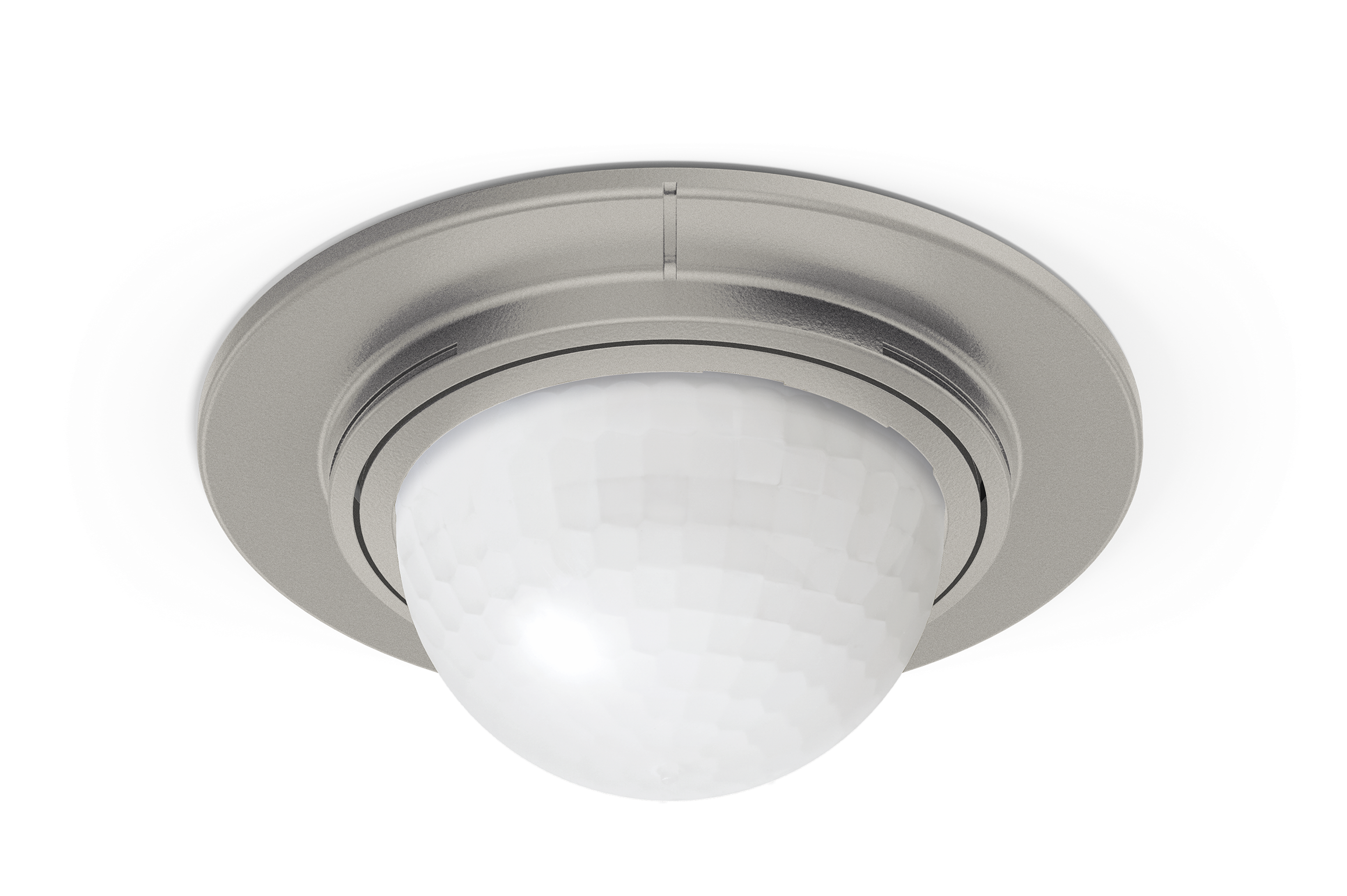

Nevalux IS 360-1 DE inox
ELDAS® no. 535 942 730
EAN-No. 4007841 034917
This product is being replaced by a successor product.
Go to successor product · IS 360-1 DE white (032845)Intelligent technology for installation. Infrared wall sensor IS 360-1 DE, for indoors and out, ideal for installing in projecting roofs and suspended ceilings, 360° angle of coverage, reach can be set up to 4 m, selectable time and twilight threshold, detection zone can be customised with shrouds.
- UV-resistant plastic
Identification
Version
Motion detectors
Dimensions
Dimensions Ø × H
78 x 89 mm
Electrical
Mains connection
230 – 240 V / 50 – 60 Hz
Power
1000 W
Switching output 1 resistive
1000 W
Fluorescent lamps ECG
430 W
Fluorescent lamps uncompensated
500 VA
Fluorescent lamps series-compensated
406 VA
Fluorescent lamps parallel-compensated
406 VA
Switching output 1 low-voltage halogen lamps
1000 VA
LED lamps < 2 W
16 W
LED lamps > 2 W < 8 W
64 W
LED lamps > 8 W
64 W
Capacitive load in µF
132 µF
Switching output 1 number of LED/fluorescent lamps
6 pcs.
Sensor technology
Max. mounting height
4,00 m
Sensor technology
passive infrared
Detection angle
360 °
Opening angle
90 °
Sneak-under protection
Yes
Segment-by-segment masking
Yes
Electronic scalability
No
Mechanical scalability
No
Radial range
Ø 4 m (13 m²)
Tangential range
Ø 8 m (50 m²)
Switching zones
304 switching zones
Mounting height
2,50 – 4,00 m
Optimal mounting height
2,5 m
Connectivity
Networking
Yes
Type of networking
Master/master
Networking via
Cable
Lighting technology
Soft light start
No
Continuous light
selectable
Constant light regulation
No
Settings
Twilight switch
Yes
Twilight setting
2 – 2000 lx
Time setting
8 s – 35 Min.
Base light function
No
Main light adjustable
No
Settings via
Potentiometers
With remote control
No
Twilight setting teach
No
Housing & material
Protection class (IP)
IP54
Protection class
II
Ambient temperature
-20 – 40 °C
Mounting location
ceiling
Application location
Indoors
Outdoors
Mounting type
In-ceiling installation
Material
Plastic
Application room
Indoors
all round the building
front door
outdoors
terrace / balcony
Colour
Silver
RAL colour
9006
Scope of delivery & warranty
Manufacturer warranty
3 years
Corner wall bracket included
No

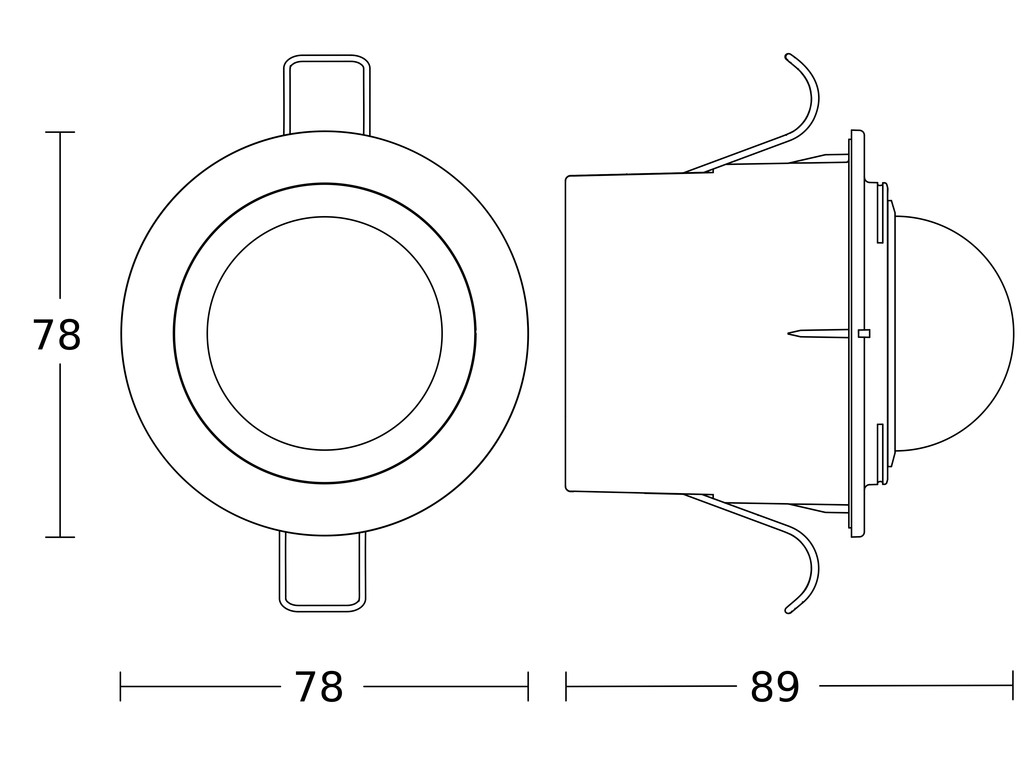

Technical drawing
Sensor detection range
Wiring diagram 1
Light without neutral conductor

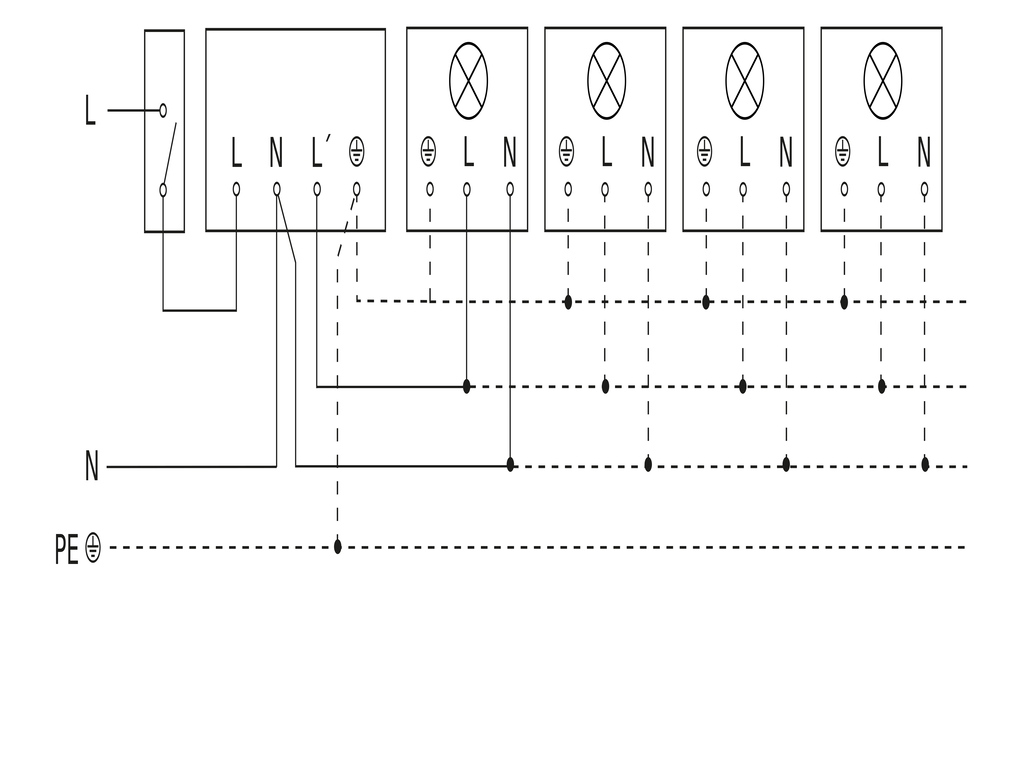

Wiring diagram 2
Light with neutral conductor
