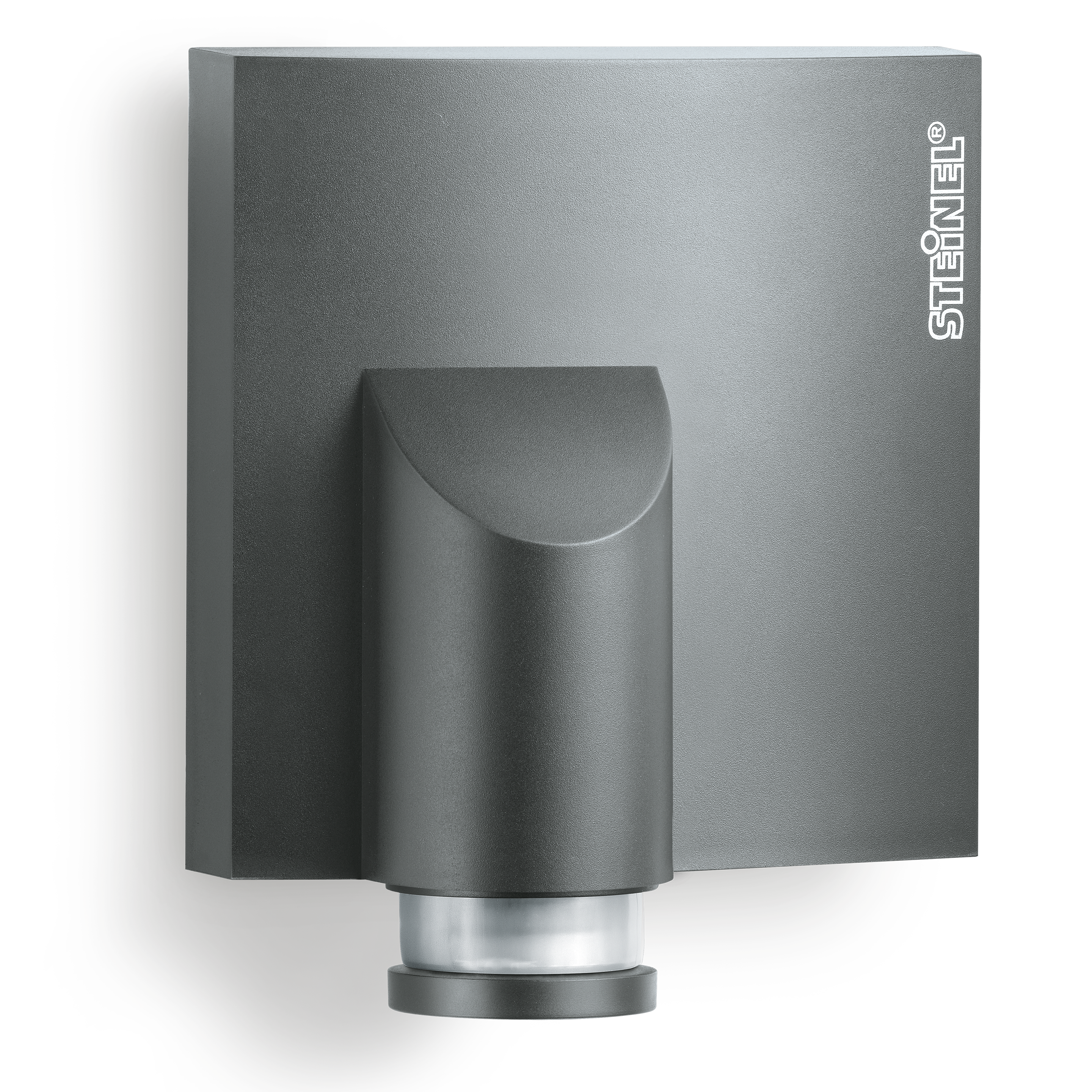

Nevalux IS NM 360 Anthracite
EAN-No. 4007841 049461
This product is being replaced by a successor product.
Go to successor product · IS 2180 ECO Anthracite (064907)Motion detector and photo-electric lighting controller in one. Infrared motion detector IS NM 360, for indoors and out, ideal for building fronts and driveways, 360° angle of coverage, reach up to 8 m all round, selectable time and twilight threshold, 4 function programmes geared to practical needs, with optional manual override.
- UV-resistant plastic
- Sensor with 4 intelligent programmes
Identification
Variant
Anthracite
Version
Motion detectors
Dimensions
Dimensions L × W × H
114 x 100 x 58 mm
Electrical
Mains connection
220 – 240 V , 50 / 50 Hz
Switching output 1 resistive
1000 W
Switching output 1 number of LED/fluorescent lamps
6 pcs.
Sensor technology
Sensor technology
passive infrared
Detection angle
360 °
Opening angle
90 °
Sneak-under protection
Yes
Segment-by-segment masking
Yes
Electronic scalability
No
Mechanical scalability
No
Tangential range
Ø 16 m (201 m²)
Switching zones
512 switching zones
Optimal mounting height
2 m
Connectivity
Networking
Yes
Lighting technology
Constant light regulation
No
Settings
Twilight setting
2 – 1000 lx
Time setting
5 sec – 15 min
Base light function
No
With remote control
No
Twilight setting teach
No
Housing & material
Protection class (IP)
IP54
Ambient temperature
-20 – 50 °C
Mounting location
wall
Application location
Indoors
Outdoors
Mounting type
Surface wiring
Material
Plastic
Colour
Anthracite
RAL colour
9010
Scope of delivery & warranty
Manufacturer warranty
3 years
