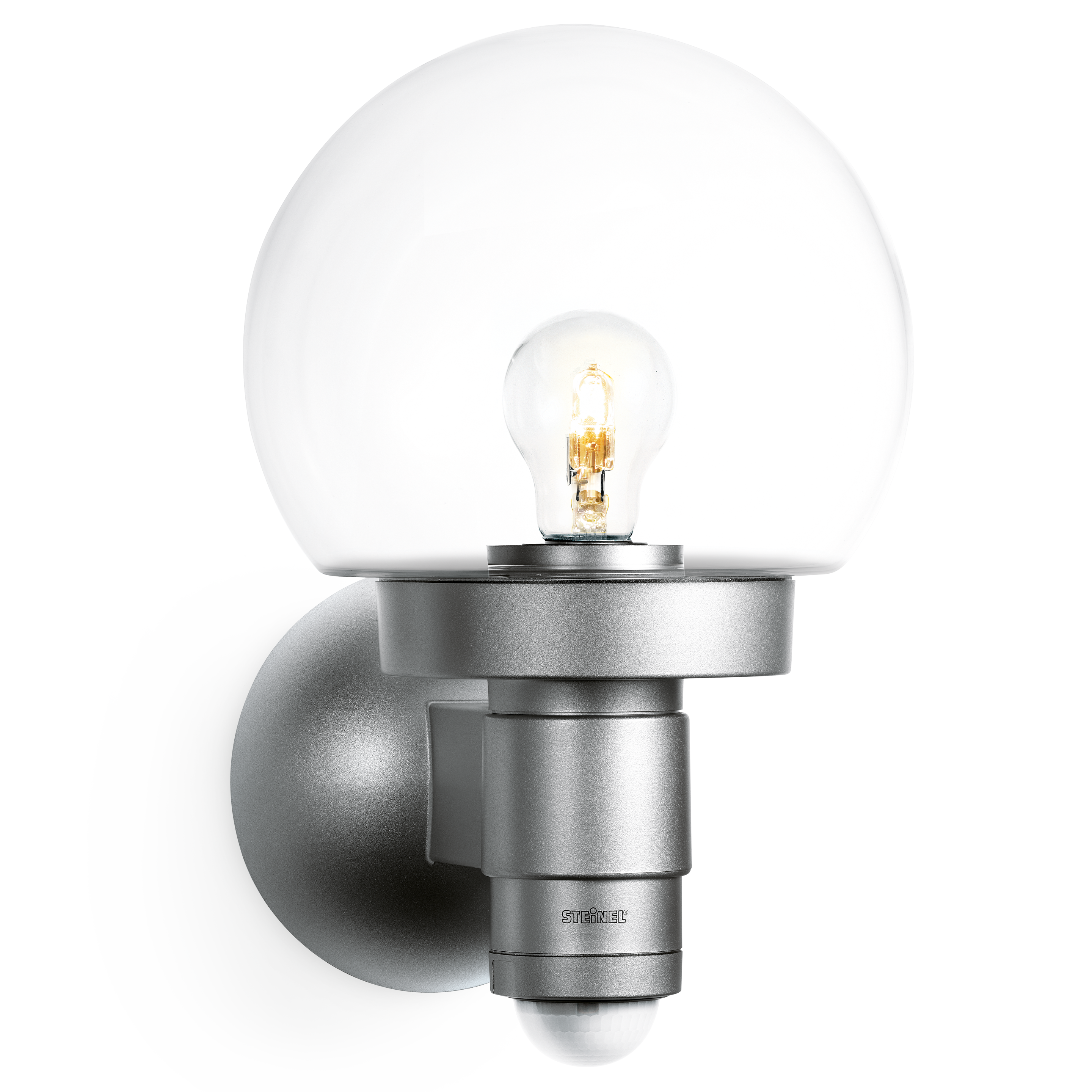

Nevalux L 115 S Silver
EAN-No. 4007841 657512
This product is being replaced by a successor product.
Go to successor product · L 400 S white (611118)Bright individual. Sensor-switched outdoor light L 115 S, ideal for building fronts and building entrances, 240° angle of coverage, reach up to 12 m, selectable time and twilight threshold, basic light-level function.
- Optional basic lighting level 0 - 50 %
- UV-resistant plastic
- Intelligent soft light start
- 4-hour manual override (optional)
Identification
Variant
Silver
Dimensions
Dimensions L × W × H
330 x 215 x 257 mm
Electrical
Mains connection
230 – 240 V , 50 / 60 Hz
Power
60 W
Sensor technology
Sensor technology
passive infrared
With motion detector
Yes
Detection angle
240 °
Opening angle
120 °
Sneak-under protection
Yes
Segment-by-segment masking
Yes
Electronic scalability
No
Mechanical scalability
No
Radial range
r = 12 m (302 m²)
Tangential range
r = 12 m (302 m²)
Lighting technology
With illuminant
No
Illuminant
All-purpose lamp
Base
E27
Soft light start
Yes
Continuous light
selectable, 4h
Settings
Twilight switch
Yes
Twilight setting
2 – 2000 lx
Time setting
5 sec – 15 min
Base light function
Yes
Settings via
Potentiometers
Housing & material
Impact resistance
IK00
Protection class (IP)
IP44
Protection class
II
Ambient temperature
-20 – 40 °C
Housing material
Plastic
Cover material
Glass transparent
Scope of delivery & warranty
Manufacturer warranty
3 years
