Nevalux L 170 S

Nevalux L 170 S

ELDAS® no. 924 350 279 · EAN-No. 4007841 645311

Technical data Illustrations Downloads Accessories
Nevalux

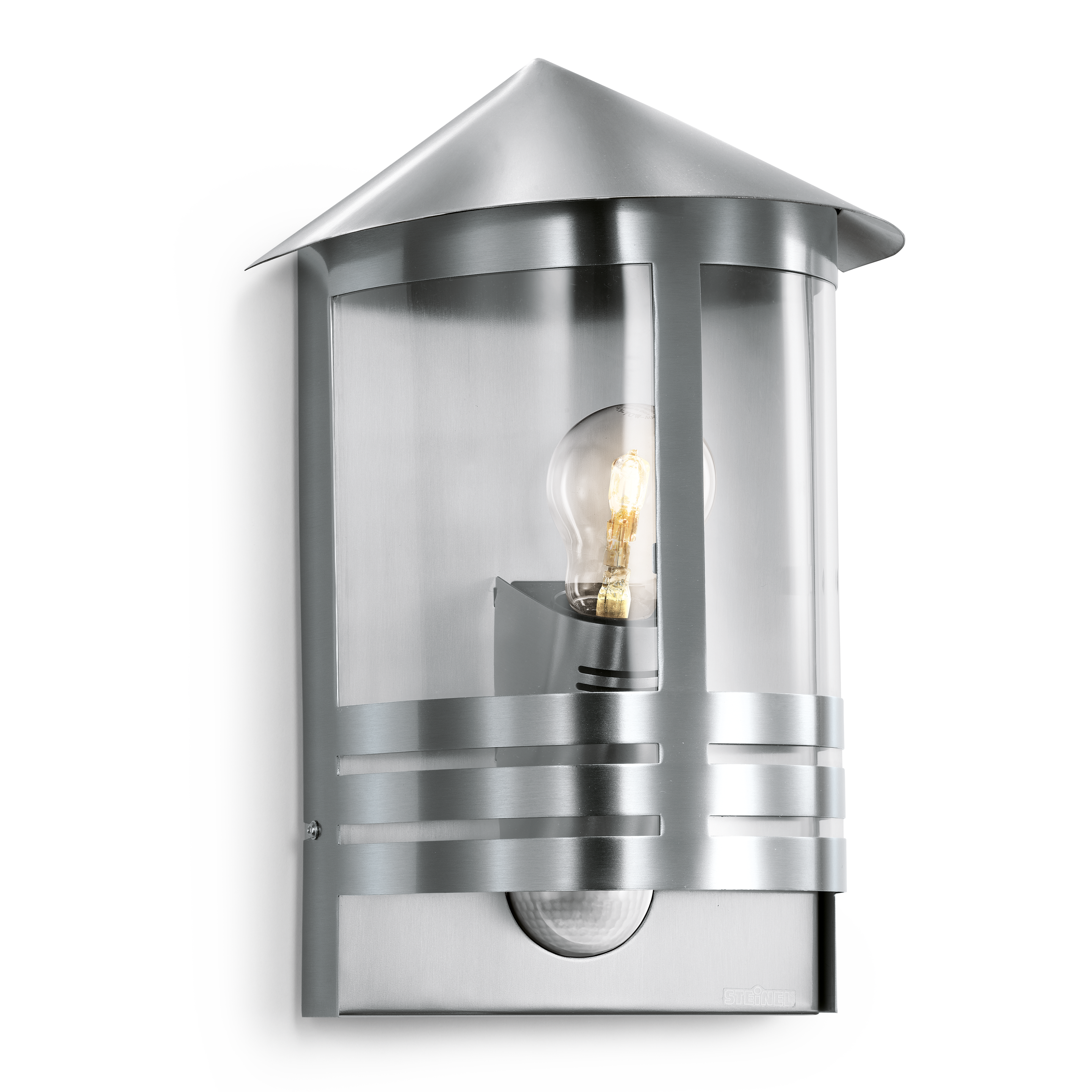

Nevalux L 170 S

ELDAS® no. 924 350 279

EAN-No. 4007841 645311

Discontinued

This product is being discontinued and is available while stocks last. No successor product has been announced yet.

Price: Please log in to see prices

Modern lantern. Classic outdoor SensorLight L 170 S, ideal for prestigious outdoor spaces, 180° angle of coverage, reach can be set up to 12 m or up to 5 m, stainless-steel trim panel, basic light-level function and soft light start.

  • Intelligent soft light start
  • Optional basic lighting level 0 - 50 %
  • High-quality designer trim panel in stainless steel
  • 4-hour manual override (optional)

Dimensions

Dimensions L × W × H 340 x 220 x 150 mm

Electrical

Mains connection 230 – 240 V , 60 / 60 Hz
Power 100 W

Sensor technology

Sensor technology passive infrared
With motion detector Yes
Detection angle 180 °
Opening angle 90 °
Sneak-under protection Yes
Segment-by-segment masking Yes
Electronic scalability No
Mechanical scalability No
Tangential range r = 12 m (226 m²)

Lighting technology

With illuminant No
Illuminant All-purpose lamp
Base E27
Soft light start Yes
Continuous light selectable, 4h

Settings

Twilight switch Yes
Twilight setting 2 – 2000 lx
Time setting 5 sec – 15 min

Housing & material

Protection class (IP) IP43
Protection class II
Ambient temperature -20 – 40 °C
Housing material Stainless steel
Cover material Glass transparent

Scope of delivery & warranty

Manufacturer warranty 3 years

Sensor detection range

Replacement glass shade for L 170 S

Replacement glass shade for L 170 S

Item no. 4007841001513

Replacement base unit for L 170 / L 190 S

Replacement base unit for L 170 / L 190 S

Item no. 002190
