Nevalux L 220 S Stainless steel

Nevalux L 220 S Stainless steel

ELDAS® no. 924 360 002 · EAN-No. 4007841 010454

Technical data Illustrations Wiring diagrams Downloads
Nevalux

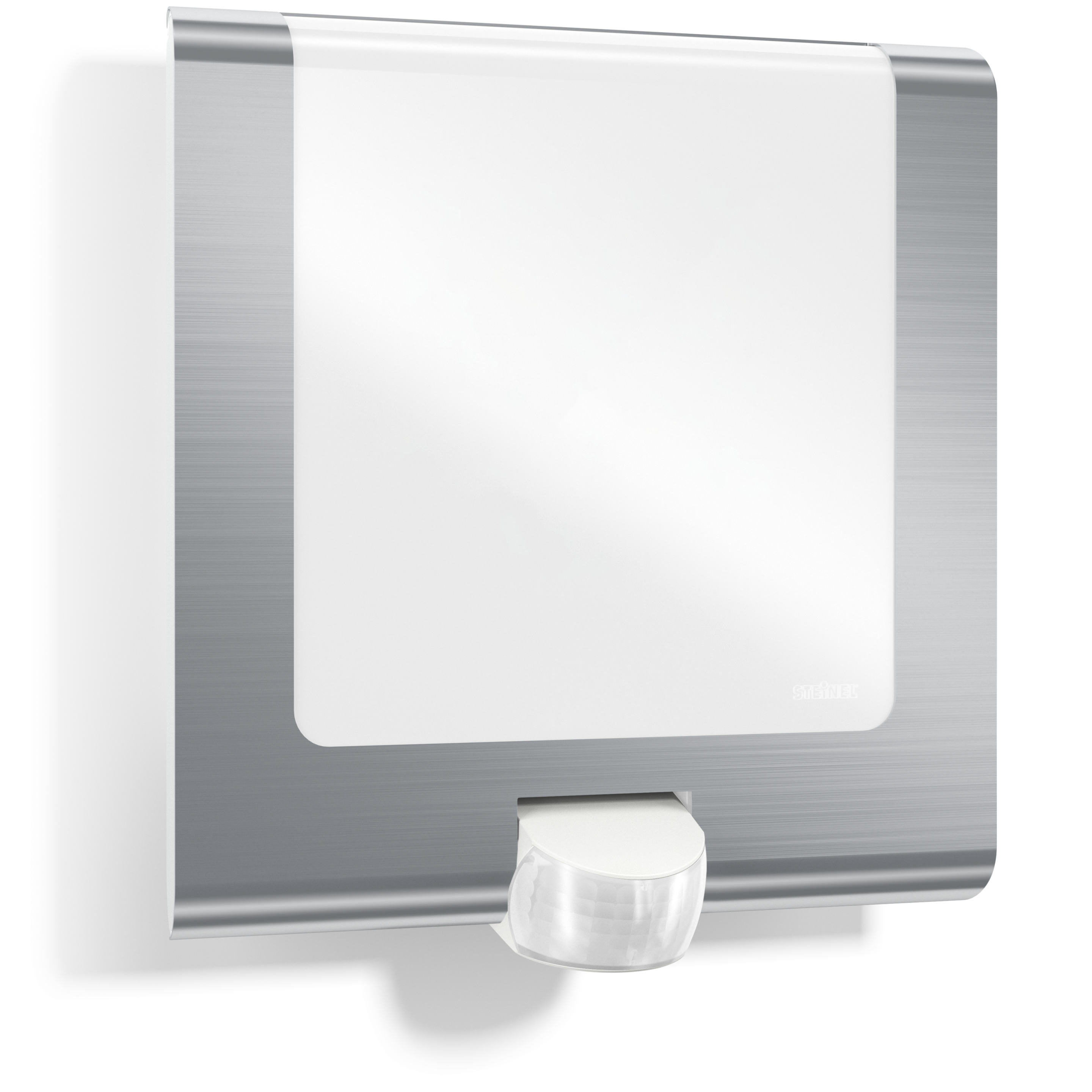

Nevalux L 220 S Stainless steel

ELDAS® no. 924 360 002

EAN-No. 4007841 010454

Discontinued

This product is being discontinued and is available while stocks last. No successor product has been announced yet.

Price: Please log in to see prices

Light with informative value. Modern L 220 S sensor-switched LED outdoor light with large, square front surface for self-adhesive house numbers. Inviting, soft ambient light for entrances. Light output of 869 lm at a power consumption of only 9,3 W. 180° angle of coverage, 10 m reach.

  • Including STEINEL LED system
  • LED ambient light
  • Rustproof stainless steel trim
  • Impact-resistant material rated to IK07
  • Including sheet of self-adhesive house numbers

Dimensions

Dimensions L × W × H 84 x 246 x 251 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 9,3 W

Sensor technology

Max. mounting height 3,00 m
Sensor technology Passiv Infrarot
With motion detector Yes
Sneak-under protection Yes
Segment-by-segment masking Yes
Electronic scalability No
Mechanical scalability No
Radial range r = 3 m (14 m²)
Tangential range r = 10 m (157 m²)
Mounting height 1,80 – 3,00 m
Optimal mounting height 2 m

Connectivity

Networking Nein
Slave mode adjustable No

Lighting technology

Measured luminous flux 360° 869 lm
Efficiency 93 lm/W
Colour temperature 3000 K
LED colour deviation SDCM3
Colour rendering index 80-89
With illuminant Ja, STEINEL LED-System
Illuminant LED nicht austauschbar
Base Ohne
LED cooling system Passive Thermo Control
Soft light start No

Lifetime

LED lifetime L70B50 25°C > 60000 Std
Average rated power supply lifetime at 25 °C > 60000 Std

Settings

Twilight switch Ja
Twilight setting 2 – 2000 lx
Time setting 8 s – 35 Min.
Base light function Nein
Main light adjustable No
Settings via Potis
With remote control No

Housing & material

Impact resistance IK07
Protection class (IP) IP44
Protection class II
Ambient temperature -20 – 50 °C
Housing material Edelstahl
Cover material Kunststoff opal
Cover material (scope of delivery) Aufkleber
Mounting location Wand
Application location Außenbereich
Mounting type Aufputz
Application room Außenbereich Hauseingang Rund ums Haus Terrasse / Balkon Hof & Einfahrt
Colour Edelstahl

Scope of delivery & warranty

Manufacturer warranty 3 Jahre
House number sheet included Yes

Certificates & EPREL

Certificates TÜV
EPREL category Umgebenes Produkt mit integrierter Lichtquelle

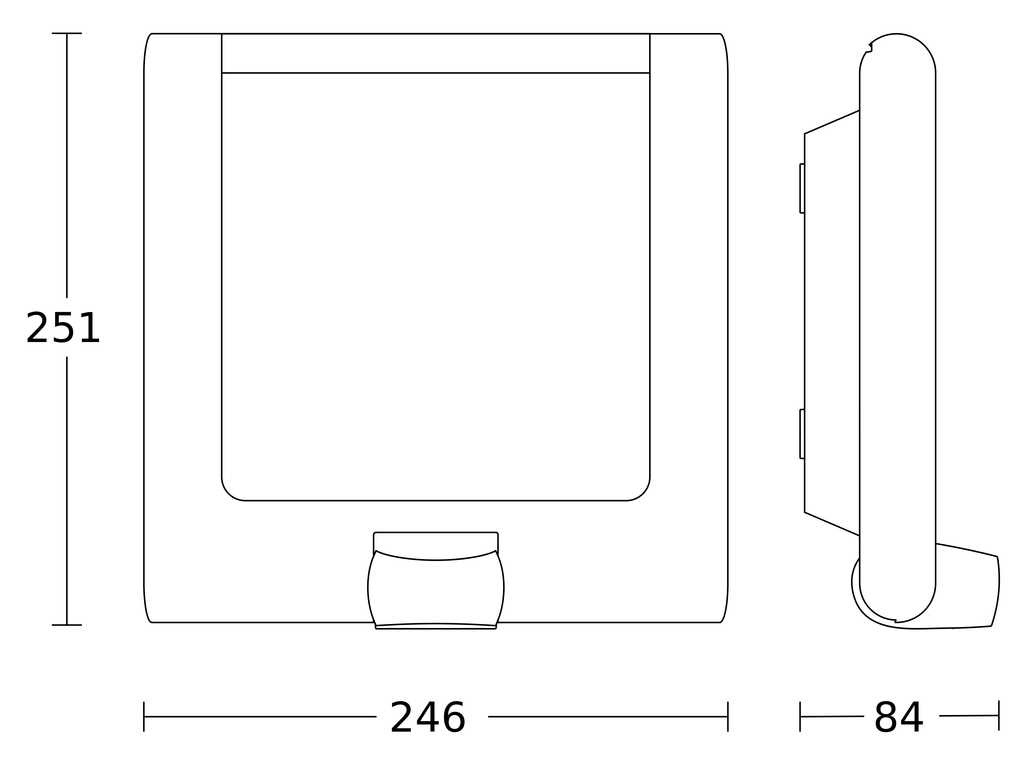

Technical drawing

Sensor detection range

Wiring diagram 1

Circuit diagram
