Nevalux L 620 CAM SC Anthracite

Nevalux L 620 CAM SC Anthracite

ELDAS® no. 941 200 649 · EAN-No. 4007841 065829

Technical data Illustrations Wiring diagrams Downloads
Nevalux

Nevalux L 620 CAM SC Anthracite

ELDAS® no. 941 200 649

EAN-No. 4007841 065829

Discontinued

This product is being discontinued and is available while stocks last. No successor product has been announced yet.

Price: Please log in to see prices

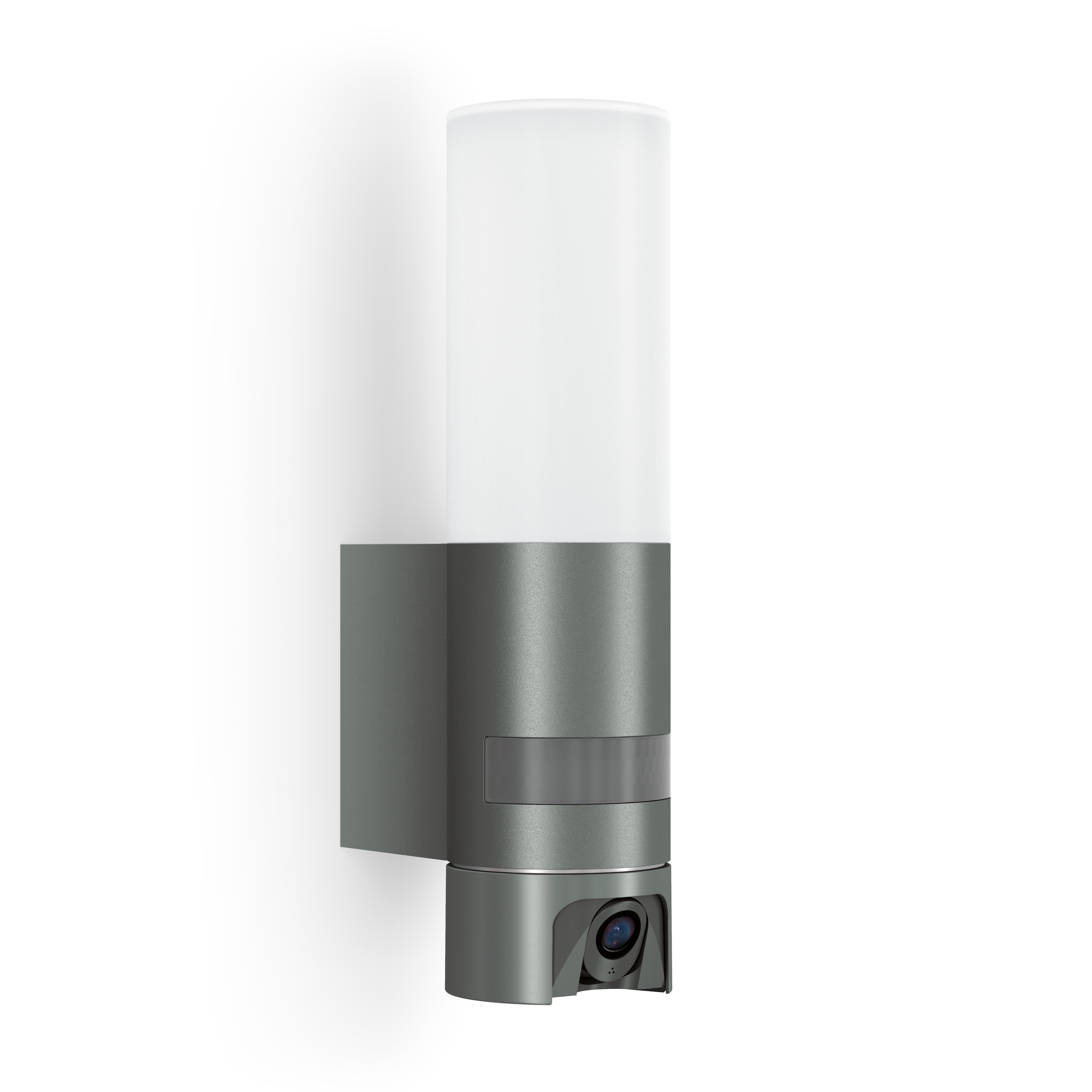

Smart. Safe. Intelligent. The L 620 CAM SC is an outdoor light, motion detector, surveillance camera and intercom all in one. The 180° infrared motion sensor with 10 m range detects every movement. With warm white 3000 K and 925 lm, the 14 W luminaire provides pleasant light. Wireless networking via WLAN and individual settings via STEINEL CAM App.

  • High-quality aluminium
  • Micro SD card (16 GB included)
  • Integrated intercom unit
  • Communication via smartphone
  • High-precision sensor
  • 1080p Full HD wide-angle colour camera, 180° swiveling
  • Optional basic lighting level 0 - 40%
  • Adjustable main light brightness (30 - 100%)

Dimensions

Dimensions L × W × H 131 x 78 x 305 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 14 W

Sensor technology

Max. mounting height 2,00 m
Sensor technology Passiv Infrarot
With motion detector Yes
Opening angle 45 °
Sneak-under protection No
Segment-by-segment masking No
Electronic scalability Yes
Mechanical scalability No
Radial range r = 2 m (6 m²)
Tangential range r = 10 m (157 m²)
Mounting height 1,80 – 2,00 m
Optimal mounting height 2 m

Connectivity

Networking via WLAN

Lighting technology

Measured luminous flux 360° 925 lm
Efficiency 67 lm/W
Colour temperature 3000 K
Colour rendering index = 80
With illuminant Ja, STEINEL LED-System
Illuminant LED nicht austauschbar
Base Ohne
LED cooling system Passive Thermo Control
Soft light start No
Continuous light schaltbar

Lifetime

LED lifetime L70B50 25°C > 36000 Std
Average rated power supply lifetime at 25 °C > 36000 Std

Settings

Twilight switch Ja
Twilight setting 10 – 10000 lx
Time setting 60 s – 15 Min.
Base light function Ja
Main light adjustable 30 - 100 %
Functions BewegungssensorGegensprechanlageKamera
Settings via WLAN
With remote control No
Twilight setting teach No
Base light function in percent 0 %
Base light function percent from 0

Housing & material

Impact resistance IK03
Protection class (IP) IP44
Protection class I
Ambient temperature von -10 bis 40 °C
Housing material Aluminium
Cover material Glas opal
Mounting location Wand
Application location Außenbereich
Mounting type Aufputz
Material Aluminium
Application room AufenthaltsraumHauseingangHof & Einfahrt
Colour Anthrazit

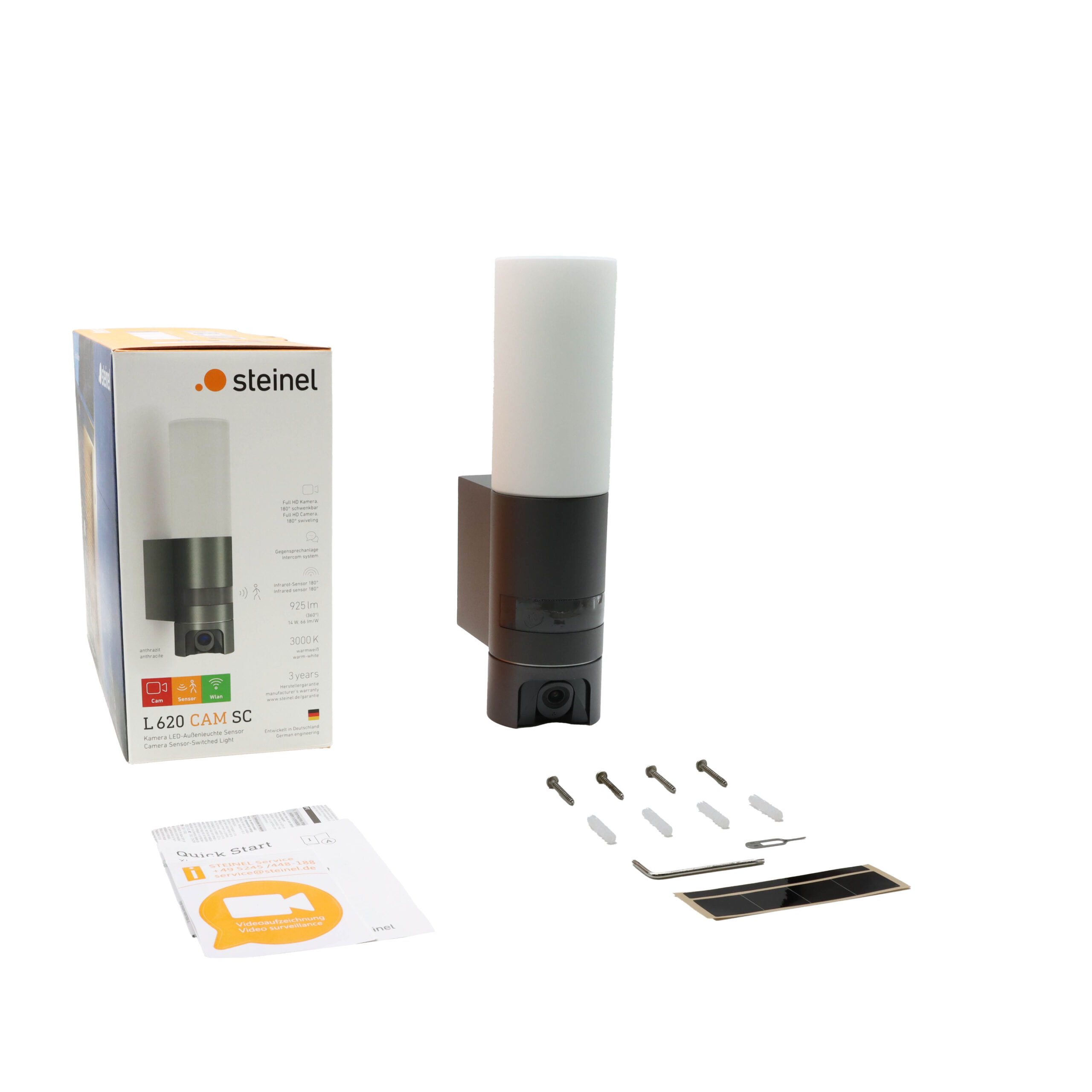

Scope of delivery & warranty

Manufacturer warranty 3 Jahre
House number sheet included No

Certificates & EPREL

EPREL category Umgebenes Produkt mit integrierter Lichtquelle

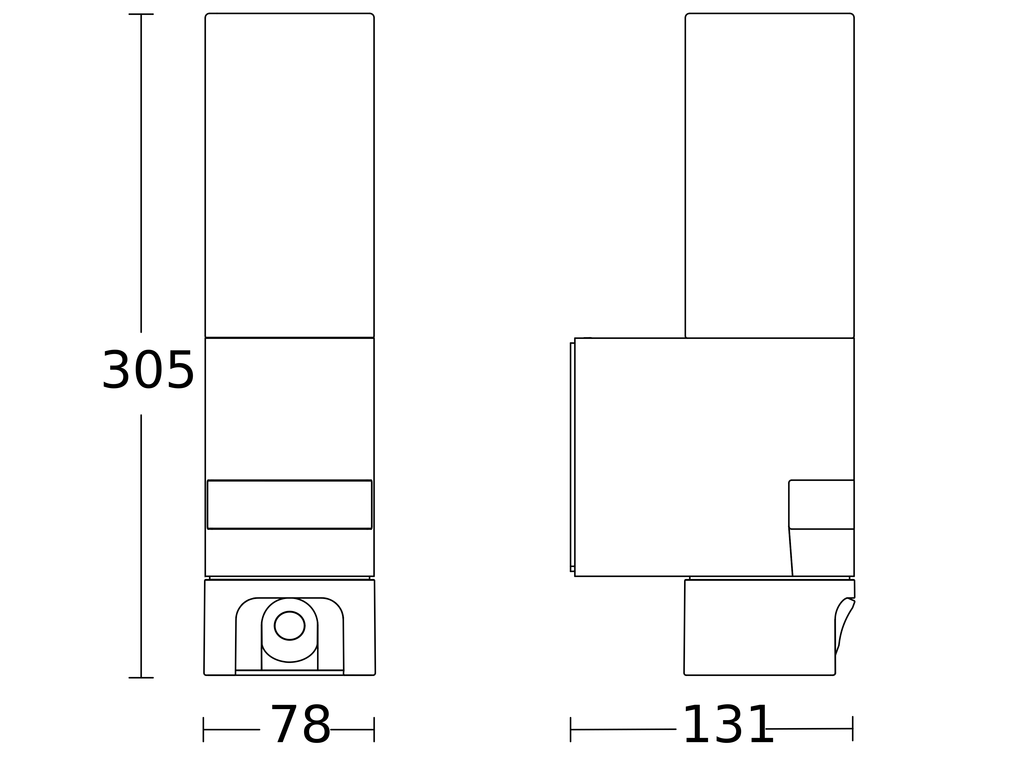

Technical drawing

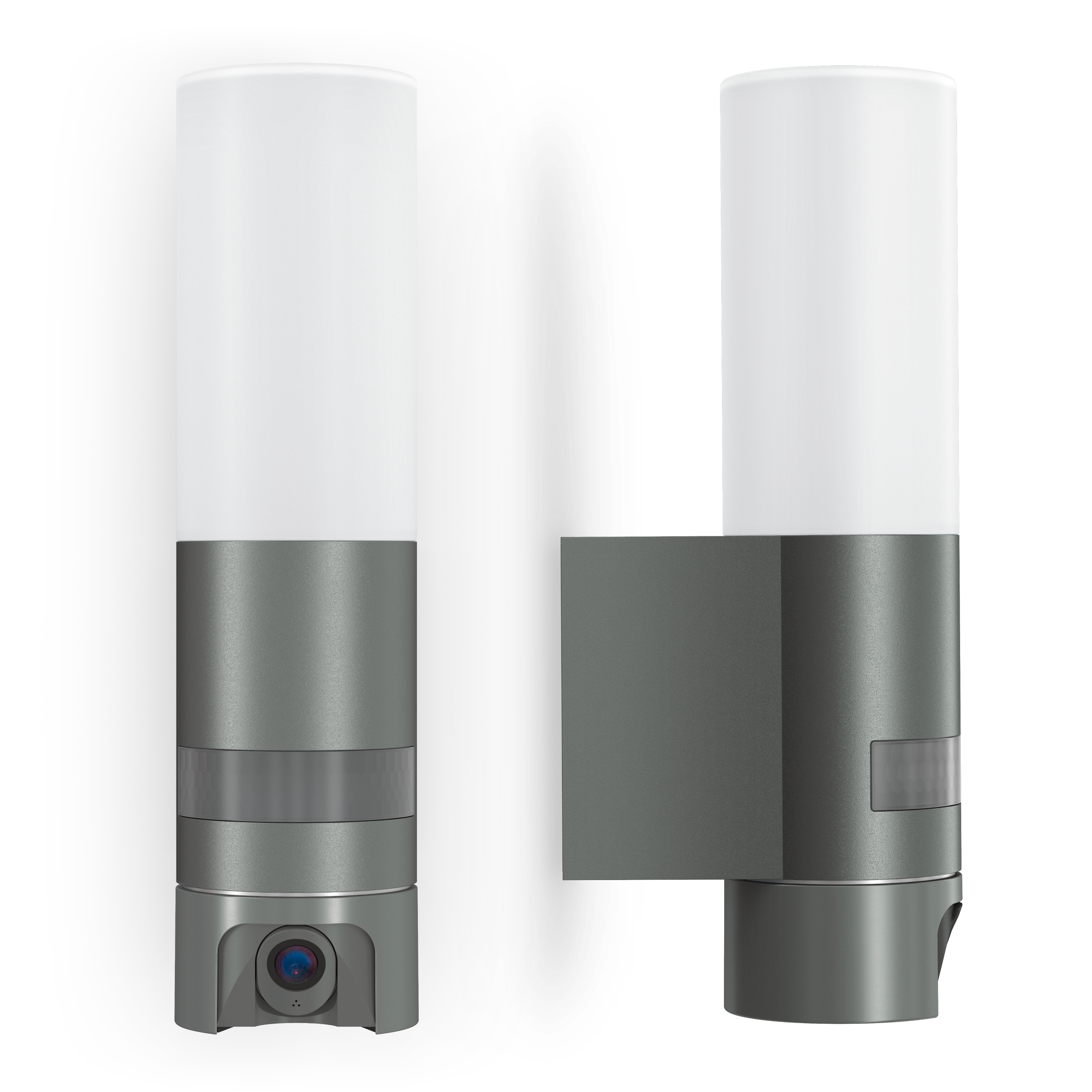

Sensor detection range

Wiring diagram 1

Master circuit diagram

Wiring diagram 2

Master/slave interconnection circuit diagram
