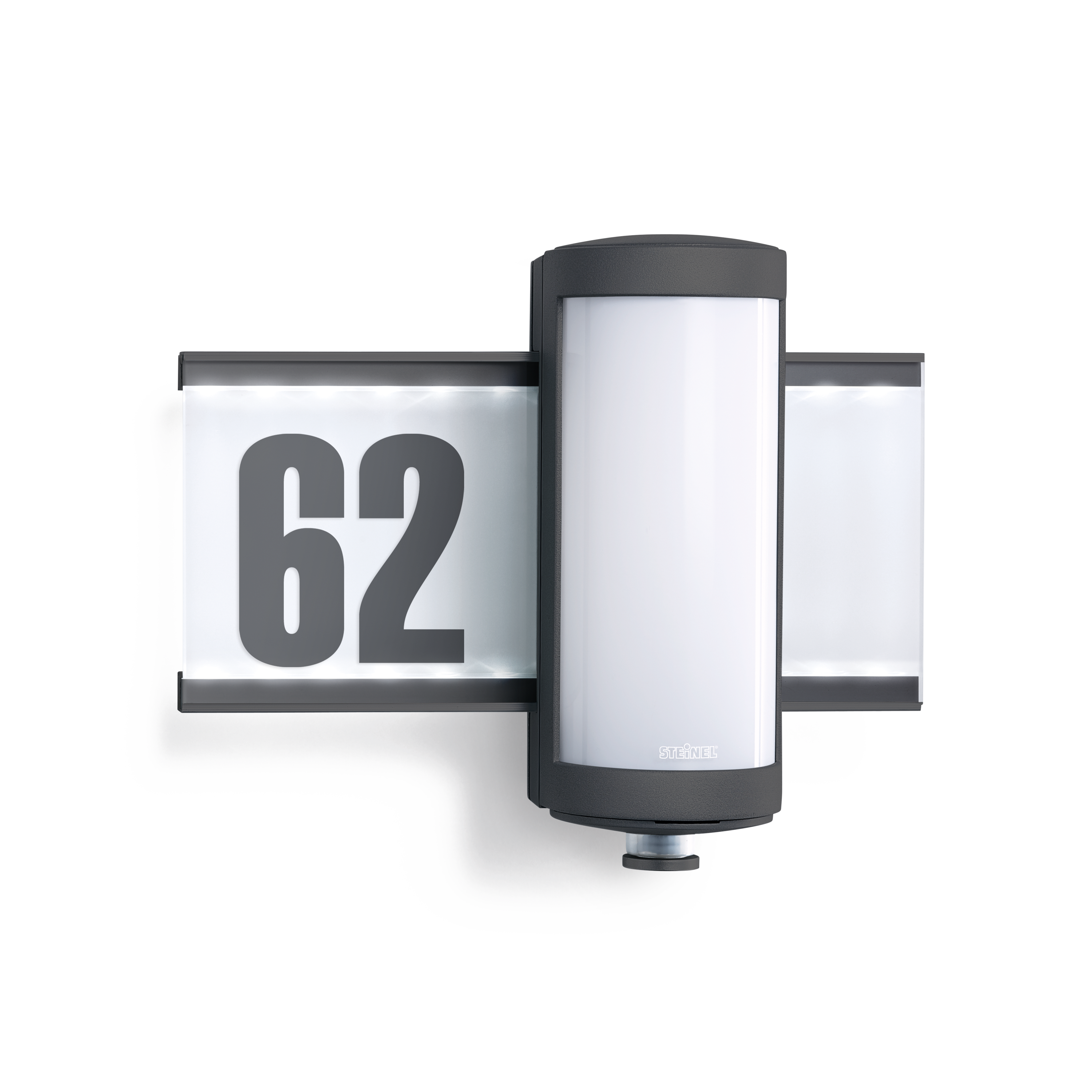

Nevalux L 625 LED aluminium-ant.

EAN-No. 4007841 059934

Discontinued

This product is being discontinued and is available while stocks last. No successor product has been announced yet.

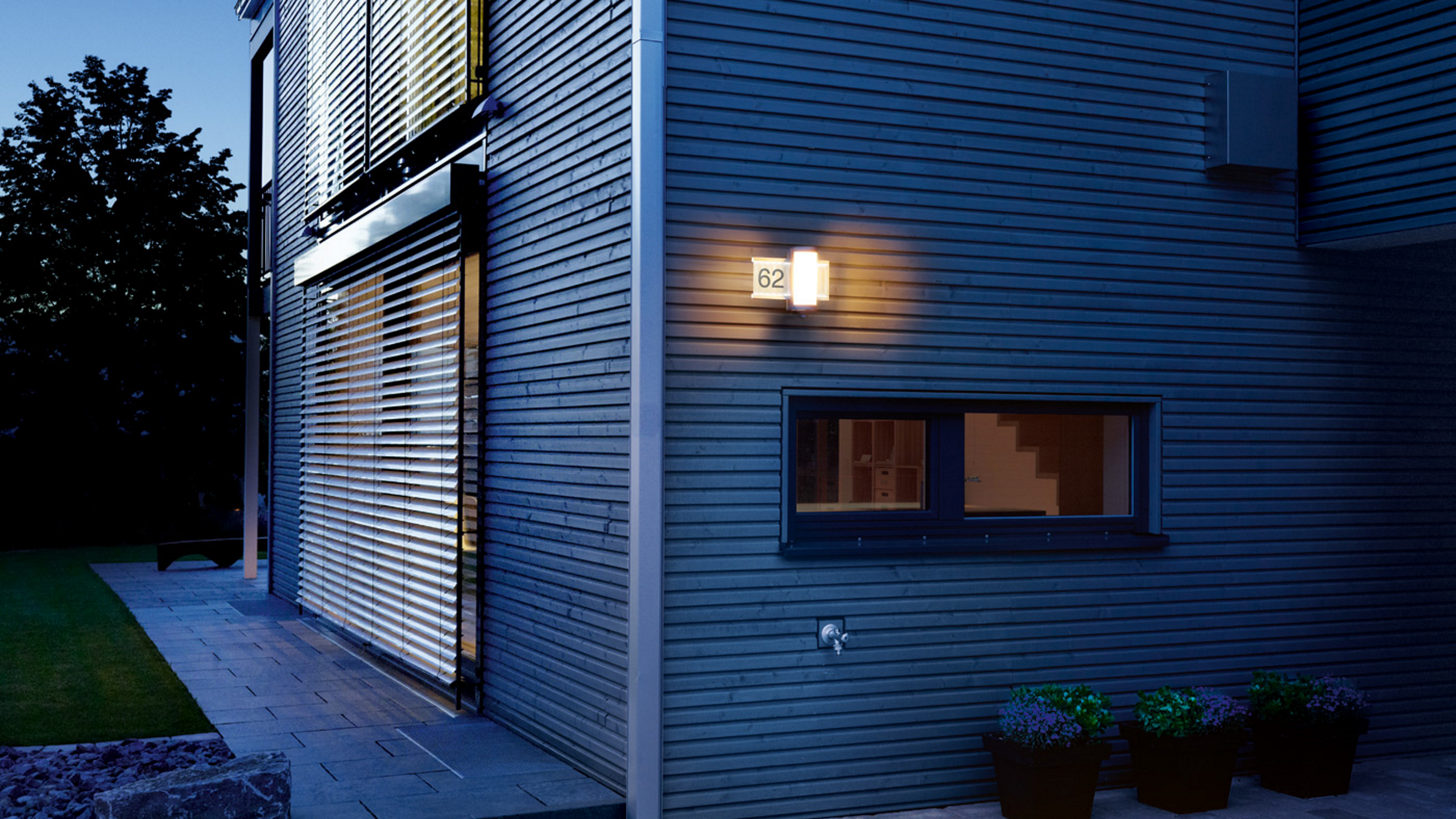

Number with a radiant future. Designer sensor-switched outdoor light L 625 LED, ideal for building entrances and building fronts, 10 W STEINEL LED light system, 360° angle of coverage, reach up to 7 m all round, aluminium trim panel, removable mini-sensor with 4 programmes geared to practical needs, including soft light start.

Including STEINEL LED system
Intelligent soft light start
Optional basic lighting level 10 %
Including sheet of self-adhesive house numbers
Sensor with 4 intelligent programmes
High-quality aluminium
UV resistant material

Dimensions

Dimensions L × W × H 122 x 326 x 269 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 10 W

Power detail 1 W LED house number illumination

Own consumption 0,8 W

Sensor technology

Max. mounting height 2,50 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 360 °

Opening angle 90 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability No

Radial range r = 2 m (13 m²)

Tangential range r = 7 m (154 m²)

Mounting height 1,80 – 2,50 m

Optimal mounting height 2 m

Connectivity

Networking Yes

Networking via Cable

Slave mode adjustable No

Lighting technology

Measured luminous flux 360° 655 lm

Efficiency 66 lm/W

Colour temperature 3000 K

LED colour deviation SDCM3

Colour rendering index 80-89

With illuminant Yes, STEINEL LED system

Illuminant LED cannot be replaced

Base without

LED cooling system Passive Thermo Control

Soft light start Yes

Continuous light selectable, 4h

Lifetime

LED lifetime max. °C 50000 h

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Time setting 5 sec – 15 min

Base light function Yes

Functions 4 programme settings geared to practical needs, can be selected on removable sensor module

Settings via Potentiometers

With remote control No

Base light function in percent 25 %

Base light function percent from 25 %

Housing & material

Impact resistance IK03

Protection class (IP) IP44

Protection class I

Ambient temperature -20 – 50 °C

Housing material Aluminium

Cover material Glass opal

Cover material (scope of delivery) shrouds

Mounting location wall

Application location Outdoors

Mounting type Surface wiring

Application room courtyard & driveway front door outdoors

Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 3 years

House number sheet included Yes

Technical drawing

Sensor detection range

Wiring diagram 1

Master circuit diagram

Wiring diagram 2

Master/master interconnection circuit diagram

Data sheet User manual Declaration of conformity

Replacement mini-sensor Anthracite

Item no. 009014

LED Replacement panel for L 270 / L 625 / L 665

Item no. 006310
