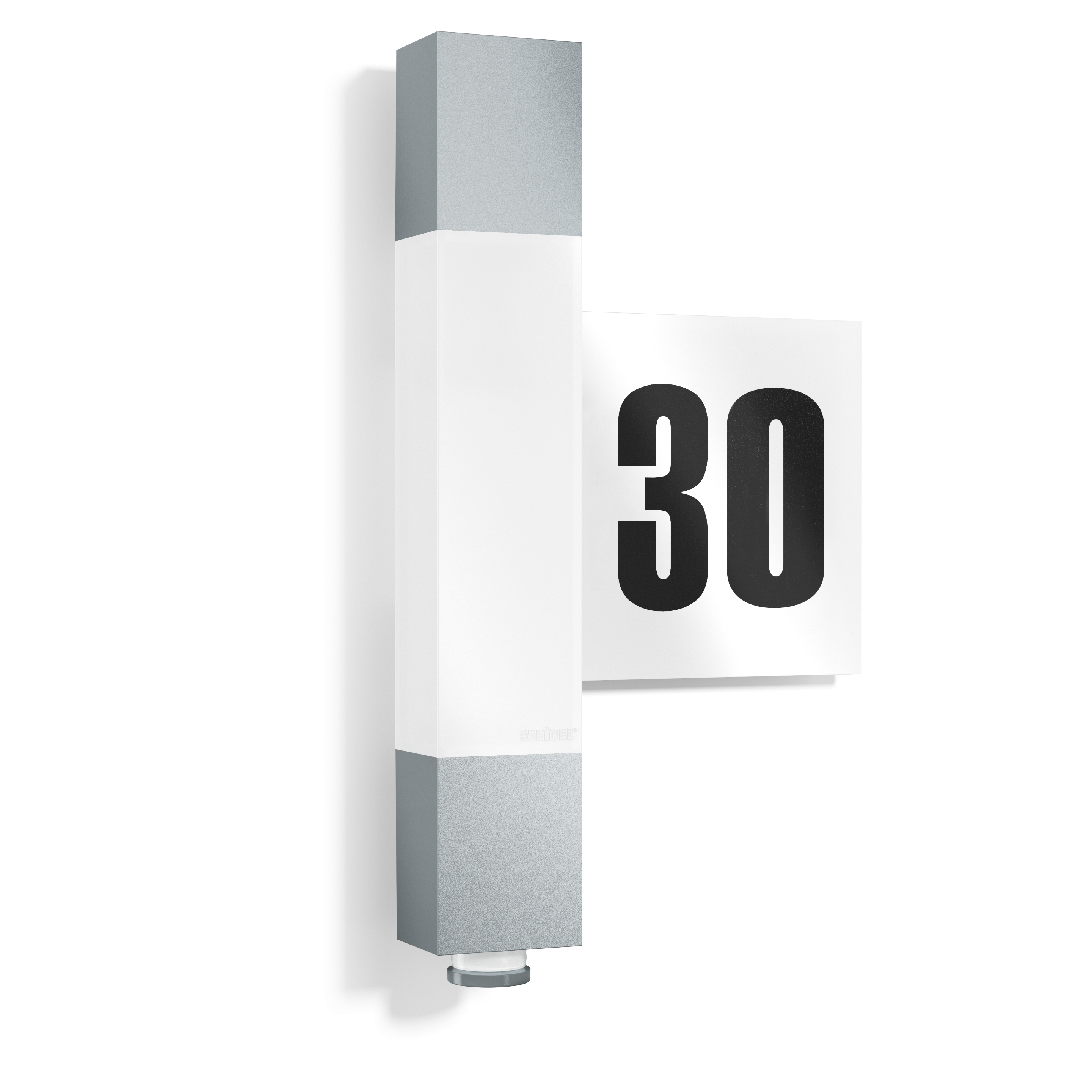

Nevalux L 630 LED Silver

Nevalux L 630 LED Silver

ELDAS® no. 924 361 002 · EAN-No. 4007841 020385

Technical data Illustrations Downloads Accessories
Nevalux

Nevalux L 630 LED Silver

ELDAS® no. 924 361 002

EAN-No. 4007841 020385

This product is being replaced by a successor product.

Go to successor product · L 910 S Silver (576219)

Perfect in form and function. L 630 LED sensor-switched outdoor light with removable infrared mini sensor (360° angle of coverage, 8 m reach) and illuminated house number panel, for mounting on the left or right. Slimline design, intelligent functionality, optimum outdoor illumination (663 lm). With soft light start, basic light level, night economy mode and Nightmatic function. Power consumption of only 8,2 W.

  • Including STEINEL LED system
  • Optional basic lighting level 10 %
  • Sensor with 4 intelligent programmes
  • UV-resistant plastic
  • Impact-resistant material rated to IK07
  • Including sheet of self-adhesive house numbers
  • 4-hour manual override (optional)

Identification

Variant Silver

Variants

Luminous flux 663 lm

Dimensions

Dimensions L × W × H 364 x 211 x 65 mm

Electrical

Mains connection 220 – 240 V , 50 / 50 Hz
Power 8,2 W

Sensor technology

Sensor technology passive infrared
With motion detector Yes
Detection angle 360 °
Sneak-under protection Yes
Segment-by-segment masking Yes
Electronic scalability No
Mechanical scalability No
Tangential range r = 8 m (201 m²)

Lighting technology

Colour temperature 3000 K
LED colour deviation SDCM3
Colour rendering index 80-89
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base without
LED cooling system Passive Thermo Control
Soft light start Yes
Continuous light selectable, 4h
Luminous flux 663 lm

Lifetime

LED lifetime max. °C 50000 h
Luminous flux decline per LM80 L70B10

Settings

Twilight switch Yes
Twilight setting 2 – 2000 lx
Time setting 5 sec – 15 min

Housing & material

Impact resistance IK07
Protection class (IP) IP44
Protection class I
Ambient temperature -20 – 50 °C
Housing material Plastic
Cover material Plastic, opal

Scope of delivery & warranty

Manufacturer warranty 3 years
House number sheet included Yes

Sensor detection range

replacement mini-sensor Silver

replacement mini-sensor Silver

Item no. 009038
