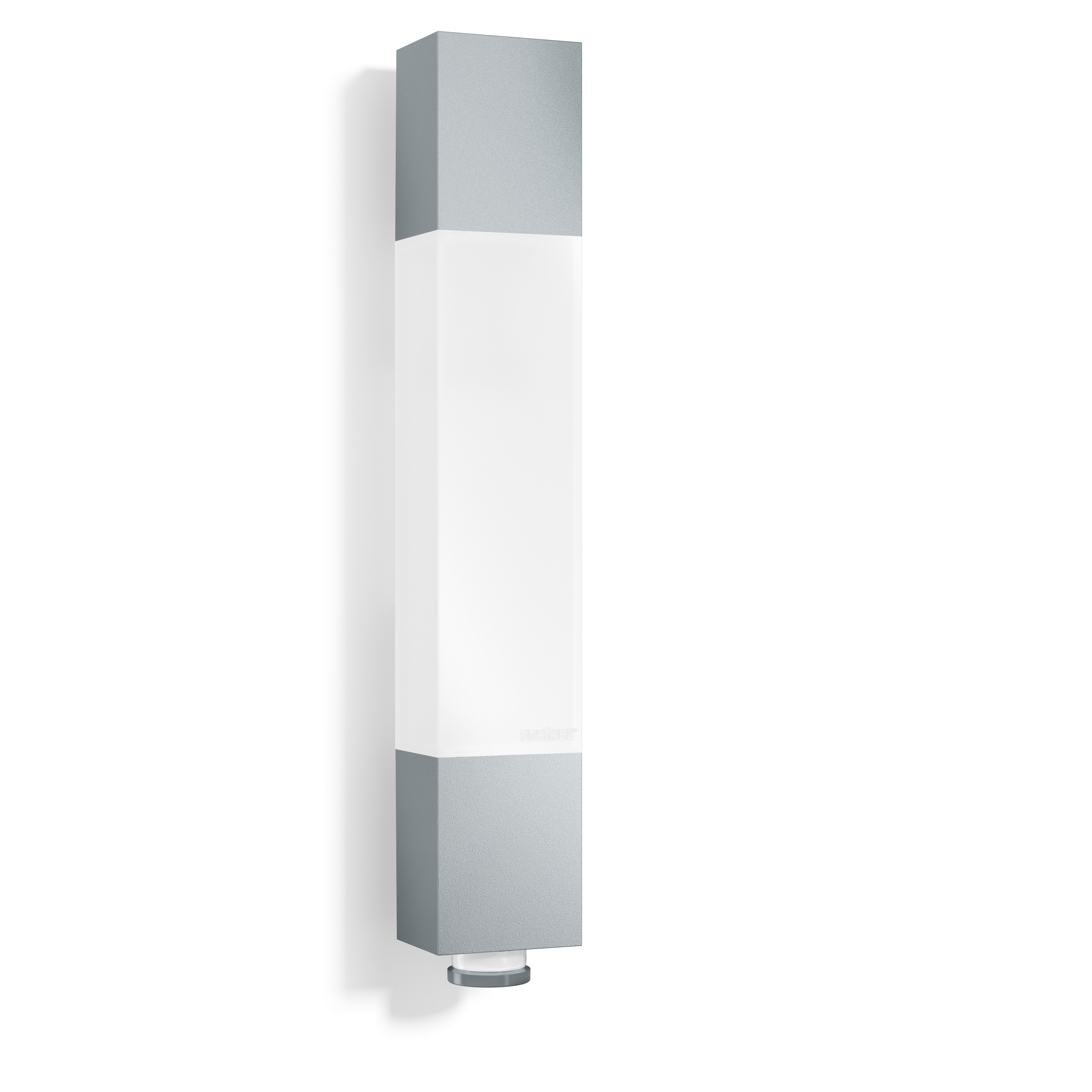

Nevalux L 631 LED Silver
ELDAS® no. 924 361 012
EAN-No. 4007841 020408
This product is being replaced by a successor product.
Go to successor product · L 910 S Silver (576219)Intelligent. Minimalist. Timeless. The energy-efficient L 631 LED sensor-switched outdoor light with an output of 663 lm and reach of 8 m comes in a slimline enclosure and scores with the latest LED technology. Infrared mini sensor covering 360°. Further features: soft light start, basic light level, night economy mode and Nightmatic. In silver or anthracite.
- Including STEINEL LED system
- Optional basic lighting level 10 %
- Sensor with 4 intelligent programmes
- UV-resistant plastic
- Impact-resistant material rated to IK07
- 4-hour manual override (optional)
Identification
Variant
Silver
Variants
Luminous flux
663 lm
Dimensions
Dimensions L × W × H
364 x 61 x 65 mm
Electrical
Mains connection
220 – 240 V , 50 / 50 Hz
Power
8,2 W
Sensor technology
Sensor technology
passive infrared
With motion detector
Yes
Detection angle
360 °
Opening angle
90 °
Sneak-under protection
Yes
Segment-by-segment masking
Yes
Electronic scalability
No
Mechanical scalability
No
Tangential range
r = 8 m (201 m²)
Lighting technology
Colour temperature
3000 K
LED colour deviation
SDCM3
Colour rendering index
80-89
With illuminant
Yes, STEINEL LED system
Illuminant
LED cannot be replaced
Base
without
LED cooling system
Passive Thermo Control
Soft light start
Yes
Continuous light
selectable, 4h
Luminous flux
663 lm
Lifetime
LED lifetime max. °C
50000 h
Luminous flux decline per LM80
L70B10
Settings
Twilight switch
Yes
Twilight setting
2 – 2000 lx
Time setting
5 sec – 15 min
Housing & material
Impact resistance
IK07
Protection class (IP)
IP44
Protection class
I
Ambient temperature
-20 – 50 °C
Housing material
Plastic
Cover material
Plastic, opal
Scope of delivery & warranty
Manufacturer warranty
3 years
