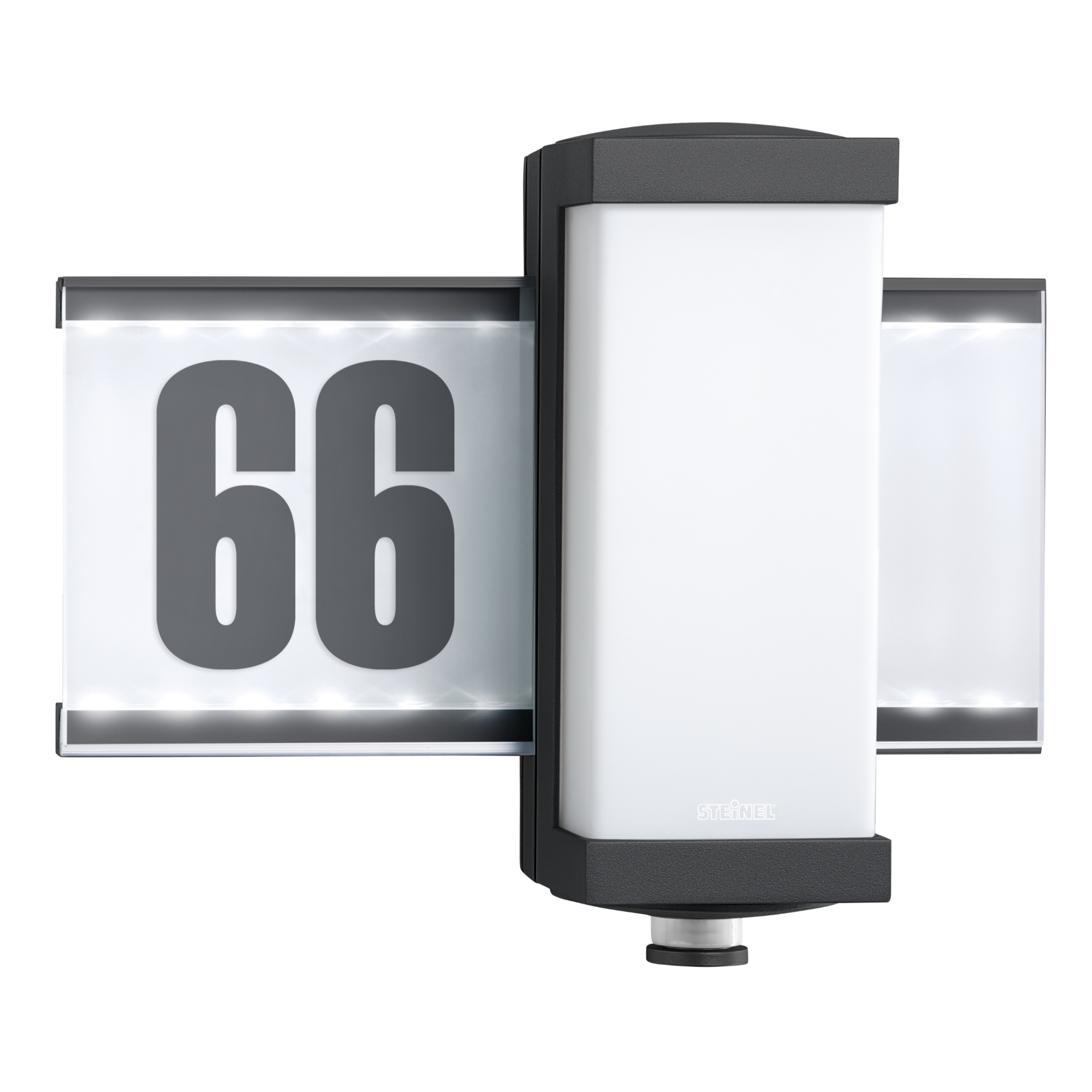

Nevalux L 665 S Anthracite

ELDAS® no. 941 200 249

EAN-No. 4007841 053949

Discontinued

This product is being discontinued and is available while stocks last. No successor product has been announced yet.

Cool looker. Designer sensor-switched outdoor light L 665 S, ideal for building walls and entrance areas, 10,4 W STEINEL LED light system, 360° angle of coverage, reach up to 7 m, basic light-level function and soft light start.

Including STEINEL LED system
Intelligent soft light start
Optional basic lighting level 10 %
Sensor with 4 intelligent programmes
High-quality aluminium
Including sheet of self-adhesive house numbers
Interconnectable by cable (K-line)
Panel can be moved to the left or right

Dimensions

Dimensions L × W × H 122 x 326 x 269 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz

Power 10,4 W

Power detail 1 W LED house number illumination

Sensor technology

Max. mounting height 2,50 m

Sensor technology passive infrared

With motion detector Yes

Detection angle 360 °

Sneak-under protection Yes

Segment-by-segment masking Yes

Electronic scalability No

Mechanical scalability No

Radial range r = 2 m (13 m²)

Tangential range r = 7 m (154 m²)

Mounting height 1,80 – 2,50 m

Optimal mounting height 2 m

Connectivity

Networking Yes

Networking via Cable

Slave mode adjustable No

Lighting technology

Measured luminous flux 360° 611 lm

Efficiency 59 lm/W

Colour temperature 3000 K

LED colour deviation SDCM3

Colour rendering index = 82

With illuminant Yes, STEINEL LED system

Illuminant LED cannot be replaced

Base without

LED cooling system Passive Thermo Control

Soft light start Yes

Continuous light selectable, 4h

Lifetime

LED lifetime L70B50 25°C > 60000 h

Average rated power supply lifetime at 25 °C > 60000 h

Settings

Twilight switch Yes

Twilight setting 2 – 1000 lx

Time setting 5 s – 15 Min.

Base light function Yes

Base light function time 10/30 min, all night

Functions 4 programme settings geared to practical needs, can be selected on removable sensor module

Settings via Potentiometers

With remote control No

Base light function in percent 10 %

Base light function percent from 10 %

Housing & material

Impact resistance IK07

Protection class (IP) IP44

Protection class I

Ambient temperature -20 – 50 °C

Housing material Aluminium

Cover material Plastic, opal

Cover material (scope of delivery) shrouds

Mounting location wall

Application location Outdoors

Mounting type Surface wiring

Material Aluminium

Application room courtyard & driveway front door outdoors

Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 5 years

House number sheet included Yes

Certificates & EPREL

EPREL category Surrounded product with integrated light source

Technical drawing

Lichtverteilungskurve

Sensor detection range

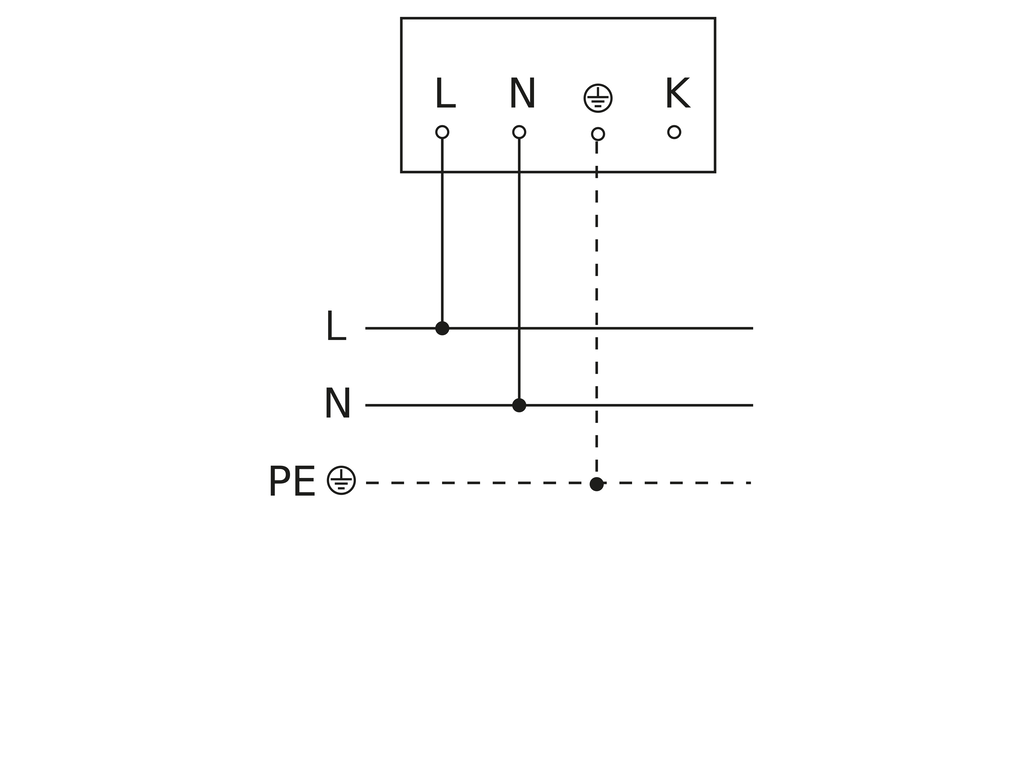

Wiring diagram 1

Master circuit diagram

Wiring diagram 2

Master/master interconnection circuit diagram

Data sheet User manual Declaration of conformity LDT file (light distribution)

Replacement mini-sensor Anthracite

Item no. 009014
