Nevalux L 710 N Anthracite

Nevalux L 710 N Anthracite

ELDAS® no. 941 200 099 · EAN-No. 4007841 053161

Technical data Illustrations Wiring diagrams Downloads
Nevalux

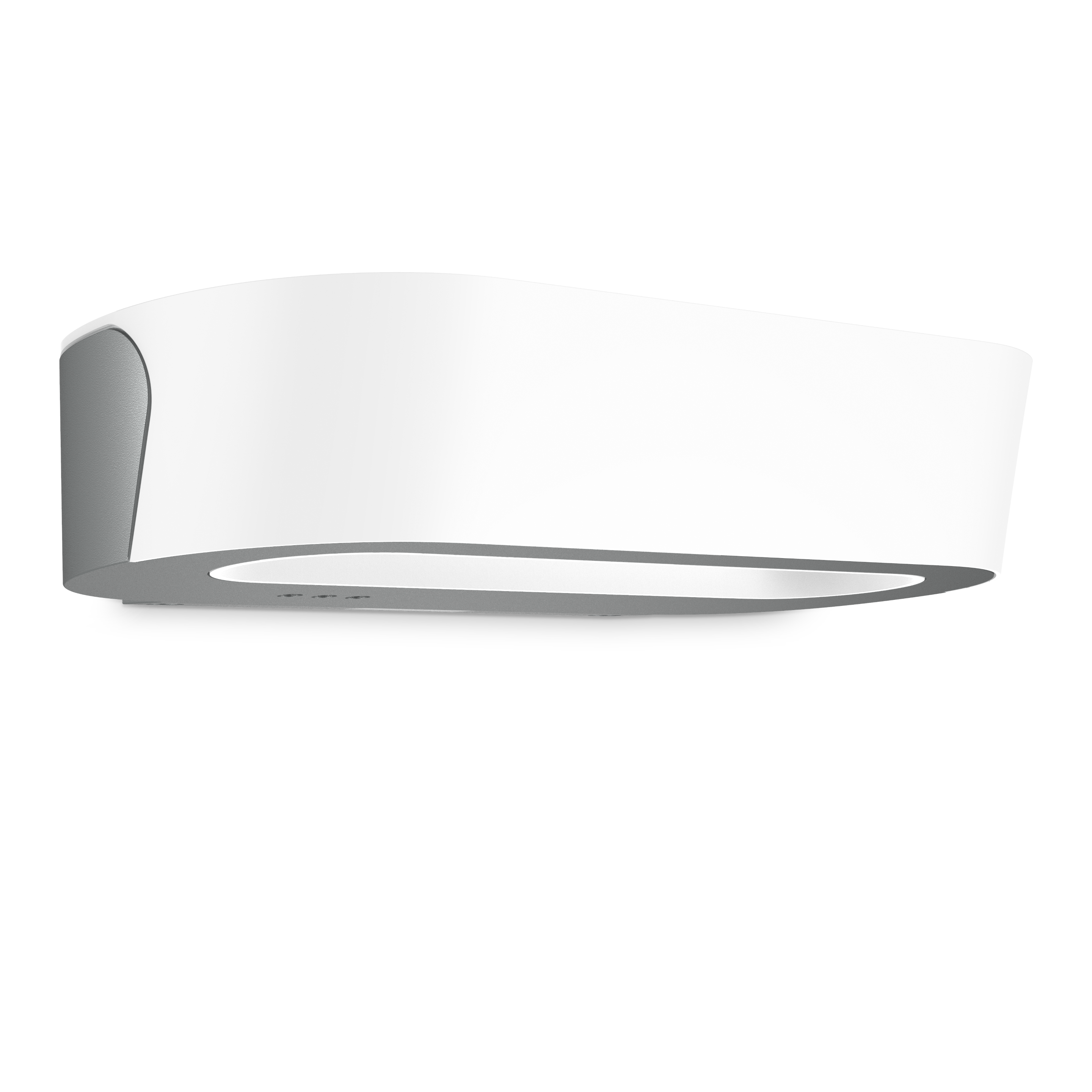

Nevalux L 710 N Anthracite

ELDAS® no. 941 200 099

EAN-No. 4007841 053161

Discontinued

This product is being discontinued and is available while stocks last. No successor product has been announced yet.

Price: Please log in to see prices

Beautiful light in pure form. Quite simply, the attractive outdoor light without motion detector always cuts a fine figure whether ON or OFF. The L 710 N is made of UV-resistant plastic and features a modern aluminium designer-style element. The warm-white light (3000 K) sets off building walls with absolute competence. With photo-cell controller, automatic lighting at night and optional night-economy mode. Available in anthracite.

  • Including STEINEL LED system
  • Intelligent soft light start
  • UV-resistant plastic
  • High-quality aluminium

Dimensions

Dimensions L × W × H 140 x 260 x 63 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 8,3 W

Sensor technology

Sensor technology Light sensor
With motion detector No
Sneak-under protection No
Segment-by-segment masking No
Electronic scalability No
Mechanical scalability No

Connectivity

Networking No
Slave mode adjustable No

Lighting technology

Measured luminous flux 360° 729 lm
Efficiency 88 lm/W
Colour temperature 3000 K
Colour rendering index = 82
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
Base without
LED cooling system Passive Thermo Control
Soft light start Yes

Lifetime

LED lifetime max. °C 50000 h
LED lifetime L70B50 25°C > 60000 h
Average rated power supply lifetime at 25 °C > 60000 h

Settings

Twilight switch Yes
Twilight setting 2 – 2000 lx
Base light function No
Functions Light sensor
Settings via Potentiometers
With remote control No
Twilight setting teach No

Housing & material

Impact resistance IK03
Protection class (IP) IP44
Protection class II
Ambient temperature -20 – 40 °C
Housing material Aluminium
Cover material Plastic, opal
Cover material (scope of delivery) sticker
Mounting location wall
Application location Outdoors
Mounting type Surface wiring
Material Plastic
Application room all round the building front door outdoors terrace / balcony
Colour Anthracite

Scope of delivery & warranty

Manufacturer warranty 3 years
House number sheet included No

Certificates & EPREL

EPREL category Surrounded product with integrated light source

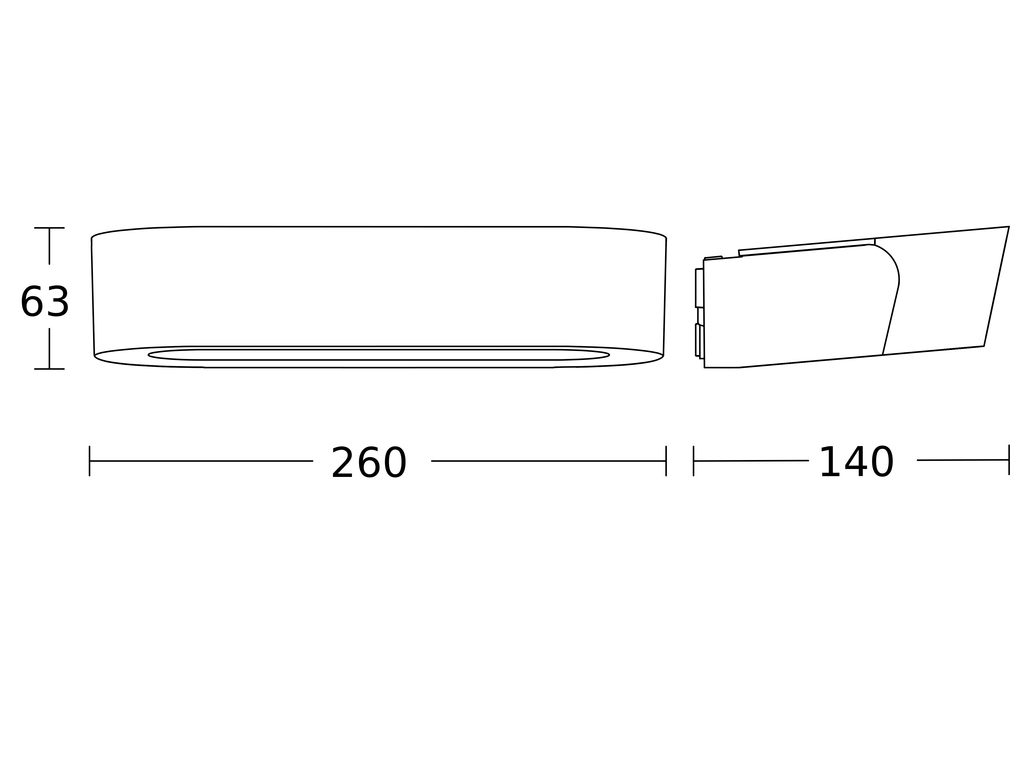

Technical drawing

Sensor detection range

Wiring diagram 1

Circuit diagram
