Nevalux L 710 S Anthracite

Nevalux L 710 S Anthracite

ELDAS® no. 941 200 119 · EAN-No. 4007841 053185

Technical data Illustrations Wiring diagrams Downloads
Nevalux

Nevalux L 710 S Anthracite

ELDAS® no. 941 200 119

EAN-No. 4007841 053185

Discontinued

This product is being discontinued and is available while stocks last. No successor product has been announced yet.

Price: Please log in to see prices

Luminous design at the height of the times. The L 710 S outdoor luminaire scores with its groundbreaking design. The futuristic shape of the luminaire in combination with the elegant light pattern creates a unique light image. The warm white light (3000 K) harmoniously rounds off the sculptural overall appearance. The L 710 S outdoor luminaire is equipped with an intelligent 360° infrared sensor and has four sensor programmes including night light functions and soft light start. In continuous light mode, the L 710 S shines for four hours. With the LN 710 S, a second version without motion detector is available. This version is equipped with a twilight switch and offers automatic lighting at night as well as an optional night economy mode.

  • Including STEINEL LED system
  • Intelligent soft light start
  • UV-resistant plastic
  • High-quality aluminium
  • Optional basic lighting level 10 %
  • 4-hour manual override (optional)
  • Sensor with 4 intelligent programmes

Dimensions

Dimensions L × W × H 140 x 260 x 77 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 8,3 W

Sensor technology

Max. mounting height 2,50 m
Sensor technology Passiv Infrarot
With motion detector Yes
Sneak-under protection Yes
Segment-by-segment masking Yes
Electronic scalability No
Mechanical scalability No
Radial range r = 2 m (13 m²)
Tangential range r = 8 m (201 m²)
Mounting height 1,80 – 2,50 m
Optimal mounting height 2 m

Connectivity

Networking Nein
Slave mode adjustable No

Lighting technology

Measured luminous flux 360° 729 lm
Colour temperature 3000 K
LED colour deviation SDCM3
With illuminant Ja, STEINEL LED-System
Illuminant LED nicht austauschbar
Base Ohne
LED cooling system Passive Thermo Control
Soft light start Yes
Continuous light schaltbar, 4 h

Lifetime

LED lifetime max. °C 50000 Std
LED lifetime L70B50 25°C > 60000 Std

Settings

Twilight switch Ja
Twilight setting 2 – 2000 lx
Time setting 5 s – 15 Min.
Base light function Ja
Functions 4 praxisorientierte Programmeinstellungen am herausnehmbaren Sensor-Modul
Settings via Potis
With remote control No
Twilight setting teach No
Base light function in percent 10 %
Base light function percent from 10

Housing & material

Impact resistance IK03
Protection class (IP) IP44
Protection class II
Ambient temperature -20 – 40 °C
Housing material Aluminium
Cover material Kunststoff opal
Cover material (scope of delivery) Aufkleber
Mounting location Wand
Application location Außenbereich
Mounting type Aufputz
Material Kunststoff
Application room Außenbereich Hauseingang Rund ums Haus Terrasse / Balkon
Colour Anthrazit

Scope of delivery & warranty

Manufacturer warranty 3 Jahre

Certificates & EPREL

EPREL category Umgebenes Produkt mit integrierter Lichtquelle

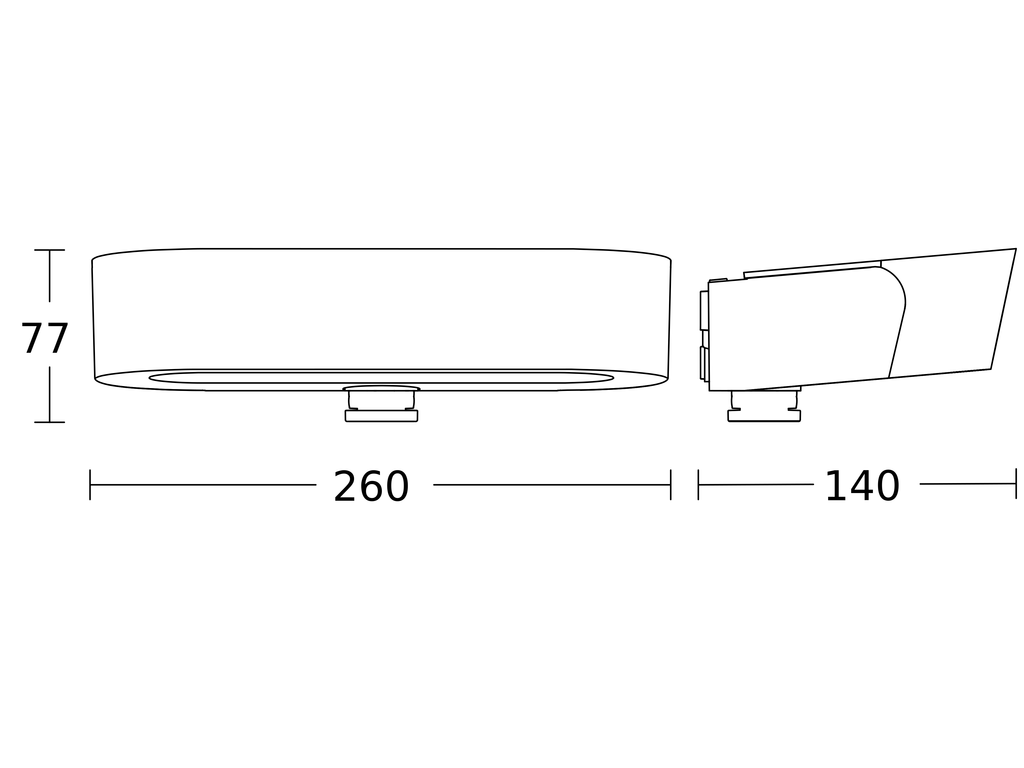

Technical drawing

Sensor detection range

Wiring diagram 1

Circuit diagram
