Nevalux L 810 LED iHF Z-Wave Silver

Nevalux L 810 LED iHF Z-Wave Silver

EAN-No. 4007841 029869

Technical data Illustrations Downloads Accessories
Nevalux

Nevalux L 810 LED iHF Z-Wave Silver

EAN-No. 4007841 029869

Discontinued

This product is being discontinued and is available while stocks last. No successor product has been announced yet.

Price: Please log in to see prices

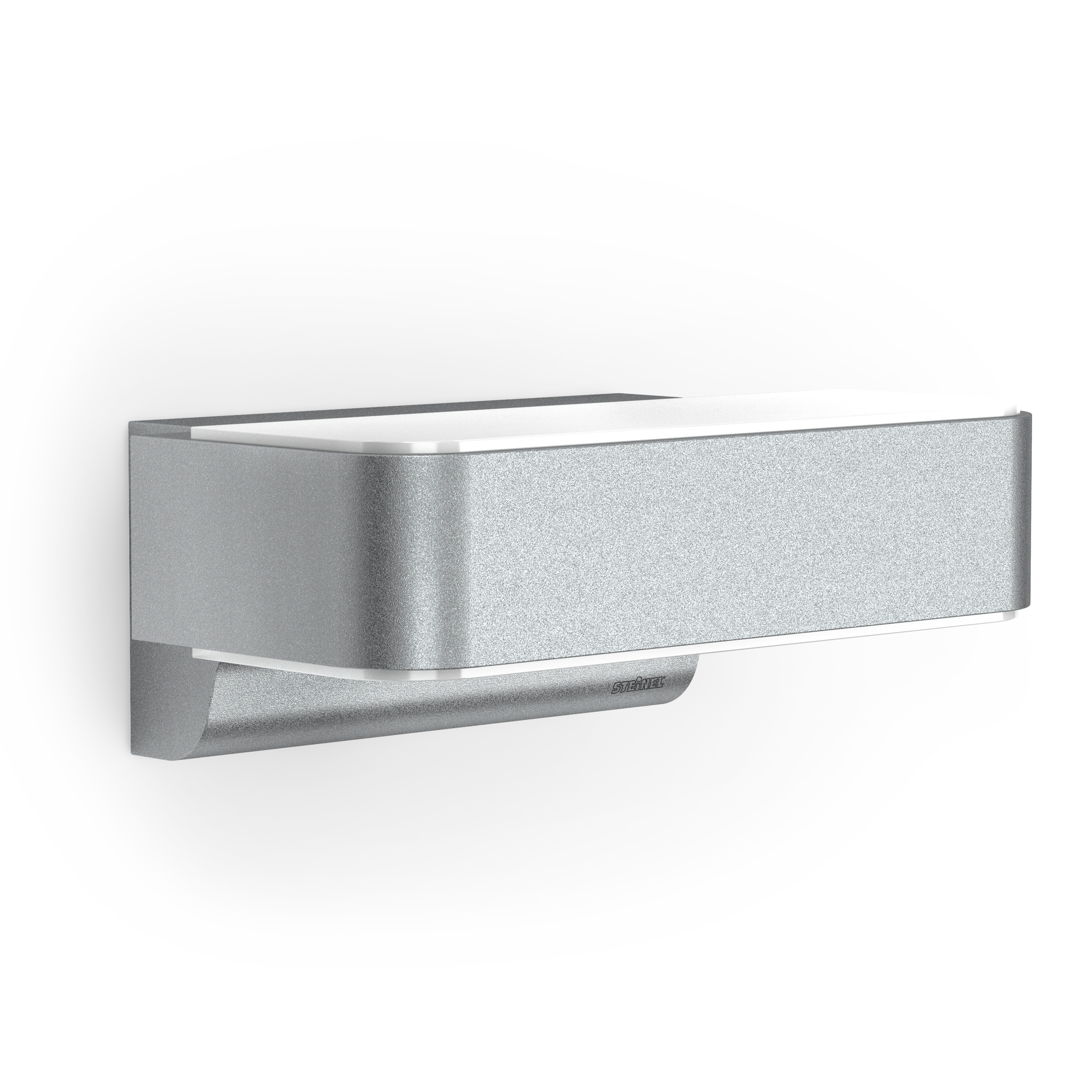

The most modern outdoor light in the world. Designer sensor-switched outdoor light L 810 LED iHF Z-Wave, can be integrated into the Smart Friends system or any other Z-Wave network, with invisible high-frequency sensor, ideal for building entrances and fronts of buildings, 12 W STEINEL LED lighting system, 858 lm, 160° coverage angle, reach from 1 - 5 m, for stylish up and downlighting, includes soft light start.

  • Including STEINEL LED system
  • Concealed iHF sensor
  • Intelligent soft light start
  • Optional basic lighting level 10 %
  • High-quality aluminium
  • 4-hour manual override (optional)

Identification

Variant Silver

Variants

Luminous flux 858 lm

Dimensions

Dimensions L × W × H 145 x 230 x 91 mm

Electrical

Mains connection 220 – 240 V , 50 / 60 Hz
Power 12 W

Sensor technology

Sensor technology iHF (intelligent high-frequency technology)
Transmission power < 1 mW
Detection angle 160 °
Sneak-under protection Yes
Electronic scalability Yes
Mechanical scalability No
Radial range r = 5 m (35 m²)
Tangential range r = 5 m (35 m²)
Transmission range Up to 100 m in the open, 30 m indoors

Lighting technology

Efficiency 71,5 lm/W
Colour temperature 3000 K
LED colour deviation SDCM3
Colour rendering index 80-89
With illuminant Yes, STEINEL LED system
Illuminant LED cannot be replaced
LED cooling system Active and Passive Thermo Control
Soft light start Yes
Continuous light selectable, 4h
Luminous flux 858 lm

Lifetime

LED lifetime max. °C 50000 h
Luminous flux decline per LM80 L70B10

Settings

Twilight setting 2 – 1000 lx
Time setting 5 sec – 15 min

Housing & material

Protection class (IP) IP44
Protection class II
Housing material Aluminium
Cover material Plastic, opal

Scope of delivery & warranty

Manufacturer warranty 3 years
