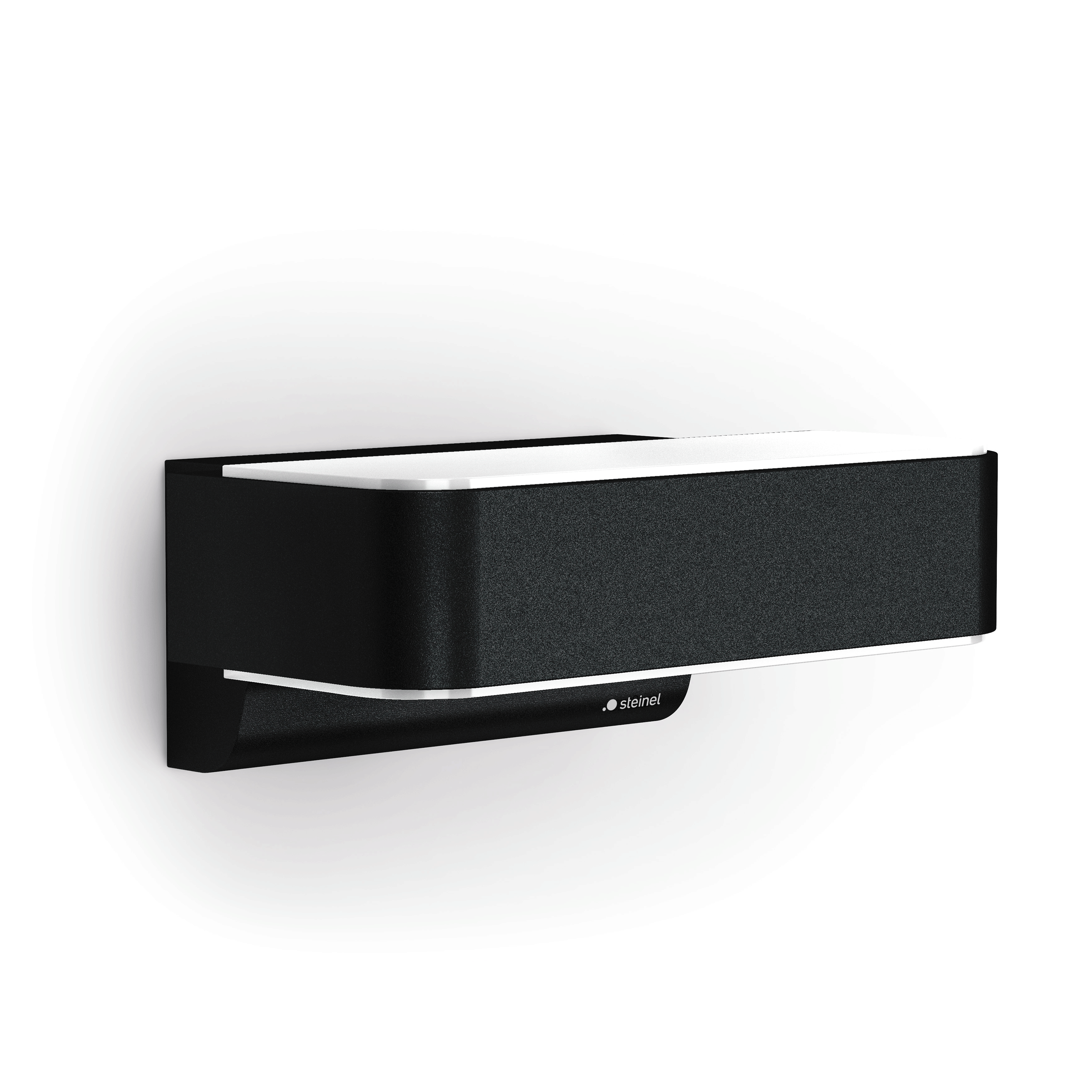

The most modern outdoor light in the world. Designer sensor-switched outdoor light L 810 S with invisible high-frequency sensor, ideal for building entrances and fronts of buildings, 9,8 W STEINEL LED lighting system, 679 lm, 160° coverage angle, reach from 1 - 5 m, for stylish up and downlighting, includes soft light start and optional manual override for 4 hours.
- Including STEINEL LED system
- Concealed iHF sensor
- Intelligent soft light start
- Optional basic lighting level 10 %
- High-quality aluminium
- 4-hour manual override (optional)
Dimensions
Dimensions L × W × H
146 x 230 x 88 mm
Electrical
Mains connection
220 – 240 V / 50 – 60 Hz
Power
9,8 W
Sensor technology
Max. mounting height
2,50 m
Sensor technology
iHF (Intelligente Hochfrequenz-Technik)
Transmission power
< 1 mW
With motion detector
Yes
Sneak-under protection
No
Segment-by-segment masking
No
Electronic scalability
Yes
Mechanical scalability
No
Radial range
r = 5 m (35 m²)
Tangential range
r = 5 m (35 m²)
Mounting height
1,80 – 2,50 m
Optimal mounting height
2 m
Connectivity
Networking
Nein
Slave mode adjustable
Yes
Lighting technology
Measured luminous flux 360°
679 lm
Colour temperature
3000 K
With illuminant
Ja, LED-Leuchtmittel
Illuminant
LED nicht austauschbar
Base
Ohne
LED cooling system
Active & Passive Thermo Control
Soft light start
Yes
Continuous light
schaltbar, 4 h
Lifetime
LED lifetime L70B50 25°C
> 60000 Std
Settings
Twilight switch
Ja
Twilight setting
2 – 2000 lx
Time setting
5 s – 15 Min.
Base light function
Ja
Base light function time
10/30 Min., ganze Nacht
Functions
Bewegungssensor
Settings via
Potis
With remote control
No
Base light function in percent
10 %
Base light function percent from
10
Housing & material
Impact resistance
IK03
Protection class (IP)
IP44
Protection class
II
Ambient temperature
von -20 bis 40 °C
Housing material
Aluminium
Cover material
Kunststoff opal
Mounting location
Wand
Application location
Außenbereich
Mounting type
Aufputz
Application room
Garten
Hauseingang
Hof & Einfahrt
Rund ums Haus
Terrasse / Balkon
Colour
Schwarz
Scope of delivery & warranty
Manufacturer warranty
3 Jahre
House number sheet included
No
Certificates & EPREL
EPREL category
Umgebenes Produkt mit integrierter Lichtquelle

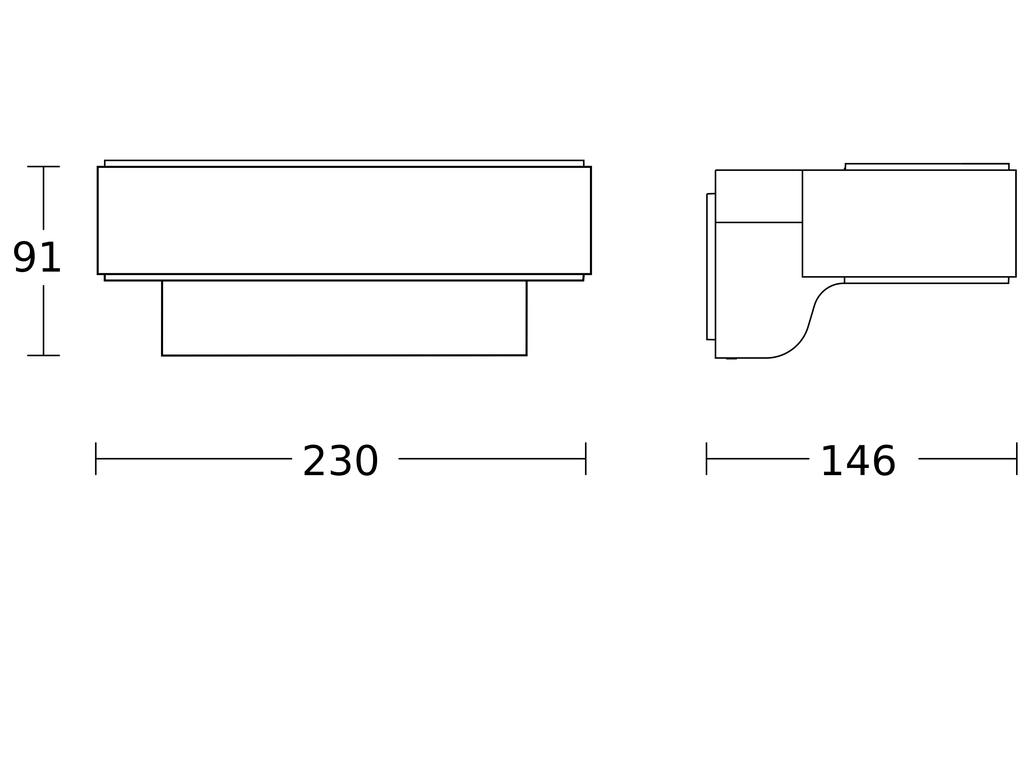

Technical drawing
Sensor detection range
Wiring diagram 1
Circuit diagram
