Nevalux L 820 S Silver

Nevalux L 820 S Silver

ELDAS® no. 941 303 809 · EAN-No. 4007841 671327

Technical data Illustrations Wiring diagrams Downloads
Nevalux

Nevalux L 820 S Silver

ELDAS® no. 941 303 809

EAN-No. 4007841 671327

This product is being replaced by a successor product.

Go to successor product · L 820 SC Silver (087579)

The most modern outdoor light in the world. Designer sensor-switched outdoor light L 820 S with invisible high-frequency sensor, ideal for building entrances and fronts of buildings, 9,8 W STEINEL LED lighting system, 679 lm, 160° coverage angle, reach from 1 - 5 m, for stylish up and downlighting with house number panel, includes soft light start and optional manual override for 4 hours.

  • Including STEINEL LED system
  • Concealed iHF sensor
  • Intelligent soft light start
  • Optional basic lighting level 10 %
  • High-quality aluminium
  • Including sheet of self-adhesive house numbers
  • 4-hour manual override (optional)

Dimensions

Dimensions L × W × H 145 x 230 x 260 mm

Electrical

Mains connection 220 – 240 V / 50 – 60 Hz
Power 9,8 W

Sensor technology

Max. mounting height 2,50 m
Sensor technology iHF (Intelligente Hochfrequenz-Technik)
Transmission power < 1 mW
With motion detector Yes
Sneak-under protection No
Segment-by-segment masking No
Electronic scalability Yes
Mechanical scalability No
Radial range r = 5 m (35 m²)
Tangential range r = 5 m (35 m²)
Mounting height 1,80 – 2,50 m
Optimal mounting height 2 m

Connectivity

Networking Nein
Slave mode adjustable Yes

Lighting technology

Measured luminous flux 360° 679 lm
Colour temperature 3000 K
With illuminant Ja, STEINEL LED-System
Illuminant LED nicht austauschbar
Base Ohne
LED cooling system Active & Passive Thermo Control
Soft light start Yes
Continuous light schaltbar, 4 h

Lifetime

LED lifetime L70B50 25°C > 60000 Std

Settings

Twilight switch Ja
Twilight setting 2 – 2000 lx
Time setting 5 s – 15 Min.
Base light function Ja
Base light function time 10/30 Min., ganze Nacht
Functions Bewegungssensor
Settings via Potis
With remote control No
Base light function in percent 10 %
Base light function percent from 10

Housing & material

Impact resistance IK03
Protection class (IP) IP44
Protection class II
Ambient temperature -20 – 40 °C
Housing material Aluminium
Cover material Kunststoff opal
Mounting location Wand
Application location Außenbereich
Mounting type Aufputz
Application room GartenHauseingangHof & EinfahrtRund ums HausTerrasse / Balkon
Colour Silber

Scope of delivery & warranty

Manufacturer warranty 3 Jahre
House number sheet included Yes

Certificates & EPREL

EPREL category Umgebenes Produkt mit integrierter Lichtquelle

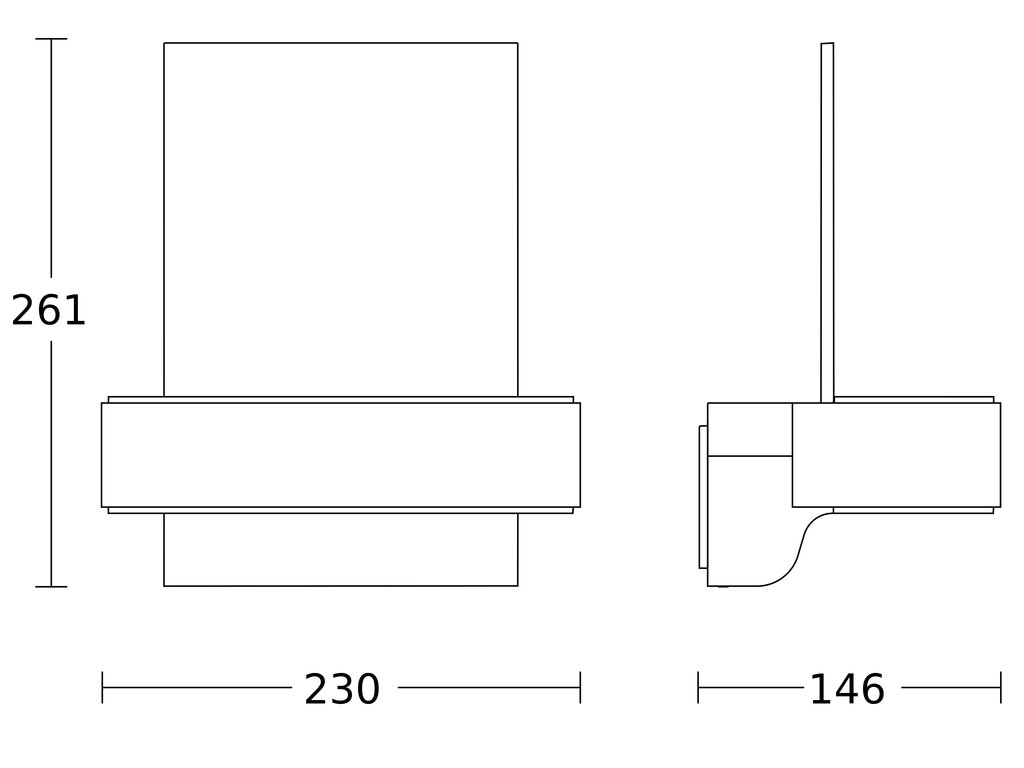

Technical drawing

Sensor detection range

Wiring diagram 1

Circuit diagram
